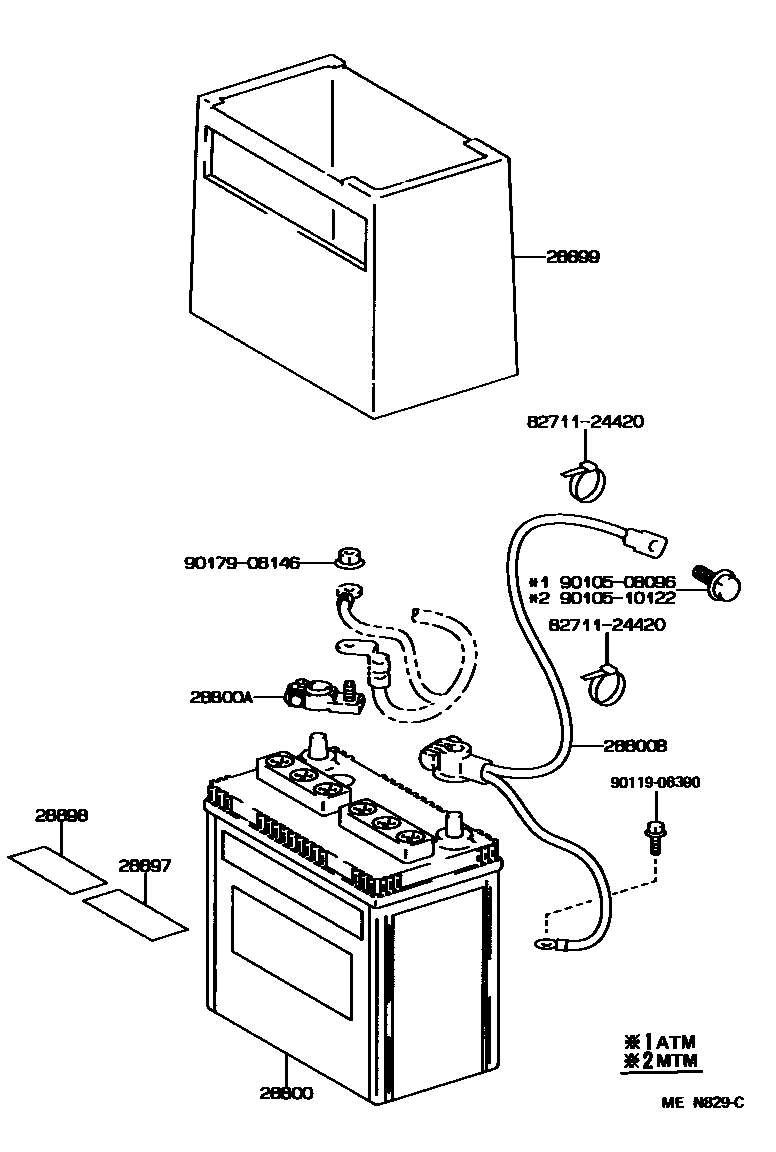

Toyota CELICA — BATTERY & BATTERY CABLE

28800BATTERY

main28800-31021i198911-199108

32C24L

main28800-31031i198909-198911

32C24L

main28800-43250i199109-199210

55D23L

main28800-43261i199210-199309

55D23L

main28800-74150i199109-199210

75D26L

main28800-74151i199210-199309

75D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i198909-199309

28800BCABLE, BATTERY TO GROUND

main82123-20120i198909-199108

main82123-20121i199108-199309

main82123-20180i198909-199108

main82123-20181i199109-199309

28897PLATE, BATTERY CAUTION

main28897-26010i198909-199108

main28897-38010i198909-199309

28898PLATE, BATTERY

main28898-26010i198909-199309

28899INSULATOR, BATTERY

main28899-74070i198909-199108

main28899-74080i198909-199108

W(32C24L BATTERY)

main28899-74090i199109-199309

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

11 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota CELICA

This section contains 11 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, PLATE, BATTERY CAUTION, PLATE, BATTERY.
