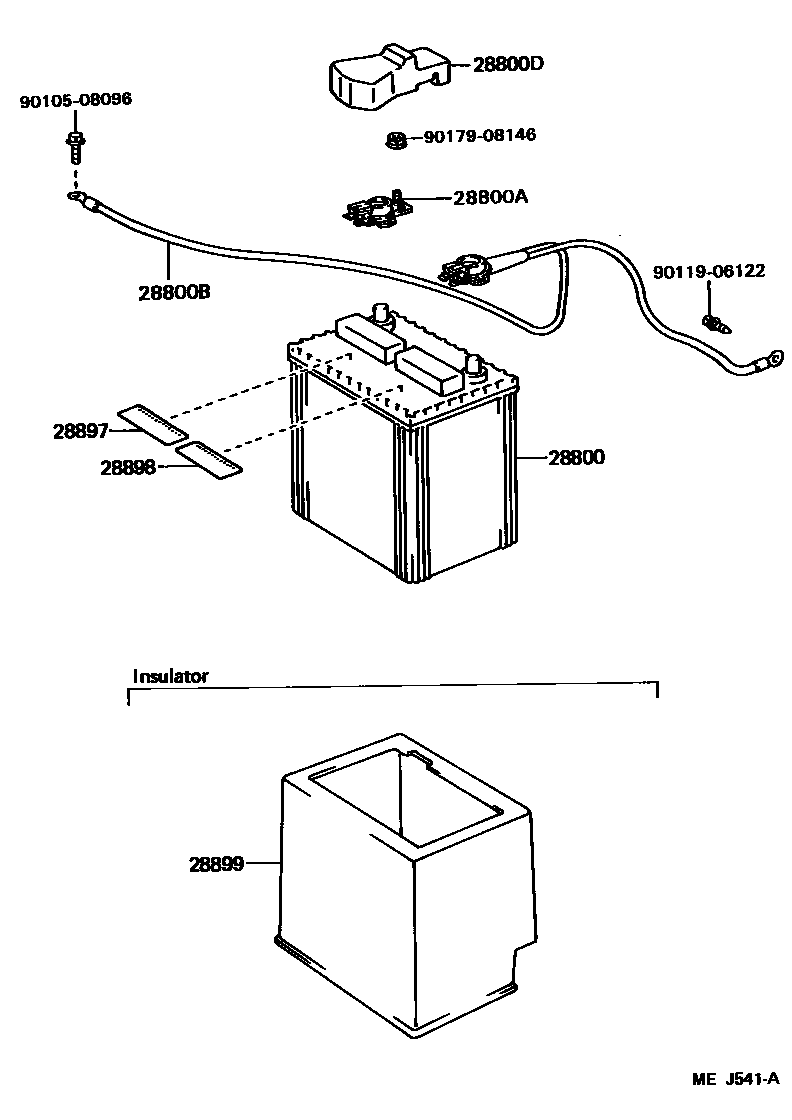

Toyota CELICA — BATTERY & BATTERY CABLE
28800BATTERY
32C24L,KOBE
32C24L,GS
55D23L
28800ATERMINAL, BATTERY POSITIVE
28800BCABLE, BATTERY TO GROUND
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
28897PLATE, BATTERY CAUTION
28898PLATE, BATTERY
28899INSULATOR, BATTERY
9010508096
main90105-08096
9011906122
main90119-06122
9017908146
main90179-08146
10 parts on this diagram · 1 diagram in section
BATTERY & BATTERY CABLE for Toyota CELICA
This section contains 10 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota CELICA. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, COVER, CONNECTOR(FOR BATTERY TERMINAL), PLATE, BATTERY CAUTION.
