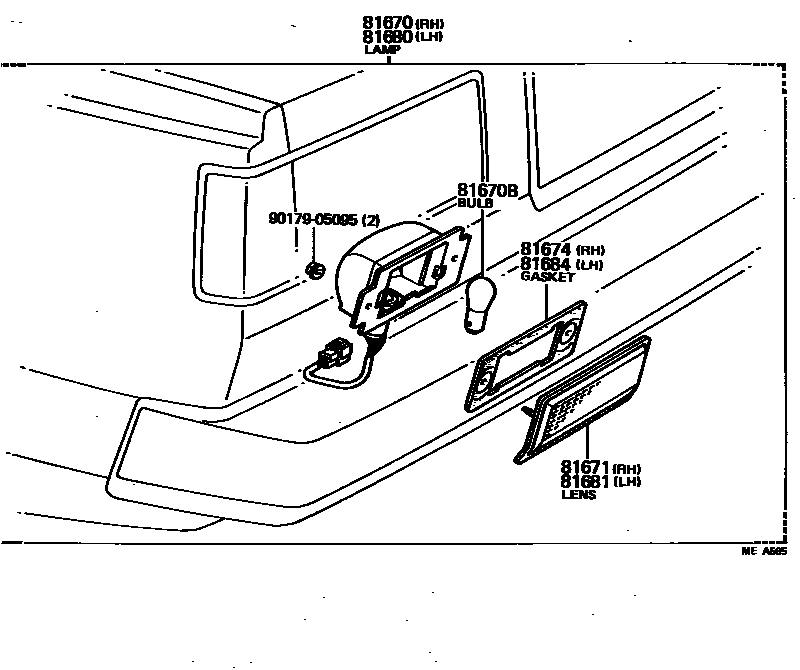

Toyota CELICA — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-19115i198108-198308

81670BBULB(FOR BACK-UP LAMP)

main99132-11270×2i198108-198308

12V 27W,12V 27W

81671LENS, BACK-UP LAMP, RH

main81671-14040i198108-198308

81674GASKET, BACK-UP LAMP BODY, RH

main81674-14040i198108-198308

81680LAMP ASSY, BACK UP, LH

main81670-19115i198108-198308

81681LENS, BACK-UP LAMP, LH

main81671-14040i198108-198308

81684GASKET, BACK UP LAMP BODY, LH

main81674-14040i198108-198308

9017905095

main90179-05095

8 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota CELICA

This section contains 8 genuine Toyota parts for the BACK UP LAMP system of the Toyota CELICA. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP BODY, RH, LAMP ASSY, BACK UP, LH.
