Toyota CELICA — BACK DOOR LOCK & HANDLE

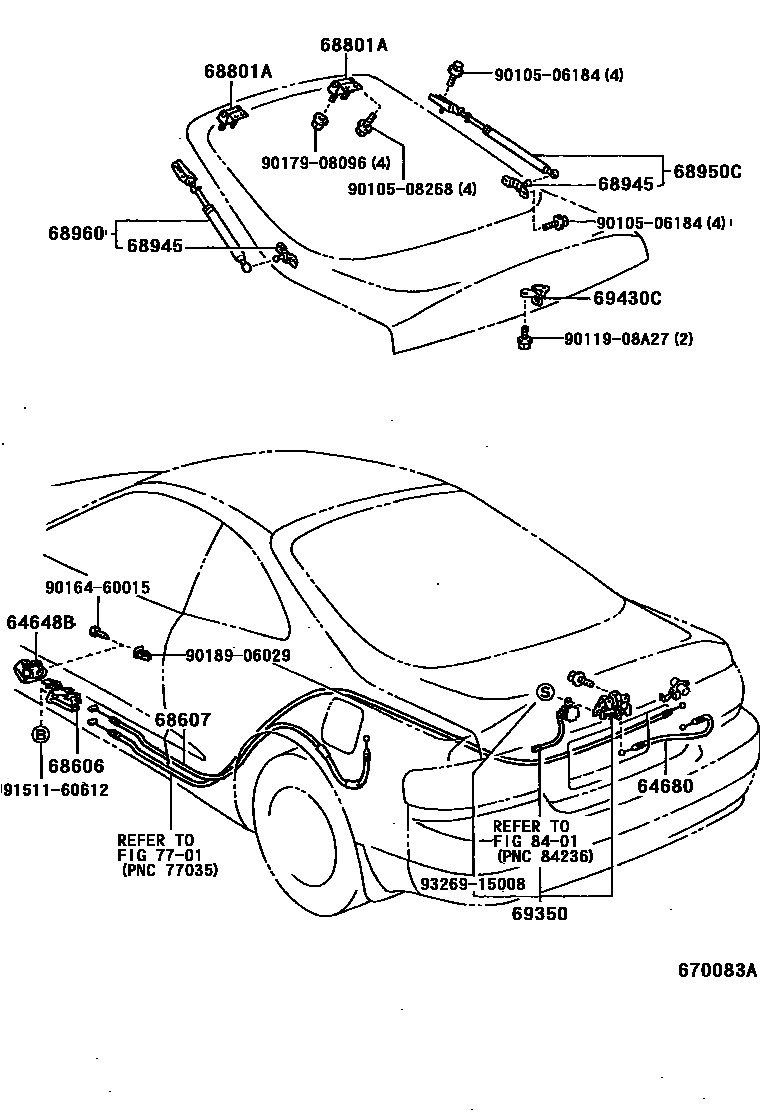

Parts diagram

64648BGROMMET, BACK DOOR LOCK OPENER

main64648-20010i199309

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-20170i199309-199712

main64680-20190i199712

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-20170i199309-199508

main64606-20171i199508

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20870i199309

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-20080×2i199309

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-20050×2i199309

68950CSTAY ASSY, BACK DOOR, RH

main68950-80026i199309-199802

W(REAR SPOILER & REAR WIPER)

main68950-80028i199309-199804

W(REAR WIPER)

main68950-80030i199309-199311

main68950-80067i199802

W(REAR SPOILER & REAR WIPER)

main68950-80068i199804

W(REAR WIPER)

main68950-80069i199804

68960STAY ASSY, BACK DOOR, LH

main68960-29895i199309-199802

W(REAR SPOILER & REAR WIPER)

main68960-80002i199309-199804

W(REAR WIPER)

main68960-80004×2i199311-199508

main68960-80019i199802

W(REAR SPOILER & REAR WIPER)

main68960-80020i199804

W(REAR WIPER)

main68960-80021i199804

69350LOCK ASSY, BACK DOOR

main69350-20080i199309-199712

main69350-20111i199712-199809

main69350-20112i199809

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-14100i199309-199712

main69430-14110i199712

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9010508268

main90105-08268

9011908A27

main90119-08A27

9016460015

main90164-60015

9017908096

main90179-08096

9018906029

main90189-06029

9151160612

main91511-60612

9326915008

main93269-15008

20 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota CELICA

This section contains 20 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: GROMMET, BACK DOOR LOCK OPENER, CABLE ASSY, BACK DOOR LOCK CONTROL, LEVER SUB-ASSY, BACK DOOR LOCK OPEN, CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE SUB-ASSY, BACK DOOR, UPPER.
