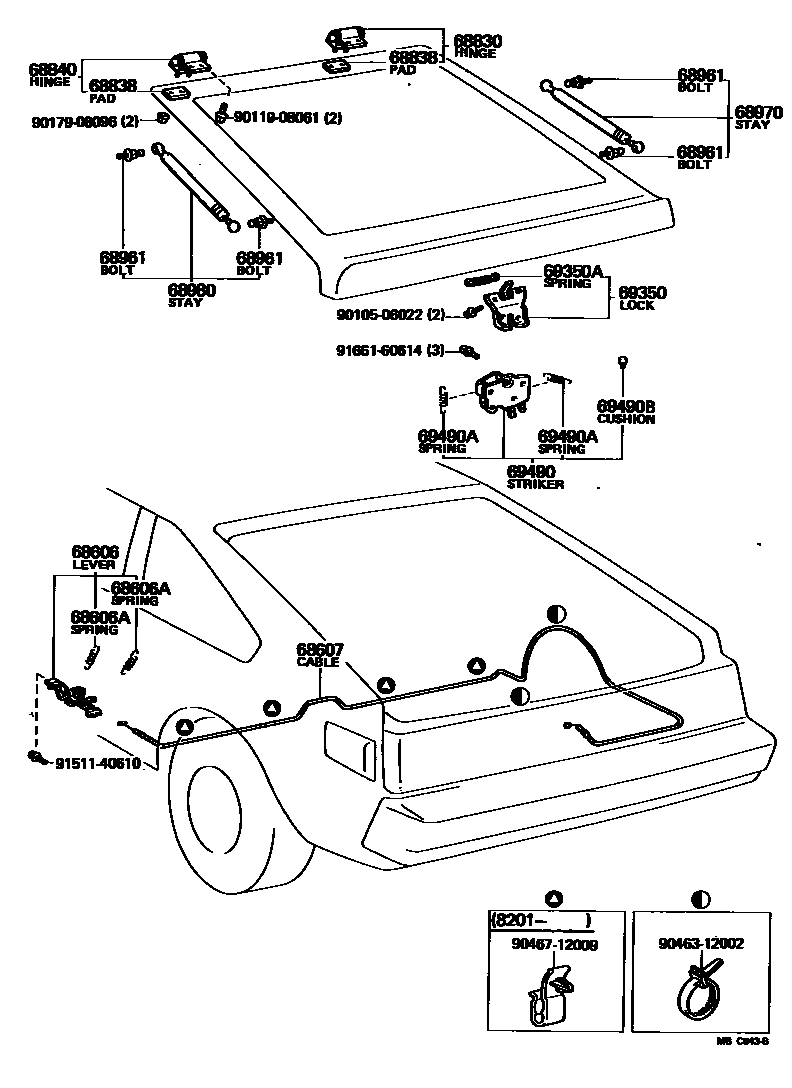

Toyota CELICA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
W/SPOILER
68980STAY ASSY, BACK DOOR
W/RR WIPER
W/SPOILER
69350LOCK ASSY, BACK DOOR
W/TRUNK OPENER
69350ASPRING(FOR BACK DOOR LOCK)
69490STRIKER ASSY, BACK DOOR LOCK
W/TRUNK OPENER
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
WD=0.7
WD=1.6
W/TRUNK OPENER,WD=0.8
69490BCUSHION(FOR BACK DOOR LOCK STRIKER)
9010506022
main90105-06022
9011908061
main90119-08061
9017908096
main90179-08096
9046312002
main90463-12002
9046712009
main90467-12009
9151140610
main91511-40610
9166160414
main91661-60414
21 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota CELICA
This section contains 21 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH, PAD, BACK DOOR HINGE, NO.1.
