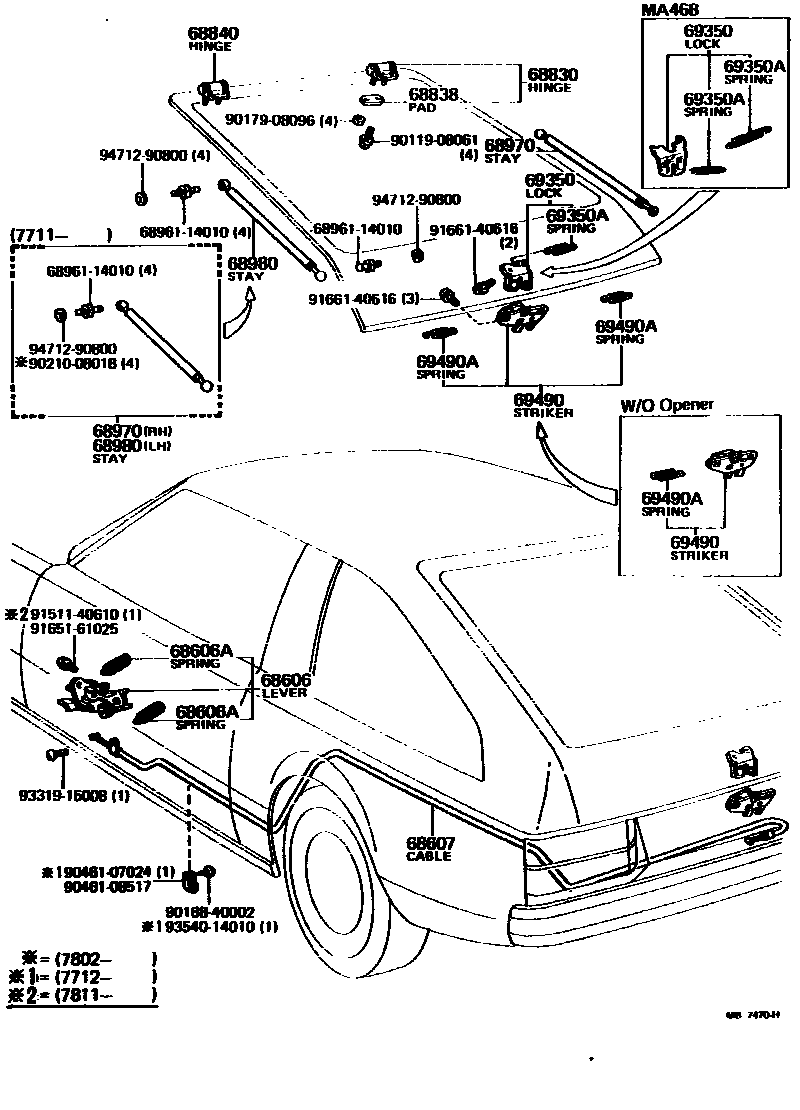

Toyota CELICA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68970STAY ASSY, BACK DOOR, RH
W/RR SPOILER
68980STAY ASSY, BACK DOOR
W/RR SPOILER
69350LOCK ASSY, BACK DOOR
W/TRUNK OPENER
W/TRUNK OPENER
69350ASPRING(FOR BACK DOOR LOCK)
WD=0.7
WD=1.2
69490STRIKER ASSY, BACK DOOR LOCK
W/TRUNK OPENER
W/TRUNK OPENER
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
WD=0.7
WD=0.8
6896114010BOLT, BACK DOOR STAY
main68961-14010
9011908061
main90119-08061
9016840002
main90168-40002
9017908096
main90179-08096
9021008018
main90210-08018
9046107024
main90461-07024
9046108517
main90461-08517
9151140610
main91511-40610
9165161025
main91651-61025
9166140616
main91661-40616
9331915008
main93319-15008
9354014010
main93540-14010
9471290800
main94712-90800
25 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota CELICA
This section contains 25 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CELICA. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH, PAD, BACK DOOR HINGE, NO.1.
