Toyota CELICA — ARMREST & VISOR

63388BSTOPPER, ROOF HEADLINING TRIM CLIP

main63388-20020×2iAT180,ST18#..CP,LB198909-199309

74310VISOR ASSY, RH

main74310-20870-02iST185..CND198910-199008

RED,TRIM3#

main74310-20870-03iST185..CND198910-199208

SHADOW GRAY,TRIM1#

main74310-20870-04iST185..CND198910-199108

DARK BLUE,TRIM8#

main74310-20870-06iST185..CND199008-199108

CHOCOLATE BROWN,TRIM4#

main74310-20880-02iAT180198909-199008

RED,TRIM3#

main74310-20880-03iAT180198909-199309

SHADOW GRAY,TRIM1#

main74310-20880-04iAT180198909-199309

DARK BLUE,TRIM8#

main74310-20880-16iAT180199008-199108

CHOCOLATE BROWN,TRIM4#

main74310-20890-02iST18#..(CP,LB)..(GT,GTS,TBOAT)198909-199008

RED,TRIM3#

main74310-20890-03iAT180198909-199309

W(SUNROOF),SHADOW GRAY,TRIM1#

main74310-20890-04iST184..CP,LB199108-199309

DARK BLUE,TRIM8#

main74310-20890-16iST18#..(CP,LB)..(GT,GTS,TBOAT)199008-199108

CHOCOLATE BROWN,TRIM4#

main74310-2B130-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#

main74310-2B131-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-20620-02iAT180..CND198909-199008

RED,TRIM3#

sub74320-20780

main74320-20620-03iAT180..CND198909-199208

SHADOW GRAY,TRIM1#

sub74320-20780

main74320-20620-04iAT180..CND198909-199208

DARK BLUE,TRIM8#

sub74320-20780

main74320-20620-26iAT180..CND199008-199108

CHOCOLATE BROWN,TRIM4#

sub74320-20780

main74320-20790-02iST184..(CP,LB)..USA198909-199008

RED,TRIM3#

main74320-20790-03iST184..CP,LB199208-199309

W(SUNROOF),SHADOW GRAY,TRIM1#

main74320-20790-04iST184..CP,LB199208-199309

W(SUNROOF),DARK BLUE,TRIM8#

main74320-20790-16iST184..(CP,LB)..USA199008-199108

CHOCOLATE BROWN,TRIM4#

main74320-20800-03iST184..CVT199006-199109

SHADOW GRAY,TRIM1#

main74320-20801-B0iST184..CVT199109-199309

SHADOW GRAY,TRIM1#

main74320-20830-02iST185..CND198910-199008

RED,TRIM3#

main74320-20830-03iST185..CND198910-199208

SHADOW GRAY,TRIM1#

main74320-20830-04iST185..CND198910-199108

DARK BLUE,TRIM8#

main74320-20830-06iST185..CND199008-199108

CHOCOLATE BROWN,TRIM4#

main74320-20850-02iST185..USA198910-199008

RED,TRIM3#

main74320-20850-03iST185..USA198910-199208

SHADOW GRAY,TRIM1#

main74320-20850-04iST185..USA198910-199108

DARK BLUE,TRIM8#

main74320-20850-16iST185..USA199008-199108

CHOCOLATE BROWN,TRIM4#

main74320-2B030-02iST184..CND198909-199008

RED,TRIM3#

main74320-2B030-03iST184..CND198909-199208

W(SUNROOF),SHADOW GRAY,TRIM1#

main74320-2B030-04iST184..CND198909-199208

W(SUNROOF),DARK BLUE,TRIM8#

main74320-2B030-16iST184..CND199008-199108

CHOCOLATE BROWN,TRIM4#

main74320-2B050-02iAT180..USA198909-199008

RED,TRIM3#

main74320-2B050-03iAT180199208-199309

SHADOW GRAY,TRIM1#

main74320-2B050-04iAT180199208-199309

DARK BLUE,TRIM8#

main74320-2B050-16iAT180..USA199008-199108

CHOCOLATE BROWN,TRIM4#

74348HOLDER, VISOR

main74348-12020-53×2iST184..CVT199006-199309

SHADOW GRAY,TRIM1#

sub74348-60010

sub74348-26020

main74348-20040-02×2iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main74348-20040-03×2iAT180,ST18#..CP,LB198909-199309

LIGHT GRAY,TRIM1#

main74348-20040-04×2iAT180,ST184..CP,LB199108-199309

LIGHT BLUE,TRIM8#

main74348-20040-26×2iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22050-02iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

sub74610-17020

main74610-22050-03iAT180,ST18#..CP,LB198909-199309

LIGHT GRAY,TRIM1#

sub74610-17020

main74610-22050-14iAT180,ST18#..CP,LB198909-199108

DARK BLUE,TRIM8#

sub74610-17020

main74610-22050-26iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub74610-17020

74612COVER, ASSIST GRIP

main74612-20050-03×2iAT180,ST18#..CP,LB199107-199108

SHADOW GRAY,TRIM1#

main74612-20050-04×2iAT180,ST184..CP,LB199109-199309

DARK BLUE,TRIM8#

main74612-20050-L5×2iAT180,ST18#..CP,LB199107-199108

CHOCOLATE BROWN,TRIM4#

main74612-22050-12×2iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main74612-22050-13×2iAT180,ST18#..CP,LB199108-199109

LIGHT GRAY,TRIM1#

main74612-22050-24×2iAT180,ST18#..CP,LB199008-199107

DARK BLUE,TRIM8#

main74612-22050-36×2iAT180,ST18#..CP,LB199008-199107

CHOCOLATE BROWN,TRIM4#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-20030-02iAT180,ST184..NOB198909-198910

RED,TRIM3#

main74630-20030-03iAT180,ST184198910-199309

SHADOW GRAY,TRIM1#

main74630-20030-04iAT180,ST184..CP,LB198910-199309

DARK BLUE,TRIM8#

main74630-20030-16iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main74630-20040-02iST184..CP,LB198909-199008

W(POWER WINDOW),RED,TRIM3#

main74630-20040-03iST185198910-199309

SHADOW GRAY,TRIM1#

main74630-20040-04iST184..CP,LB198909-199008

W(POWER WINDOW),DARK BLUE,TRIM8#

main74630-20040-16iAT180,ST184..CP,LB199008-199108

W(POWER WINDOW),CHOCOLATE BROWN,TRIM4#

74631BHOOK, COAT

main74631-20060-02×2iAT180,ST18#..CP,LB198909-199008

RED,TRIM3#

main74631-20060-03×2iAT180,ST18#..CP,LB198909-199309

SHADOW GRAY,TRIM1#

main74631-20060-04×2iAT180,ST184..CP,LB199008-199309

DARK BLUE,TRIM8#

main74631-20060-16×2iAT180,ST18#..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-20030-02iAT180,ST184..CP,LB198910-199008

RED,TRIM3#

main74640-20030-03iAT180,ST184..NOB198909-198910

SHADOW GRAY,TRIM1#

main74640-20030-04iAT180,ST184..CP,LB198910-199309

DARK BLUE,TRIM8#

main74640-20030-16iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

main74640-20040-02iST184..CP,LB198909-199008

W(POWER WINDOW),RED,TRIM3#

main74640-20040-03iAT180,ST184199008-199309

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main74640-20040-04iST184..CP,LB198909-199008

W(POWER WINDOW),DARK BLUE,TRIM8#

main74640-20040-16iAT180,ST184..CP,LB199008-199108

W(POWER WINDOW),CHOCOLATE BROWN,TRIM4#

9015940023

main90159-40023

9015960503

main90159-60503

9016460008

main90164-60008

9016840027

main90168-40027

9016840100

main90168-40100

9018906030

main90189-06030

9353045020

main93530-45020

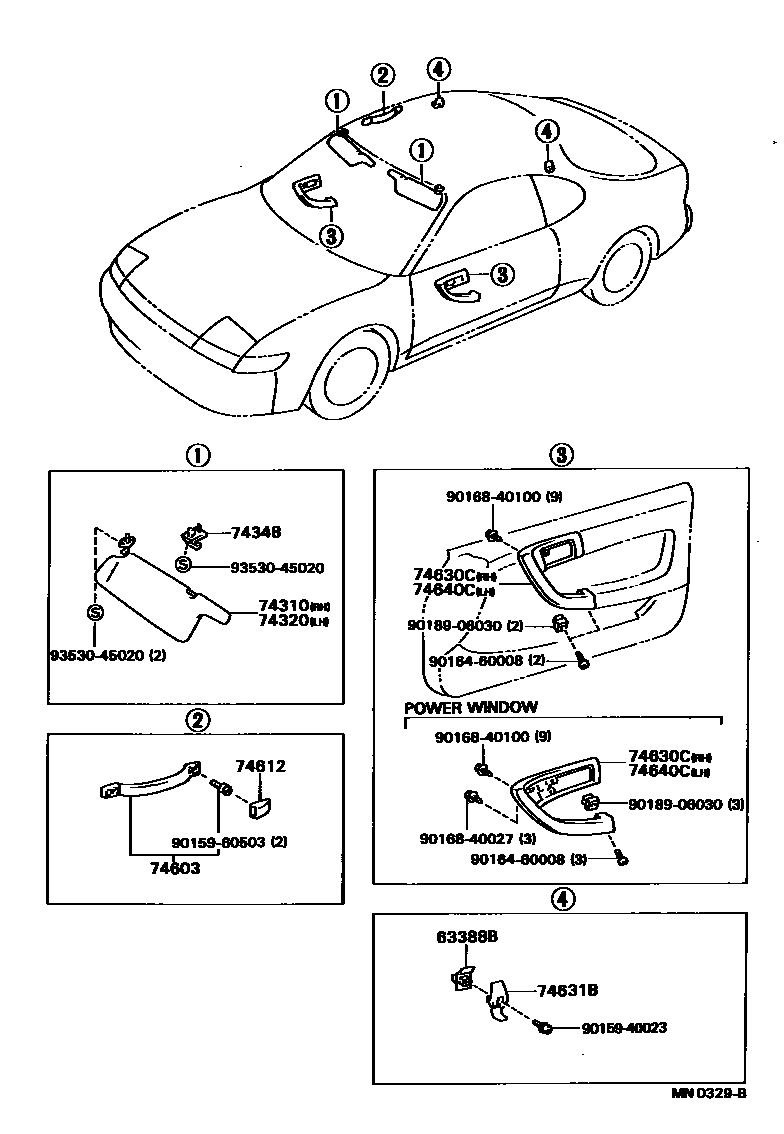

16 parts on this diagram · 1 diagram in section
