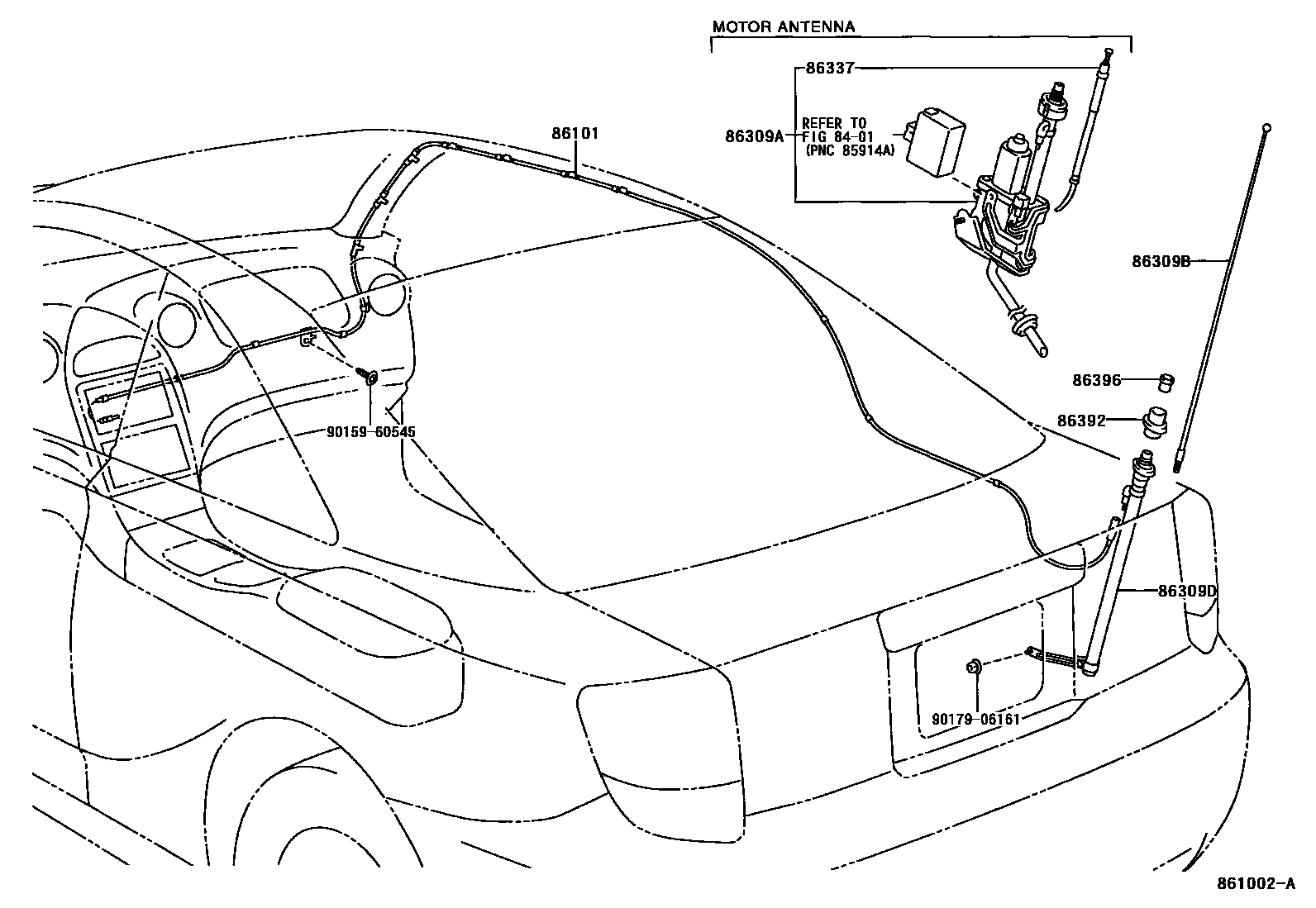

Toyota CELICA — ANTENNA

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86101CORD SUB-ASSY, ANTENNA

main86101-20790i200208-200507

DIVERSITY ANTENNA

main86101-20880i199908-200208

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-20320i200208-200507

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-16120i199908-200208

86309DPOLE SUB-ASSY, PULL TOP ANTENNA, NO.2

main86309-20300i199908-200208

86337ROD & PIPE, SEALED W/CABLE

main86337-20320i200208-200507

86392ORNAMENT, ANTENNA

main86392-20210i199908-200208

86396NUT, ANTENNA

main86396-20030i199908-200208

9015960545

main90159-60545

9017906161

main90179-06161

10 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CELICA

This section contains 13 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: SWITCH & RELAY & COMPUTER, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, POLE SUB-ASSY, MOTOR ANTENNA.
