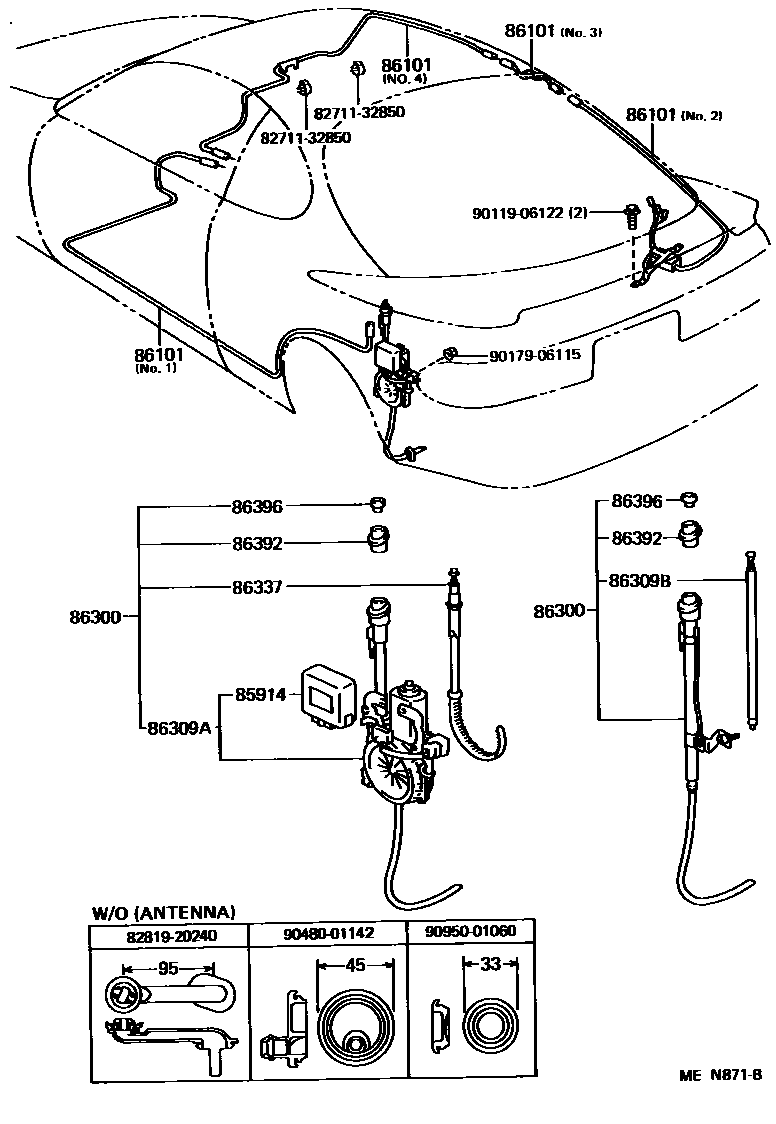

Toyota CELICA — ANTENNA
85914RELAY, MOTOR ANTENNA CONTROL
86101CORD SUB-ASSY, ANTENNA
W(SUN ROOF & 6SP) OR 10SP,NO.1; W(SUN ROOF & 6SP) OR 6SP OR 10SP,NO.1; W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.1
W(SUN ROOF & 6SP) OR 6SP OR 10SP,NO.2; W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.2
W(SUN ROOF & 6SP) OR 6SP OR 10SP,NO.3; W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.3
6SP OR 10SP,NO.4
W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.4
6SP OR 10SP,NO.2; 6SP,NO.2
W(SUN ROOF & 6SP) OR W(SUN ROOF & 10SP),NO.2
86300ANTENNA ASSY, W/HOLDER
MOTOR TYPE
MOTOR TYPE
MOTOR TYPE
86309APOLE SUB-ASSY, MOTOR ANTENNA
86309BPOLE SUB-ASSY, PULL TOP ANTENNA
86337ROD & PIPE, SEALED W/CABLE
86392ORNAMENT, ANTENNA
MOTOR TYPE
MOTOR TYPE
86396NUT, ANTENNA
8271132850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-32850
8281920240GROMMET, WIRING HARNESS
main82819-20240
9011906122
main90119-06122
9017906115
main90179-06115
9048001142
main90480-01142
9095001060
main90950-01060
14 parts on this diagram · 3 diagrams in section
ANTENNA for Toyota CELICA
This section contains 14 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, MOTOR ANTENNA, POLE SUB-ASSY, PULL TOP ANTENNA.
