Toyota CELICA — ANTENNA

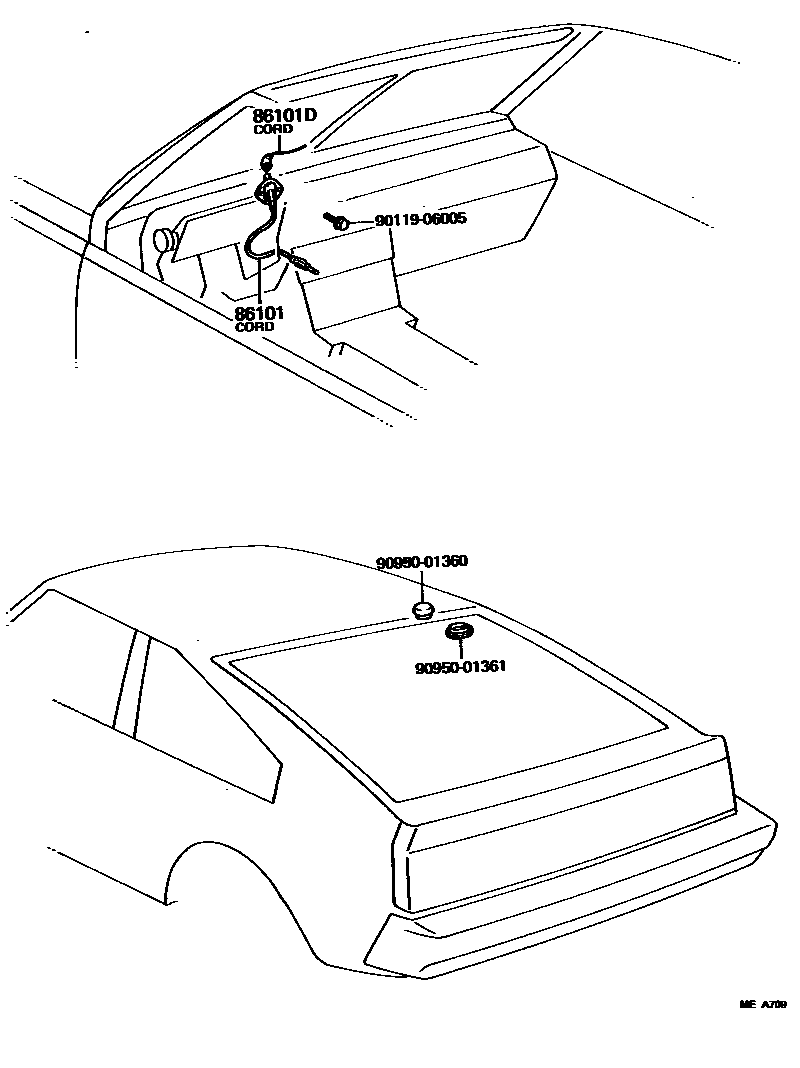

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-14260i198108-198208

main86101-14280i198208-198507

main86101-14330i198208-198512

main86101-14360i198404-198507

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-14120i198108-198204

main86101-14340i198204-198208

9011906005

main90119-06005

9095001360

main90950-01360

9095001361

main90950-01361

5 parts on this diagram · 3 diagrams in section

ANTENNA for Toyota CELICA

This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA.
