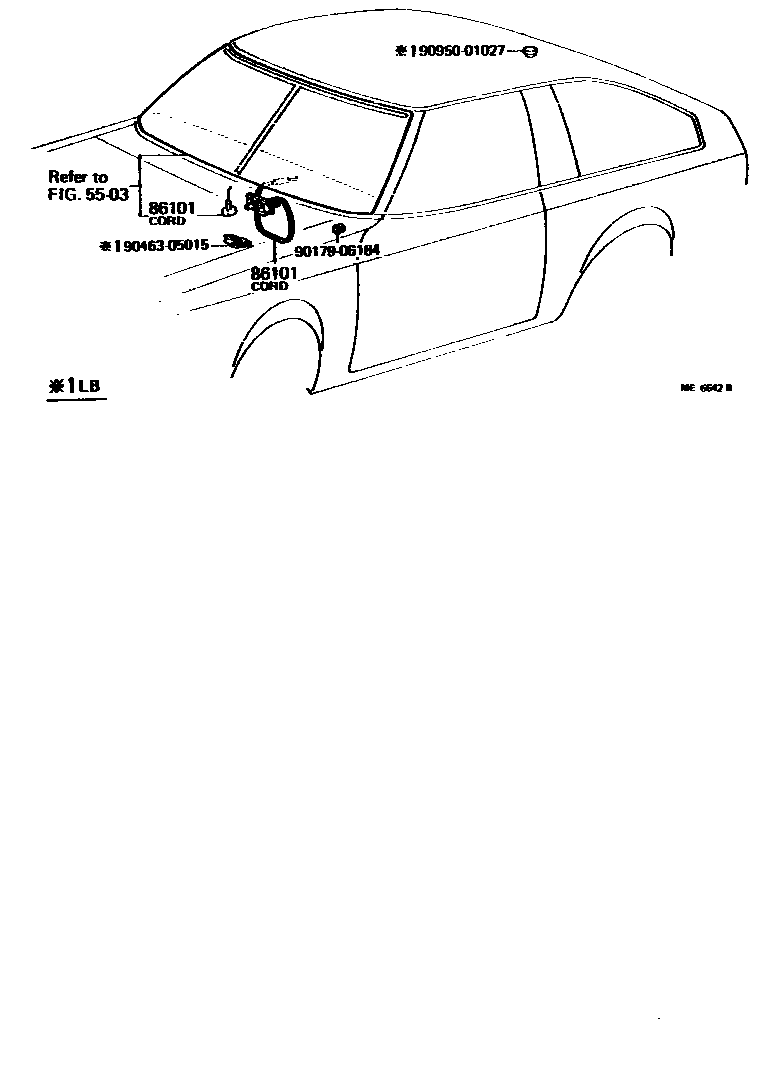

Toyota CELICA — ANTENNA

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86101CORD SUB-ASSY, ANTENNA

main86101-14120i197708-198107

L=170

main86101-14130i197708-198107

L=560

9017906184

main90179-06184

9046305015

main90463-05015

9095001027

main90950-01027

5 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CELICA

This section contains 5 genuine Toyota parts for the ANTENNA system of the Toyota CELICA. Key components include: COWL PANEL & WINDSHIELD GLASS, CORD SUB-ASSY, ANTENNA.
