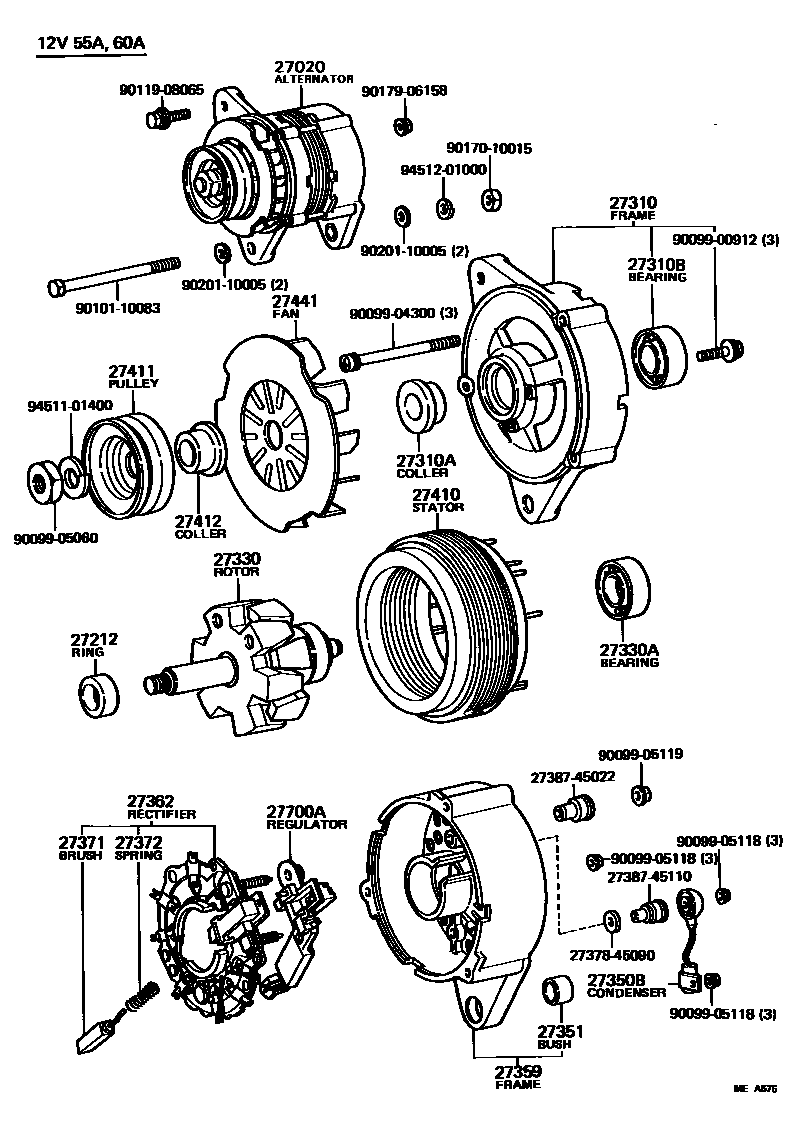

Toyota CELICA — ALTERNATOR

27020ALTERNATOR ASSY

main27060-35020i198108-198408

12V 60A

main27060-35040i198108-198308

12V 55A

main27060-35060i198408-198507

12V 60A,12V 60A

main27060-43030i198108-198308

12V 65A,12V 65A

main27060-43060i198308-198512

12V 60A,12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i198108-198308

12V 55A,60A,65A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-35020i198306-198408

12V 55A,60A

main27310-35060i198408-198501

12V 60A

main27310-35061i198501-198507

12V 60A

main27310-38061i198108-198306

12V 55A,60A

main27310-43040i198108-198308

12V 65A

main27310-43100i198501-198512

12V 60A

main27310-72010i198308-198309

12V 60A

main27310-72050i198309-198408

12V 60A

main27310-72090i198408-198501

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i198108-198308

12V 55A,60A,65A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i198108-198308

12V 55A,60A,65A

main90099-10141i198308-198309

12V 60A

main90099-10152i198408-198501

12V 60A

main90099-10159i198501-198512

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i198108-198408

12V 55A,60A

main27330-43040i198108-198308

12V 65A

main27330-63021i198408-198501

12V 60A

main27330-72100i198501-198512

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i198108-198308

12V 55A,60A,65A

main90099-10140i198408-198507

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i198108-198308

12V 55A,60A,65A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i198108-198308

12V 55A,60A,65A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010i198308-198404

12V 60A

main27359-16011i198408-198507

12V 60A

main27359-28030i198108-198211

12V 55A,60A

main27359-34080i198211-198408

12V 55A,60A

main27359-43020i198108-198308

12V 65A

main27359-43050i198404-198512

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-15070i198108-198408

12V 55A

main27362-43040i198108-198308

12V 65A

27371BRUSH, ALTERNATOR

main27371-31011×2i198108-198308

12V 55A,60A,65A

main27371-63020×2i198408-198507

12V 60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i198108-198308

12V 55A,60A,65A

main27372-63020×2i198408-198501

12V 60A

main27372-72100×2i198501-198512

12V 60A

27410STATOR ASSY, ALTERNATOR

main27410-41080i198108-198408

12V 55A

main27410-43040i198108-198308

12V 65A

main27410-45120i198108-198408

12V 60A

27411PULLEY, ALTERNATOR

main27411-31042i198108-198408

12V 55A,60A

main27411-35060i198408-198501

12V 60A

main27411-35061i198501-198507

12V 60A

main27411-41071i198108-198308

12V 65A

main27411-43050i198308-198501

12V 60A

main27411-43120i198501-198512

12V 60A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44031i198108-198408

12V 55A,60A

27441FAN, ALTERNATOR

main27441-44050i198108-198308

12V 65A

main27441-70040i198108-198408

12V 55A,60A

27700AREGULATOR ASSY, GENERATOR

main27700-43010i198108-198308

12V 55A,60A,65A

main27700-63021i198408-198507

12V 60A

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110083

main90101-10083

9011908065

main90119-08065

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9451101400

main94511-01400

9451201000

main94512-01000

33 parts on this diagram · 3 diagrams in section

ALTERNATOR for Toyota CELICA

This section contains 51 genuine Toyota parts for the ALTERNATOR system of the Toyota CELICA. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR, RING, SPACE(FOR ALTERNATOR ROTOR), FRAME ASSY, DRIVE END, ALTERNATOR.
