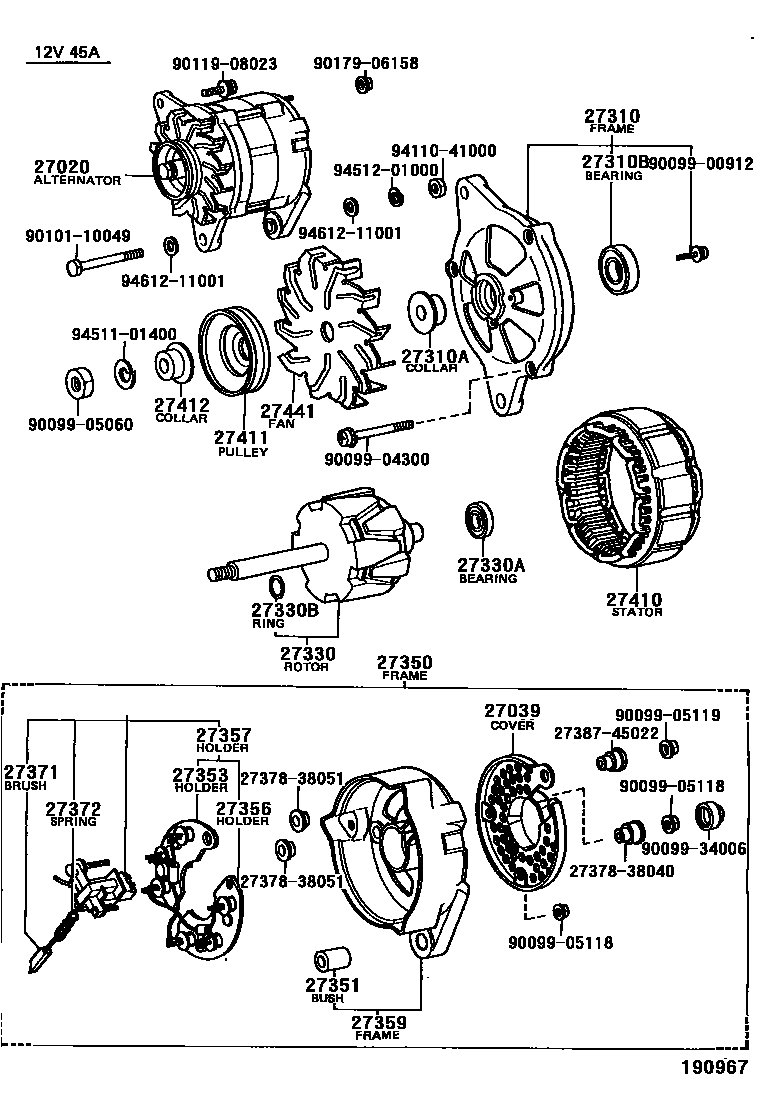

Toyota CELICA — ALTERNATOR

27020ALTERNATOR ASSY

main27020-28010i197808-197903

12V 55A(B TYPE),W/O REGULATOR

main27020-28011i197903-197906

12V 55A(B TYPE),W/O REGULATOR

main27020-28012i197906-198008

12V 55A(B TYPE),W/O REGULATOR

main27020-28020i198008-198107

12V 55A(B TYPE),W/0 REGULATOR

main27020-38051i197708-197802

12V 45A,W/O REGULATOR

main27020-38061i197708-197808

12V 55A(B TYPE),W/O REGULATOR

main27020-38090i197802-197808

12V 55A(A TYPE),W/O REGULATOR

main27020-38102i198008-198107

12V 60A, W/O REGULATOR

main27020-45140i197901-198107

12V 60A,W/O REGULATOR

27039COVER, ALTERNATOR REAR END

main27039-45020i197708-197802

12V 45A

main27039-45110i197708-197906

12V 55A,60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i197708-197802

12V 45A

main27310-38050i197802-197808

12V 55A(A TYPE)

main27310-38061i197708-198107

12V 55A(B TYPE),60A

main27310-45110i197901-198107

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i197708-198107

12V 45A,55A,60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10115i197708-197808

12V 45A,55A

main90099-10125i197808-198107

12V 55A,60A

27330ROTOR ASSY, ALTERNATOR

main27330-45020i197708-197802

12V 45A

main27330-45070i197802-197808

12V 55A(A TYPE)

main27330-45090i197708-198107

12V 55A(B TYPE),60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i197708-198107

12V 45A,55A,60A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i197708-197802

12V 45A

27350FRAME ASSY, RECTIFIER END

main27350-38051i197708-197802

12V 45A

main27350-38061i197708-197808

12V 55A(B TYPE)

main27350-45100i197802-197808

12V 55A(A TYPE)

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i197708-198107

12V 45A,55A,60A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-38050i197708-197802

12V 45A

main27353-38061i197708-197808

12V 55A(B TYPE)

main27353-45100i197802-197808

12V 55A(A TYPE)

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-38050i197708-197802

12V 45A

main27356-45100i197708-197808

12V 55A(B TYPE)

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-38050i197708-197802

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-28010i197906-198107

12V 55A(B TYPE),60A

main27359-38050i197708-197802

12V 45A

main27359-38051i197802-197808

12V 55A(A TYPE)

main27359-45110i197708-197802

12V 55A(B TYPE)

main27359-45111i197802-197808

12V 55A(B TYPE)

main27359-45121i197808-197903

12V 55A(B TYPE)

main27359-45122i197903-197906

12V 55A(B TYPE)

main27359-45140i197901-198107

12V 60A

27371BRUSH, ALTERNATOR

main27371-31011×2i197708-197808

12V 45A,55A

main27371-44070×2i197808-198007

12V 55A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i198007-198107

12V 55A,60A

main90099-17114×2i197808-198007

12V 55A,60A

27410STATOR ASSY, ALTERNATOR

main27410-34030i197708-197802

12V 45A

main27410-41080i197808-198107

12V 55A(B TYPE)

main27410-45070i197802-197808

12V 55A(A TYPE)

main27410-45080i197708-197808

12V 55A(B TYPE)

main27410-45120i197901-198107

12V 60A

27411PULLEY, ALTERNATOR

main27411-31042i197708-198107

12V 45A,55A,60A

main27411-41071i197901-198107

12V 60A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i197708-198107

12V 45A,55A,60A

27441FAN, ALTERNATOR

main27441-34030i197708-197802

12V 45A

main27441-45110i197708-198107

12V 55A(B TYPE),60A

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737838051INSULATOR, ALTERNATOR, NO.1

main27378-38051

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009934006

main90099-34006

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

36 parts on this diagram · 6 diagrams in section

ALTERNATOR for Toyota CELICA

This section contains 57 genuine Toyota parts for the ALTERNATOR system of the Toyota CELICA. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, REGULATOR COVER, RING, SPACE(FOR ALTERNATOR ROTOR), FRAME ASSY, DRIVE END, ALTERNATOR.
