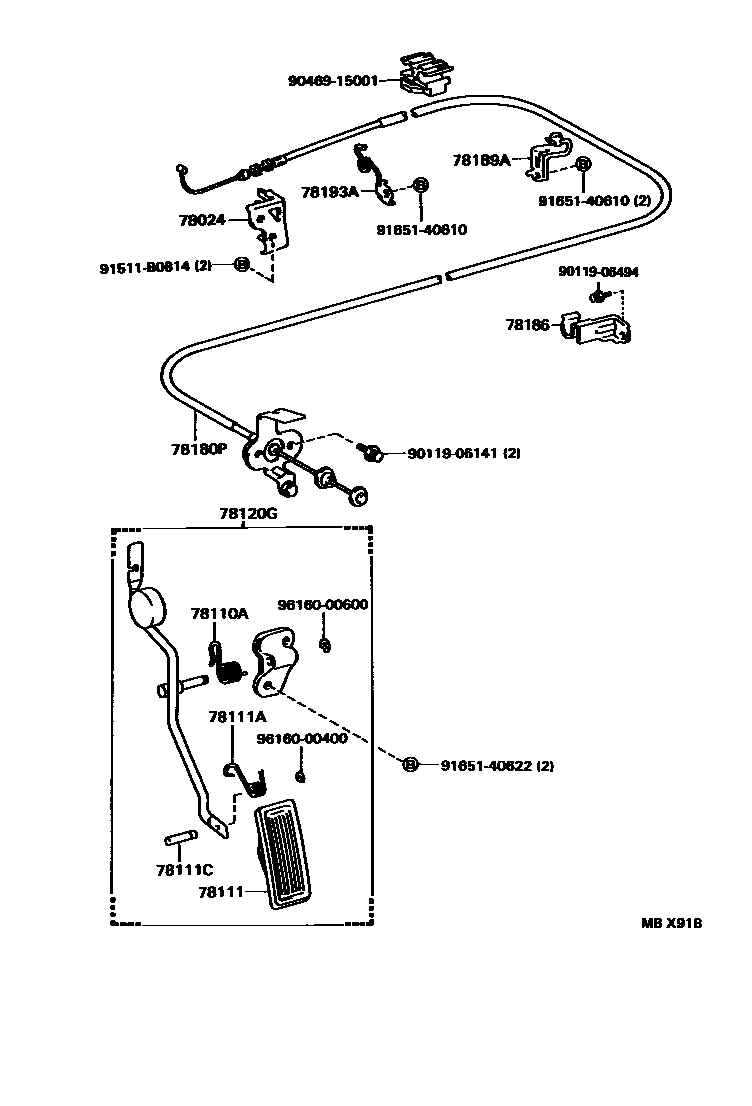

Toyota CELICA — ACCELERATOR LINK

0001 1 0003 1 0004 1 0005 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20090iST204199905

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03038iAT200,ST204..ATM199309

main90959-03039iAT200,ST204..MTM199309

78111PEDAL, ACCELERATOR

main78111-20030iAT200,ST204199309-199508

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iST204..CVT199508-199510

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT200,ST204199309-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20610iAT200,ST204..MTM199309-199508

main78120-20620iST204..CVT..ATM199508-199510

main78120-20650iAT200,ST204..(CP,LB)..MTM199508-199510

main78120-20660iAT200,ST204..(CP,LB)..ATM199508-199510

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D230iAT200199309-199508

main78180-2D290iST204199309-199311

main78180-2D340iST204199311-199508

main78180-2D450iST204..CP,LB199508-199510

main78180-2D470iAT200199508-199712

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-20141iST204..MTM199309

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-20150iST204199309

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-20080iST204199309

9011906141

main90119-06141

9011906494

main90119-06494

9046915001

main90469-15001

91511B0814

main91511-B0814

9165140610

main91651-40610

9165140622

main91651-40622

9616000400

main96160-00400

9616000600

main96160-00600

18 parts on this diagram · 4 diagrams in section
