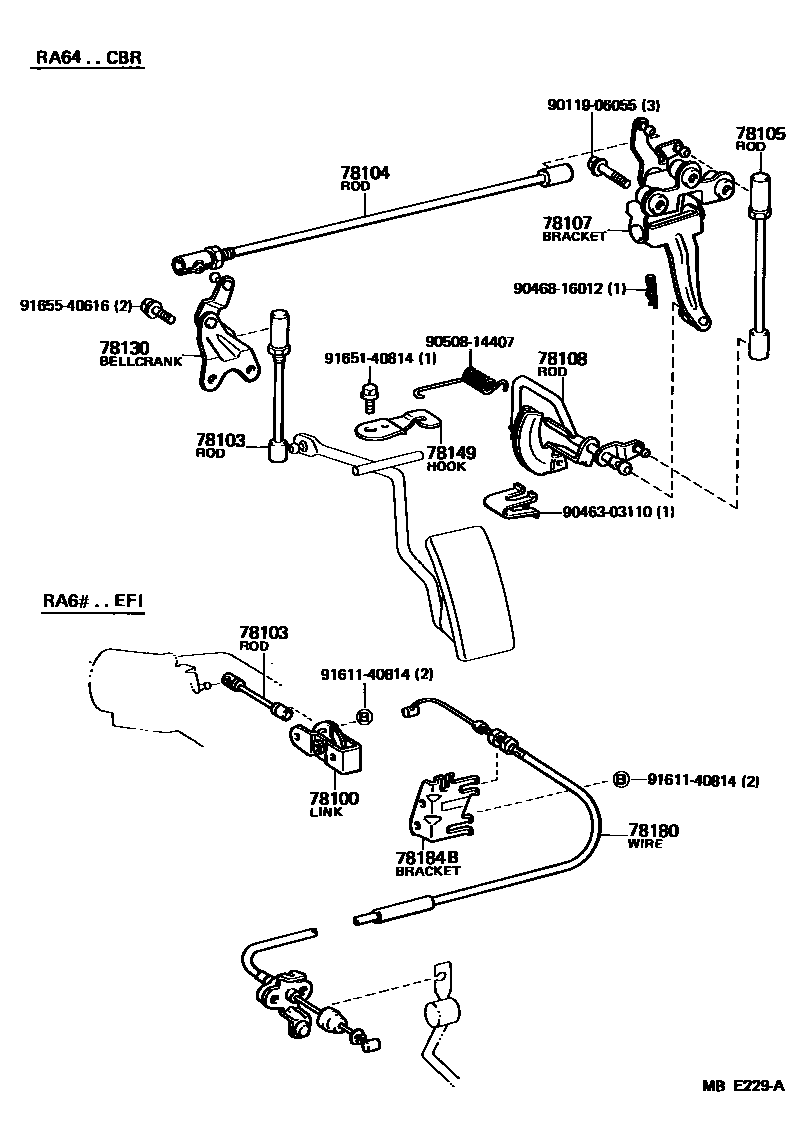

Toyota CELICA — ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
W/AUTO DRIVE
W/AUTO DRIVE
W/AUTO DRIVE
78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
W/AUTO DRIVE
78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78130BELLCRANK ASSY, ACCELERATOR
78149HOOK, ACCELERATOR TORQUE ROD SPRING
78180WIRE ASSY, ACCELERATOR
78184BBRACKET, ACCELERATOR CONTROL CABLE
9011906055
main90119-06055
9046303110
main90463-03110
9046816012
main90468-16012
9050814407
main90508-14407
9161140814
main91611-40814
9165140814
main91651-40814
9165540616
main91655-40616
17 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota CELICA
This section contains 36 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CELICA. Key components include: BUSH (FOR ACCELERATOR LINK), SPRING, TORSION (FOR ACCELERATOR LINK), LINK ASSY, ACCELERATOR, STOPPER, ACCELERATOR LINK, SPRING (FOR ACCELERATOR LINK).
