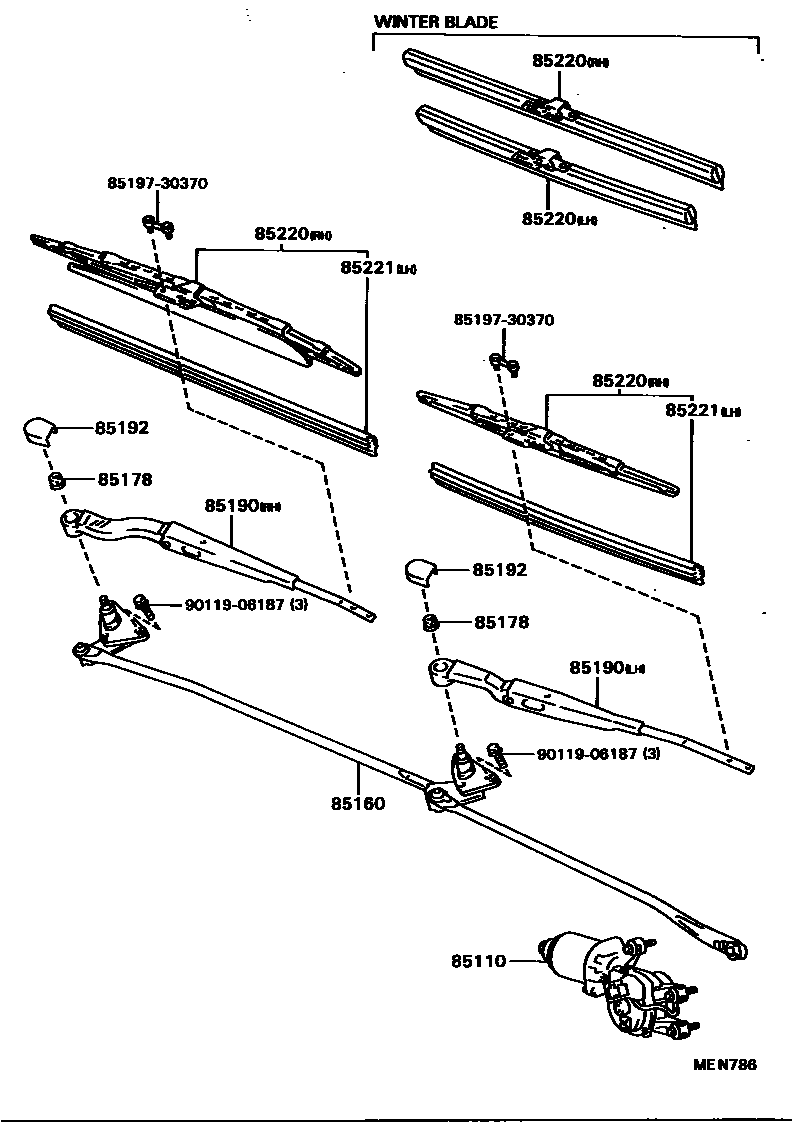

Toyota CELICA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20600i198909-199309

85160LINK ASSY, WINDSHIELD WIPER

main85160-20290i198909-199309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2i198909-199309

85190ARM ASSY, WINDSHIELD WIPER

main85190-20700i198909-199309

main85210-20240i198909-199309

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2i198909-199309

85220BLADE ASSY, WINDSHIELD WIPER

main85220-1A090i198909-199003

main85220-1A130i198909-199309

main85220-32550i198909-199003

main85220-3A220i198909-199309

main85291-20030i199003-199309

main85291-32030i199003-199309

85221BLADE, WINDSHIELD WIPER

main85213-17040i199005-199309

main85221-12200i198909-199005

main85221-12240i198909-199005

main85223-22700i199005-199309

8519730370

main85197-30370

9011906187

main90119-06187

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CELICA

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CELICA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
