Toyota CELICA — WINDSHIELD WIPER

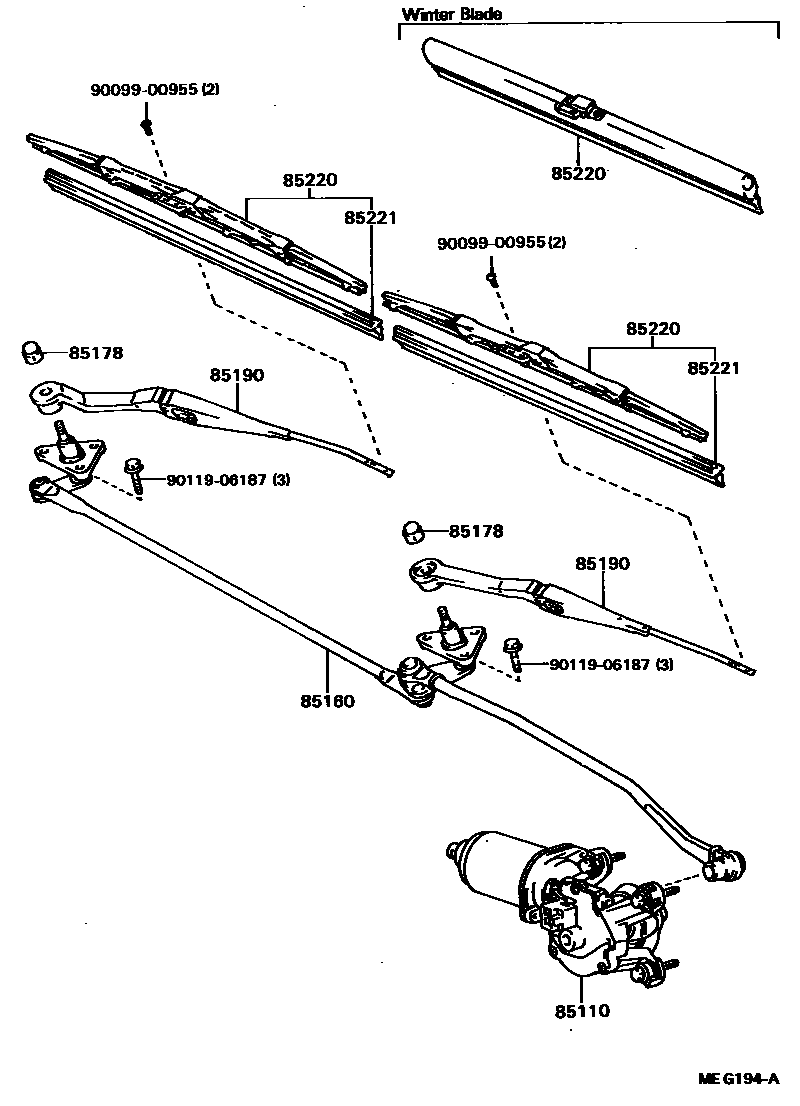

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-20220i198508-198708
main85110-20230i198508-198708
COLD SPEC
85160LINK ASSY, WINDSHIELD WIPER
main85160-20150i198508-198708
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-08033i198508-198708
85190ARM ASSY, WINDSHIELD WIPER
main85190-20310i198508-198605
RH
main85190-20311i198605-198708
RH
main85210-20130i198508-198605
LH
main85210-20131i198605-198708
LH
85220BLADE ASSY, WINDSHIELD WIPER
main85220-16320i198508-198708
LH
main85220-16580i198606-198708
LH,WINTER BLADE
main85220-32310i198508-198708
RH
main85220-32530i198508-198606
RH,WINTER BLADE
main85220-32560i198606-198708
RH,WINTER BLADE
main85220-40040i198508-198606
LH,WINTER BLADE
85221BLADE, WINDSHIELD WIPER
main85221-30110i198508-198708
RH
main85221-30120i198508-198708
LH
9009900955
main90099-00955
9011906187
main90119-06187

8 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CELICA

This section contains 8 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CELICA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, BLADE ASSY, WINDSHIELD WIPER.
