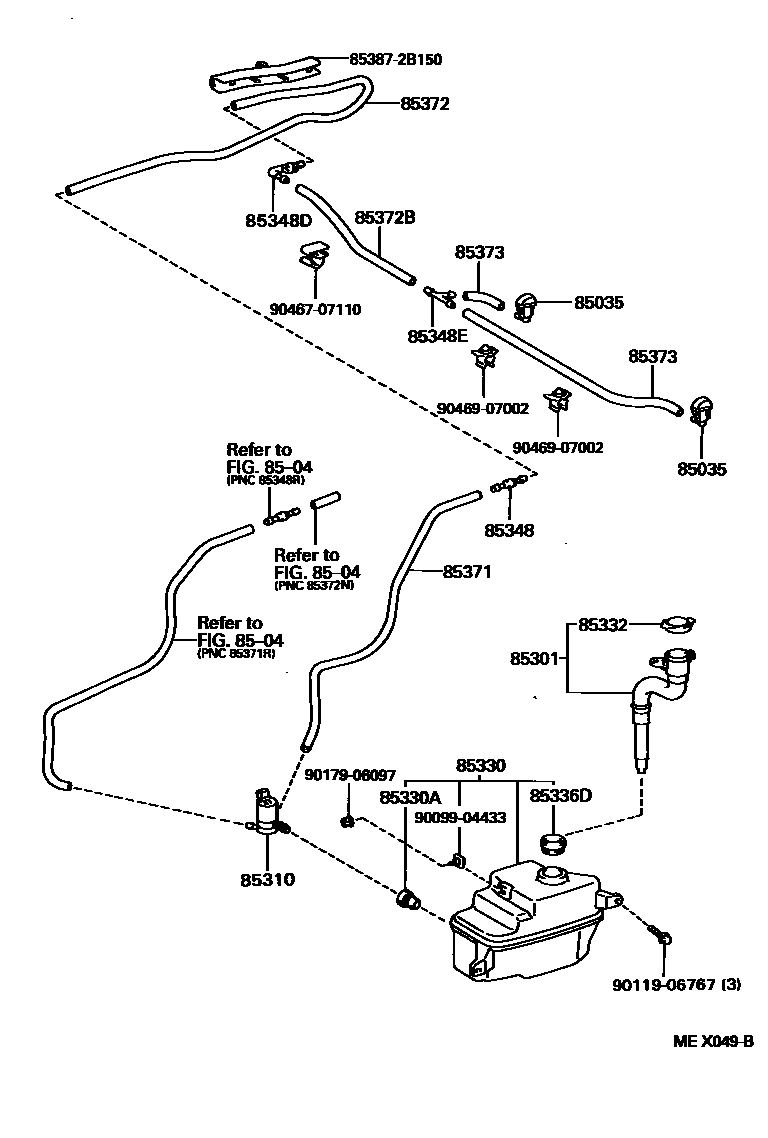

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1WRC ���

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iST202,203199408-199508

main85381-20060×2iST202,203199309-199408

main85381-20130×2iST205199402-199508

8504

85301INLET SUB-ASSY, WASHER

main85301-20020iST20#199309-199606

main85301-20021iST20#199606

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160iST205199402-199410

main85310-20210iST202..CV199408

sub85330-10280

main85330-12280iST20#..LB199309

85330JAR ASSY, WINDSHIELD WASHER

main85315-20520iST20#199309

main85315-20660iST205199402-199410

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iST20#199309

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iST20#199309-199606

main85316-33050iST20#199606

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iST20#199309

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iST205199402-199410

main85349-89122iST20#199309

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iST20#199309

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85348-14390iST20#199309

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iST205199402-199410

main90446-07001iST20#199309-199508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iST20#199309

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iST20#199309

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iST20#199309-199508

853872B150CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-2B150

9009904433

main90099-04433

9011906767

main90119-06767

9017906097

main90179-06097

9046707110

main90467-07110

9046907002

main90469-07002

21 parts on this diagram · 2 diagrams in section
