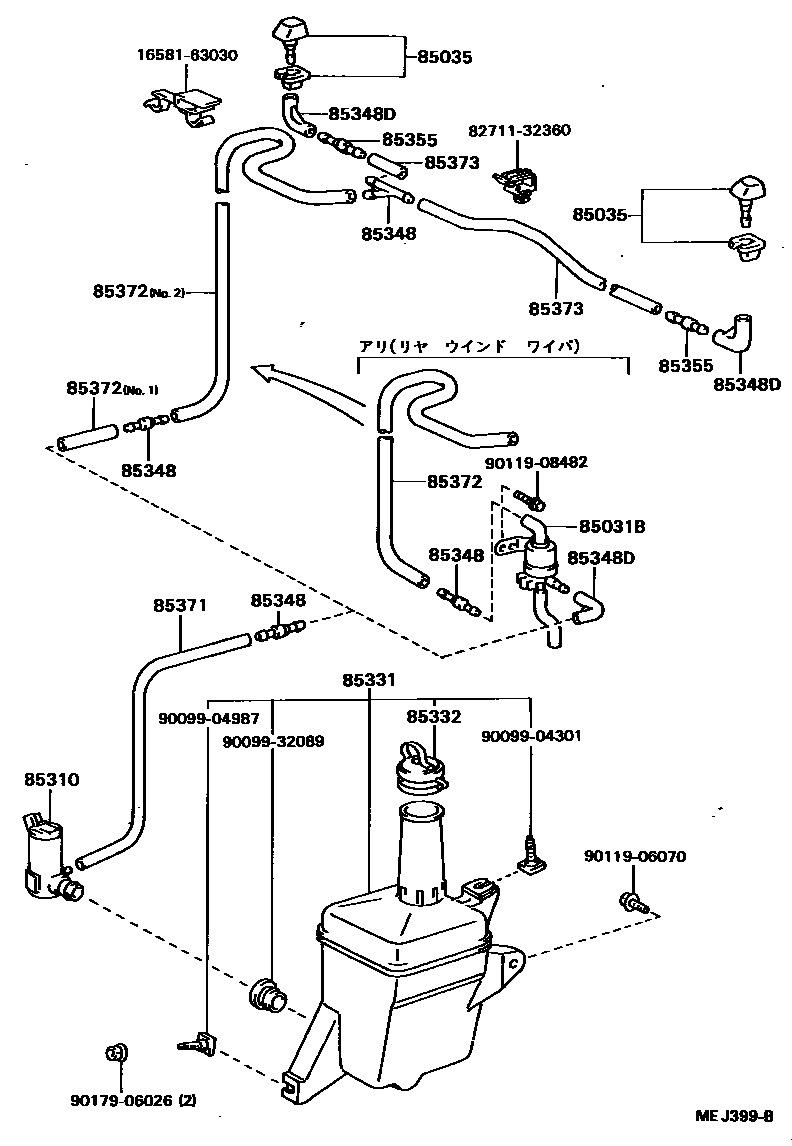

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1

85031BVALVE SUB-ASSY, WASHER

main85031-20080iST16#..GT,GT4,SX,ZR198708-198908

85035NOZZLE SUB-ASSY, WASHER

main85035-20100×2iST16#198708-198908

sub85381-35040

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iST16#198708-198908

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85331-20500iST162..CV;ST160,163..ST198708-198908

main85331-20560iST16#..GT,GT4,SX,ZR198708-198908

main85331-20730iST163..SX198805-198908

85332CAP, WINDSHIELD WASHER JAR

main85332-32130iST16#198708-198908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85338-12240iST163..SX198805-198908

main85348-12250iST16#..GT,GT4,SX,ZR198708-198908

3-WAY

main85348-14390iST162..CV;ST160,163..ST198708-198908

3-WAY

main85349-89122×2iST16#198708-198908

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iST163..SX198708-198908

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250×2iST16#198708-198908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iST163..SX198805-198908

main90446-07001iST16#198708-198908

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iST16#..GT,GT4,SX,ZR198708-198908

main90099-33094iST162..CV;ST160,163..ST198708-198908

main90099-33299iST162..CV;ST160,163..ST198708-198908

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iST16#198708-198908

1658163030CLAMP, HOSE(FOR WATER HOSE)

main16581-63030

8271132360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32360

9009904301

main90099-04301

9009904987

main90099-04987

9009932089

main90099-32089

9011906070

main90119-06070

9011908482

main90119-08482

9017906026

main90179-06026

19 parts on this diagram · 2 diagrams in section
