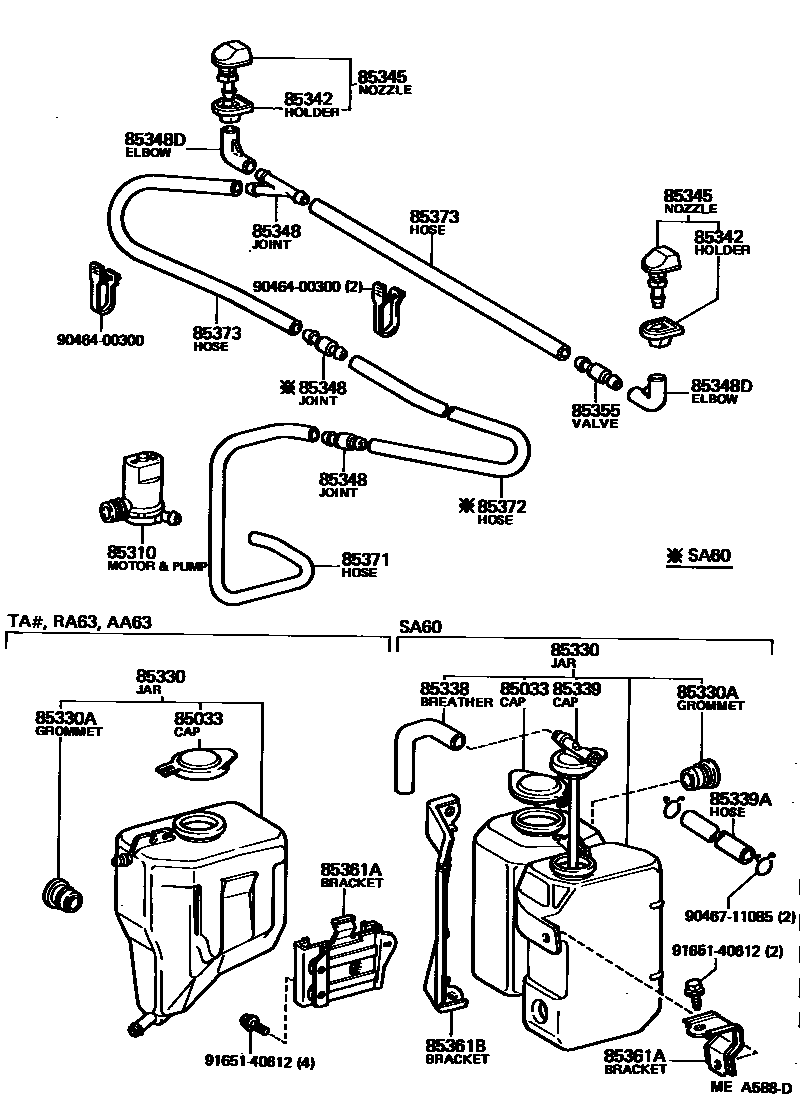

Toyota CELICA — WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10130iGA61,MA6#,RA63,SA60,TA6#198107-198208

main85310-22080iGA61..L,S;AA63,MA63,SA60,TA6#198208-198512

85330JAR ASSY, WINDSHIELD WASHER

main85330-12100iMA63;GA61..L,S198107-198512

main85330-14370iRA63,TA6#198107-198308

main85330-20201iSA60198107-198308

main85330-20350iSA60198308-198507

main85330-20360iAA63,TA63198308-198507

main85330-24020iGA61,MA61..G,GT198107-198512

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

85338HOSE, BREATHER

main85338-14040iSA60198107-198507

85339CAP SUB-ASSY, RESERVE TANK

main85339-14010iSA60198107-198507

85339AHOSE (FOR RADIATOR RESERVE TANK)

main90445-12005iSA60198107-198507

sub90445-12897

85342HOLDER, WASHER NOZZLE

main85342-14010×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

85345NOZZLE, WINDSHIELD WASHER

main85035-19015×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-12250iGA61,MA63198408-198512

3-WAY

main85355-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198408

3-WAY

sub85348-12250

main85355-87201×2iRA63,SA60,TA6#198107-198507

2-WAY

sub85349-89122

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iGA61,MA63198408-198512

main85355-20070×2iAA63,SA60,TA63198408-198507

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iGA61,MA63198408-198512

main85031-14080iAA63,GA61,MA6#,RA63,SA60,TA61,63198107-198408

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85036-14130iAA63,RA63,TA6#198107-198507

main85361-14320iSA60198107-198308

main85361-20120iSA60198308-198507

main85361-24020iMA63;GA61..S198501-198512

main85361-24030iGA61,MA61..G,GT198107-198512

main85361-30013iMA63;GA61..L,S198107-198501

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85036-24010iGA61,MA61..G,GT198107-198512

main85361-14330iSA60198107-198308

main85361-20170iSA60198308-198507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iGA61,MA6#198107-198512

main90446-06013iSA60198107-198507

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iSA60198107-198507

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAA63,TA63198408-198507

main90099-33299iAA63,RA63,SA60,TA6#198107-198507

9046400300

main90464-00300

9046711085

main90467-11085

9165140612

main91651-40612

20 parts on this diagram · 2 diagrams in section
