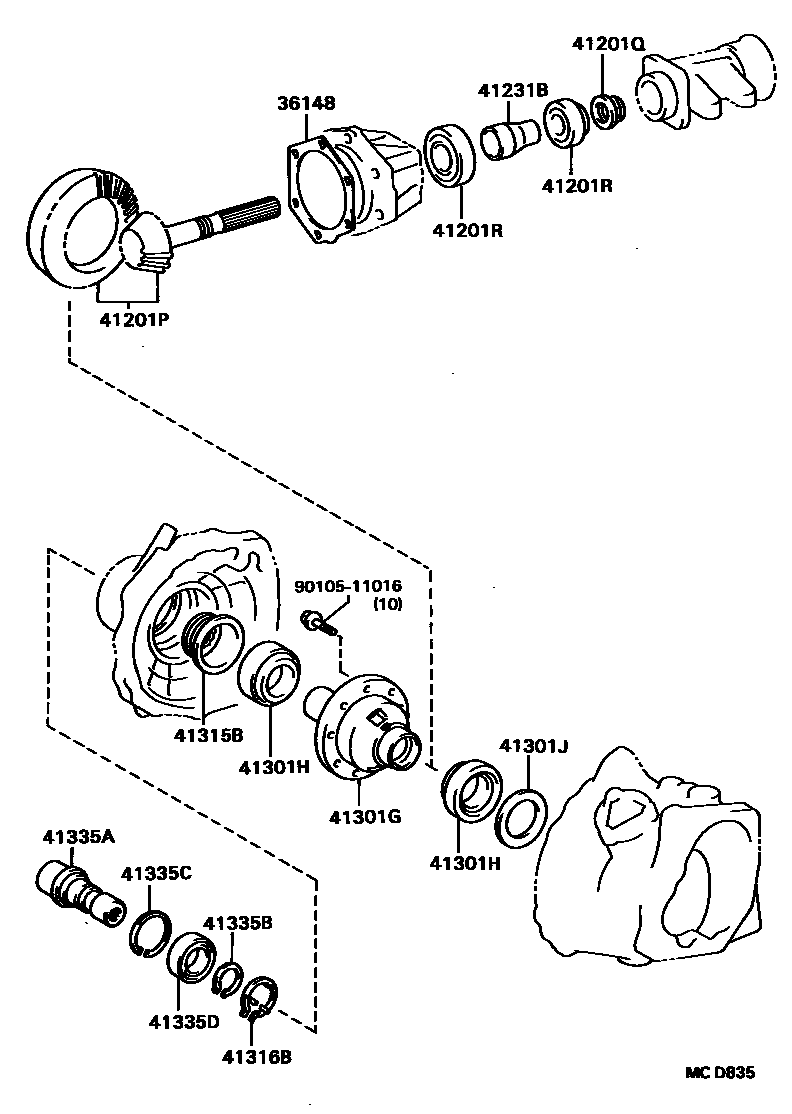

Toyota CELICA — TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41201RBEARING (FOR TRANSFER DRIVEN PINION)
RR
FR
41231BSPACER, TRANSFER PINION BEARING
41301GCASE SUB-ASSY, RING GEAR MOUNTING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
LH
RH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=2.13
T=2.16
T=2.19
T=2.22
T=2.25
T=2.28
T=2.31
T=2.34
T=2.37
T=2.40
T=2.43
T=2.46
T=2.49
T=2.52
T=2.55
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
41315BNUT, BEARING ADJUSTING
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
9010511016
main90105-11016
15 parts on this diagram · 1 diagram in section
TRANSFER GEAR for Toyota CELICA
This section contains 15 genuine Toyota parts for the TRANSFER GEAR system of the Toyota CELICA. Key components include: SHIM, PINION BEARING CAGE, GEAR KIT, TRANSFER, NUT (FOR TRANSFER GEAR), BEARING (FOR TRANSFER DRIVEN PINION), SPACER, TRANSFER PINION BEARING.
