83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iST205199712

main83420-20040iST202,203..SS1199610

main83420-AA010iST202,203..SS1199610

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST20#199802

main83530-30090iST20#199309-199802

main83530-60020iST20#199802

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iST20#..MTM199309

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iST202..ATM..(CV,SS2,SS3)199712

main84540-20220iST202,203..ATM199309-199712

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20290iST205199402-199712

main89425-29805iST202,203..SS1199309-199712

main89425-29815iST202..CV,SS2,SS3199309-199712

89465SENSOR, OXYGEN

main89465-20450iST202,203..SS1199309

main89465-20580iST202..CV,SS2,SS3199606-199712

main89465-20620iST202..CV,SS2,SS3199712

main89465-29695iST202..CV,SS2,SS3199309-199606

main89465-29725iST205199402

89615SENSOR, KNOCK CONTROL

main89615-20030iST202,203..SS1199309

sub89615-32040

main89615-20060iST202,205..CV,GT4,SS2,SS3199309

main89615-33020iST202,203..SS1199309

NIPPON DENSO

sub89615-32030

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

9043008252

main90430-08252

9043018008

main90430-18008

9165140620

main91651-40620

9165160616

main91651-60616

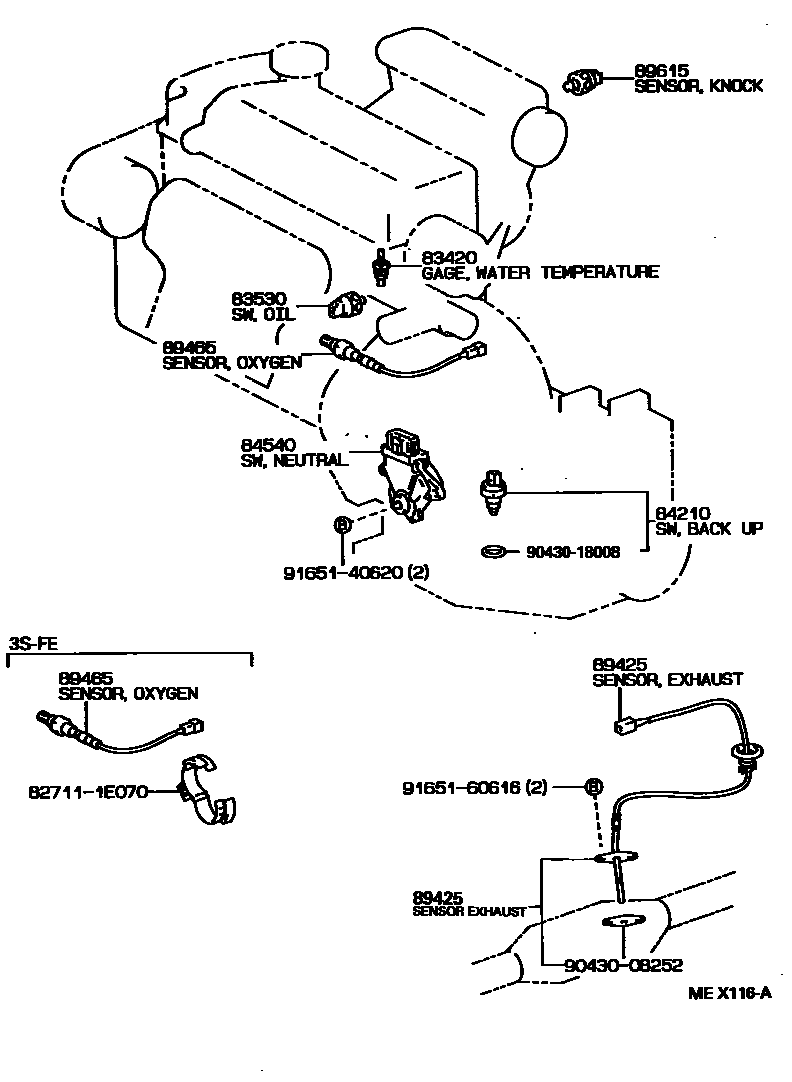

12 parts on this diagram · 7 diagrams in section
