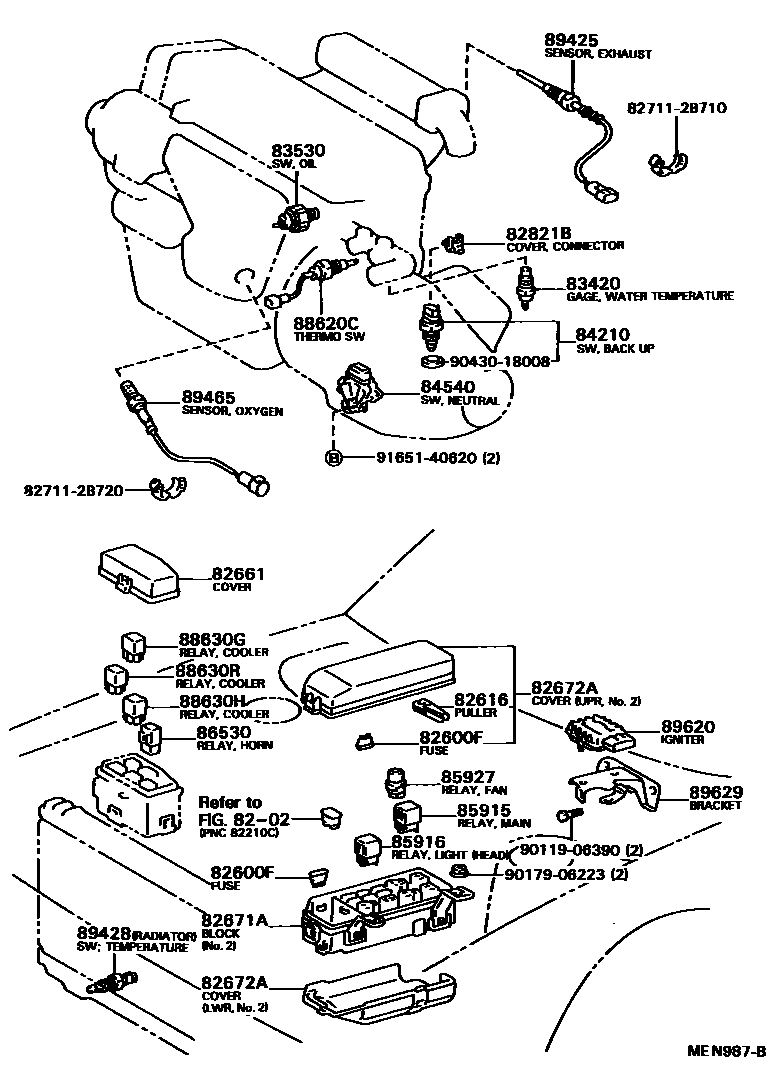

Toyota CELICA — SWITCH & RELAY & COMPUTER
8202
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
82671ABLOCK, JUNCTION
82672ACOVER, JUNCTION BLOCK
UPPER,NO.2
UPPER,NO.2
LOWER,NO.2
LOWER,NO.2
82821BCOVER, CONNECTOR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-60040
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84540SWITCH ASSY, NEUTRAL START
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
HEADLAMP
TAIL LAMP
85927RELAY, COOLING FAN
NO.2
86530RELAY ASSY, HORN
88620CTHERMO SWITCH ASSY
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89428SWITCH, TEMPERATURE DETECT, NO.2
RADIATOR
WATER INLET
WATER INLET
RADIATOR
89465SENSOR, OXYGEN
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
827112B710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B710
827112B720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B720
9011906390
main90119-06390
9017906223
main90179-06223
9043018008
main90430-18008
9165140620
main91651-40620
