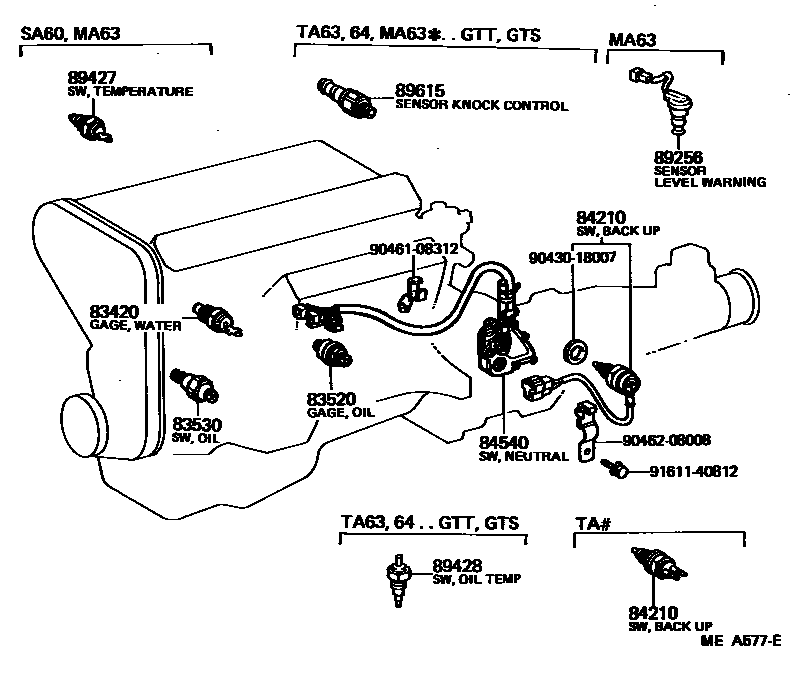

Toyota CELICA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

DENSO

main83420-20020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iAA63,GA61,MA63,RA63,TA6#198107-198310

main83520-14022iAA63,GA61,MA63,TA63198406-198512

sub83520-14023

main83520-14040iSA60198310-198407

main83520-14041iSA60198407-198507

main83520-14042iSA60198107-198310

sub83520-14043

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iRA63,TA63..GT,GTT,SX198107-198502

W/DIGITAL SPEEDOMETER

main83530-12040iAA63,TA61..GT198107-198410

W/DIGITAL SPEEDOMETER

sub83530-14040

main83530-14020iAA63198410-198507

W/DIGITAL SPEEDOMETER

sub83530-30080

main83530-14030iTA63198502-198507

W/DIGITAL SPEEDOMETER

sub83530-28030

main83530-30042iGA61,MA6#..G,GT198107-198206

W/DIGITAL SPEEDOMETER

main83530-30050iMA6#..G,GT198206-198512

W/DIGITAL SPEEDOMETER

sub83530-30051

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iSA60,TA61,63..MTM..(GT,GTR,ST,SV,SX)198107-198308

main84210-60010iGA61,MA61,RA63..5F198107-198512

84540SWITCH ASSY, NEUTRAL START

main84540-14080iGA61,MA63,SA60,TA63..4FC198308-198512

main84540-24010iMA61..4FC198308-198512

sub84540-24011

89256SENSOR, LEVEL WARNING

main89256-24010iMA63198308-198512

89427SWITCH, TEMPERATURE DETECT

main88620-24010iMA63198308-198512

W/AIR CONDITIONER

main89427-12051iSA60198107-198507

W/HEATER IDLE UP

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-14060iTA63,64..GTS,GTT198210-198308

OIL TEMPERATURE

main89428-14061iTA63198308-198507

OIL TEMPERATURE

89615SENSOR, KNOCK CONTROL

main89615-14010×2iMA63198202-198512

DENSO

main89615-14020iTA63,64..GTS,GTT198210-198507

main89615-30010×2iMA63198202-198512

MATSUSHITA

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161140812

main91611-40812

13 parts on this diagram · 5 diagrams in section
