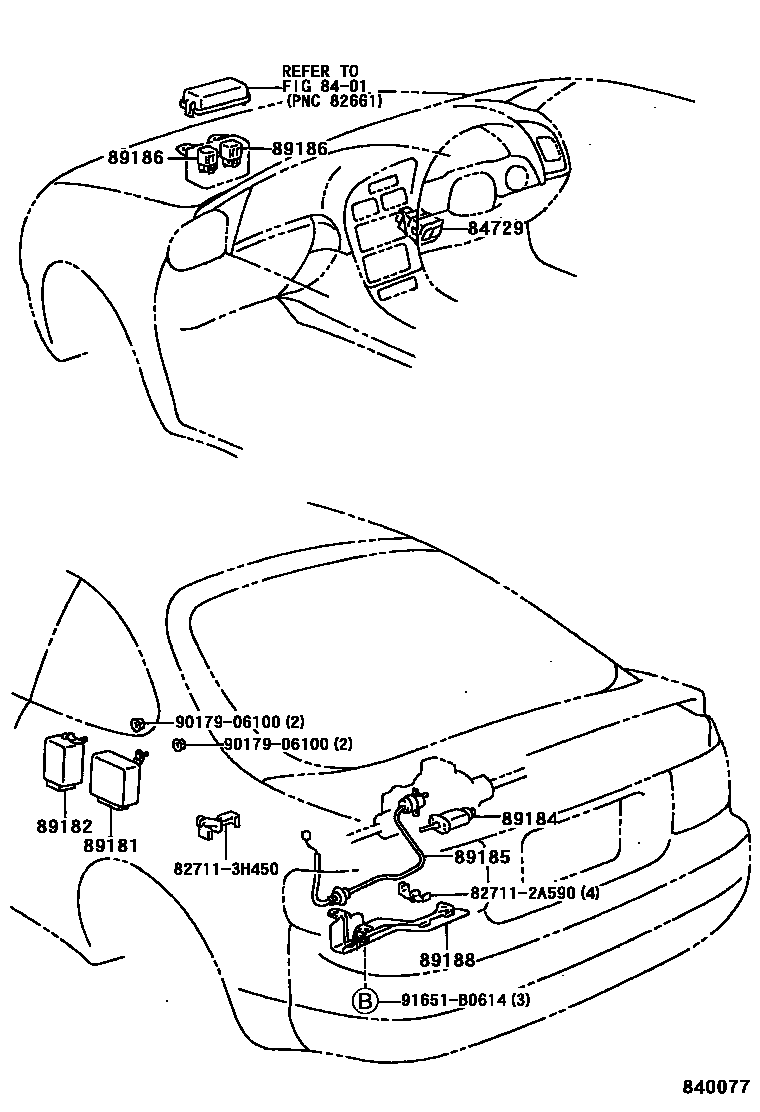

Toyota CELICA — STEERING CONTROL SYSTEM

8401

84729SWITCH, FOUR WHEEL STEERING

main84729-20010iST203199309-199712

89181COMPUTER, STEERING CONTROL

main89181-20040iST203199309-199401

main89181-20041iST203199401-199712

89182DRIVER, STEERING CONTROL MOTOR

main89182-20030iST203199309-199712

89184MOTOR, STEERING CONTROL, NO.2

main89184-20020iST203199309-199712

89185SENSOR, STEERING CONTROL

main89185-20020iST203199309-199712

89186RELAY, STEERING CONTROL

main90987-02011×2iST203199309-199712

89188GUIDE, STEERING CONTROL SENSOR

main89188-20030iST203199309-199712

827112A590WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A590

827113H450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H450

9017906100

main90179-06100

91651B0614

main91651-B0614

12 parts on this diagram · 1 diagram in section
