Toyota CELICA — STEERING CONTROL SYSTEM

84729SWITCH, FOUR WHEEL STEERING

main84729-20010iST183198909-199309

85999WBRACKET, RELAY

main85999-20400iST183198909-199309

89181COMPUTER, STEERING CONTROL

main89181-20010iST183198909-199111

main89181-20011iST183199111-199309

89182DRIVER, STEERING CONTROL MOTOR

main89182-20010iST183..LB198909-199309

main89182-20020iST183..CV199009-199309

89185SENSOR, STEERING CONTROL

main89185-20010iST183198909-199309

89186RELAY, STEERING CONTROL

main89186-20010×2iST183198909-199309

sub89633-50060

89187PROTECTOR, STEERING CONTROL WIRING HARNESS

main89187-20010iST183198909-199309

89188GUIDE, STEERING CONTROL SENSOR

main89188-20010iST183198909-199309

89189BRACKET, STEERING CONTROL COMPUTER

main89189-20010iST183..CV199009-199309

827112A590WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A590

9011906311

main90119-06311

9011906346

main90119-06346

9017906100

main90179-06100

91656B0616

main91656-B0616

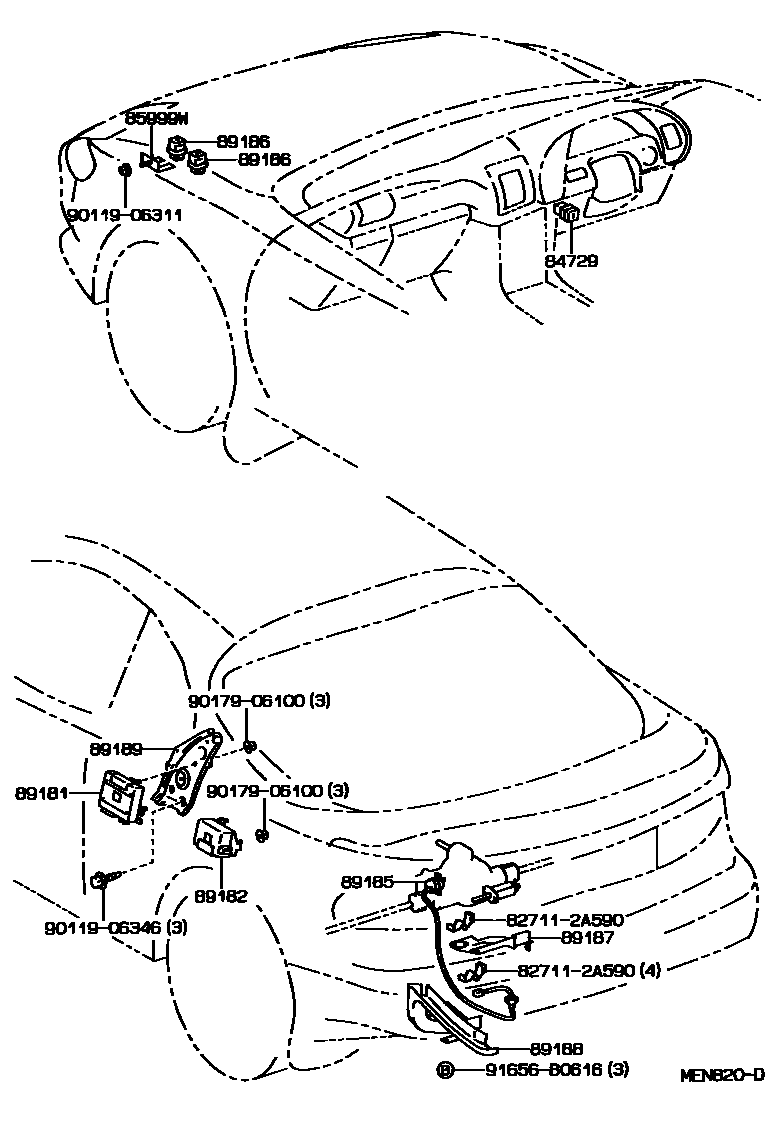

14 parts on this diagram · 1 diagram in section
