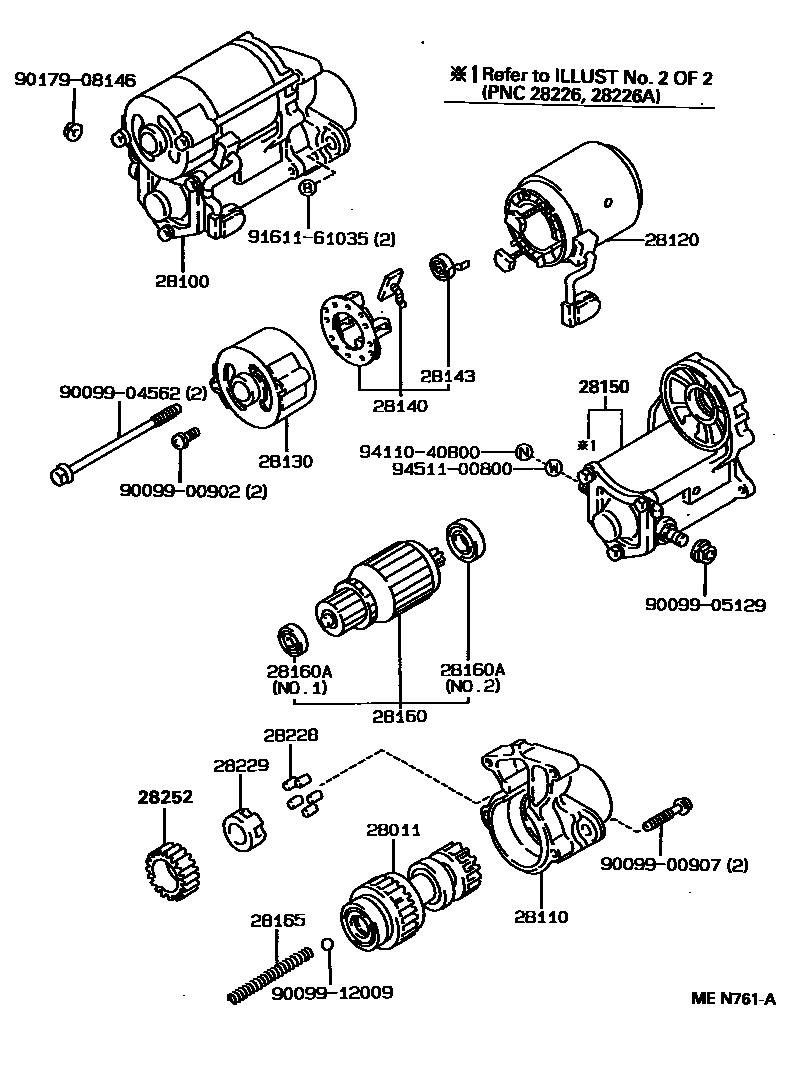

Toyota CELICA — STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 1.0KW 0004 1

28011CLUTCH SUB-ASSY, STARTER

main28011-74011i3SFE,3SG#..ST18#198909-199108

main28011-74060i3SFE,3SGTE..ST18#199108-199309

main28011-74070i3SGE..ST182,183..GTR199108-199109

28100STARTER ASSY

main28100-62011i3SGTE..ST185198910-199309

sub28100-74070

main28100-74011i3SFE..ST182,183198909-199309

main28100-74021i3SGE..ST182,183198909-199108

main28100-74090i3SGE..ST182,183199109-199309

28110HOUSING ASSY, STARTER DRIVE

main28110-62010i3SGTE..ST185198910-199309

main28110-74010i3SFE..ST182,183198909-199309

main28110-74020i3SGE..ST183..CV199108-199109

main28110-74090i3SGE..ST182,183..GTR199108-199109

28120YOKE ASSY, STARTER

main28120-15090i3SGE..ST182,183198909-199108

main28120-26071i3SFE,3SGTE..ST18#198909-199309

main28120-74070i3SGE..ST182,183199109-199309

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-74010i3SFE,3SGTE..ST18#198909-199309

main28130-74020i3SGE..ST182,183198909-199108

main28130-74090i3SGE..ST182,183..GTR199108-199109

28140HOLDER ASSY, STARTER BRUSH

main28140-74010i3SFE,3SGTE..ST18#198909-199309

main28140-74020i3SGE..ST182,183198909-199108

main28140-74070i3SGE..ST182,183..GTR199108-199109

28143SPRING, STARTER BRUSH

main90099-17112×4i3SFE,3SG#..ST18#198909-199309

28150SWITCH ASSY, MAGNET STARTER

main28150-74010i3SFE,3SGTE..ST18#198909-199309

main28150-74020i3SGE..ST182,183198909-199108

main28150-74070i3SGE..ST182,183..GTR199108-199109

28160ARMATURE ASSY, STARTER

main28160-15090i3SGE..ST182,183198909-198911

main28160-15091i3SGE..ST182,183198911-199108

main28160-26071i3SFE,3SGTE..ST18#198909-199309

main28160-74070i3SGE..ST182,183..GTR199108-199109

28160ABEARING, STARTER ARMATURE

main28253-45020i3SFE,3SGTE..ST18#198909-199309

main90099-10113i3SFE,3SGTE..ST18#198909-199309

main90099-10143i3SGE..ST182,183198909-199108

main90099-10144i3SGE..ST183..CV199108-199109

main90099-10196i3SGE..ST182,183199109-199309

main90099-10197i3SGE..ST182,183199109-199309

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74010i3SFE,3SG#..ST18#..CV,GT4,GT4RC,SR,ZR199108-199109

main28165-74070i3SGE..ST182,183199109-199309

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3SFE,3SG#..ST18#198909-199309

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3SFE,3SG#..ST18#198909-199108

main28229-74070i3SGE..ST182,183..GTR199108-199109

28252GEAR, STARTER IDLE

main28254-45020i3SGE..ST183..CV199108-199109

main28254-54070i3SFE,3SGTE..ST18#198909-199309

main28254-74070i3SGE..ST182,183..GTR199108-199109

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161035

main91611-61035

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 4 diagrams in section
