Toyota CELICASTANDARD TOOL

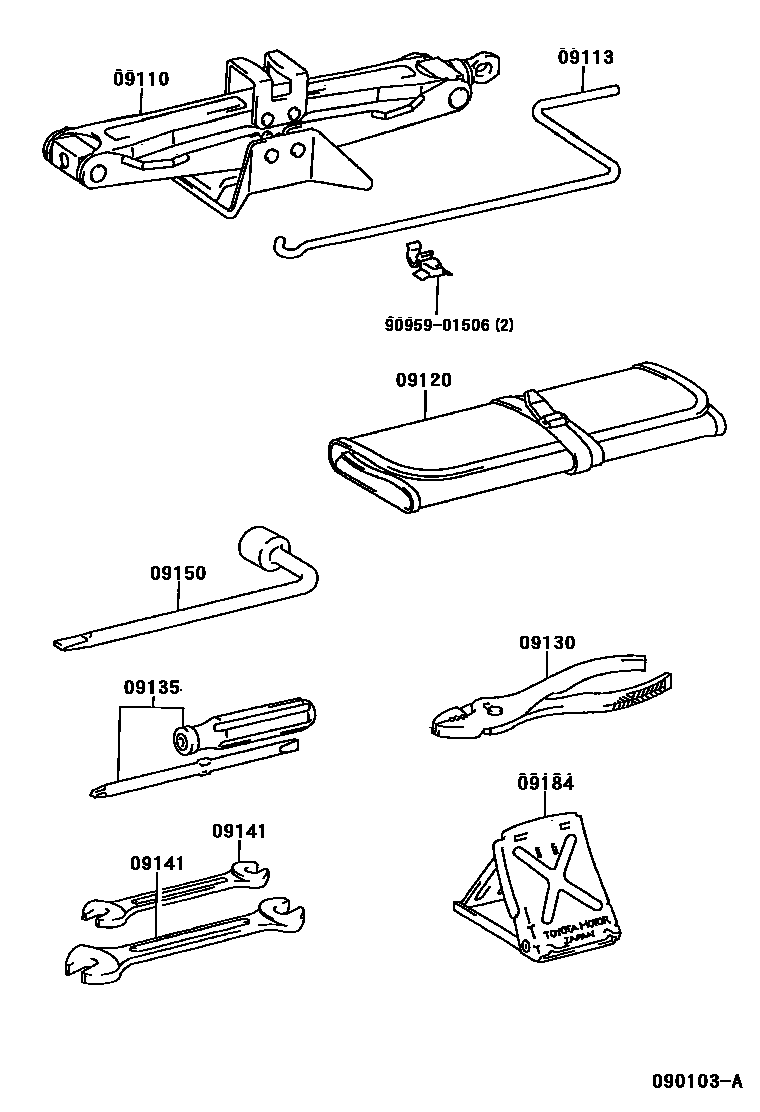

Parts diagram
09110JACK ASSY
main09111-20140i200208
09113HANDLE, JACK
main09113-20030i199908-200208
09120BAG, TOOL
main09120-16030i199908-200208
09130PLIERS
main99913-11500i199908-200208
09135DRIVER, SCREW
main99915-10700i200208
09141SPANNER
main99914-10810i199908-200208
main99914-11214i199908-200208
09150WRENCH, HUB NUT BOX
main09150-40010i199908-200208
09184STOPPER, WHEEL
main09184-00010i199908-200208
9095901506

9 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota CELICA

This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota CELICA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
