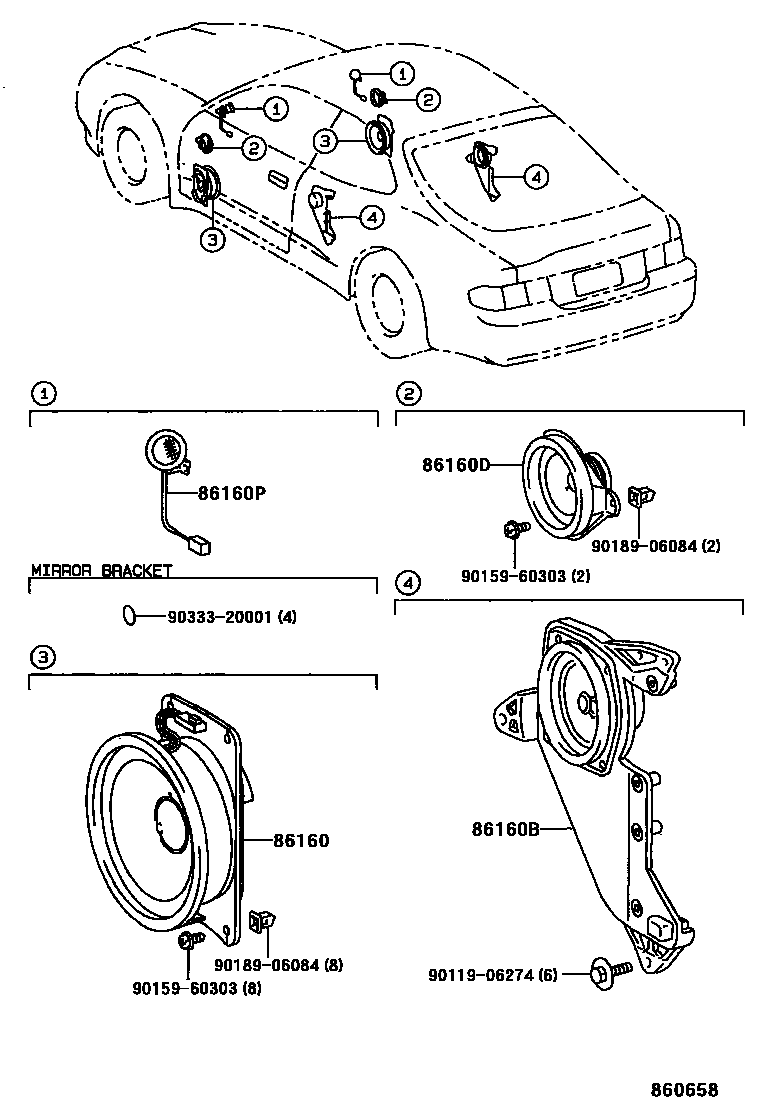

Toyota CELICA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-2B150×2iST20#199309-199712

15W

main86160-2B160×2iST20#199309-199712

25W

86160BSPEAKER ASSY, REAR

main86160-2B210iST20#..LB199309

main86160-2B220iST20#..LB199309

main86160-2B230×2iST202..CV199408

86160DSPEAKER ASSY, STEREO COMPONENT, FRONT

main86160-2B190iST20#199309-199712

main86160-2B200iST20#199309-199712

86160PSPEAKER ASSY, FRONT NO.2

main86160-2B170iST20#199309

main86160-2B180iST20#199309

9011906274

main90119-06274

9015960303

main90159-60303

9018906084

main90189-06084

9033320001

main90333-20001

8 parts on this diagram · 1 diagram in section
