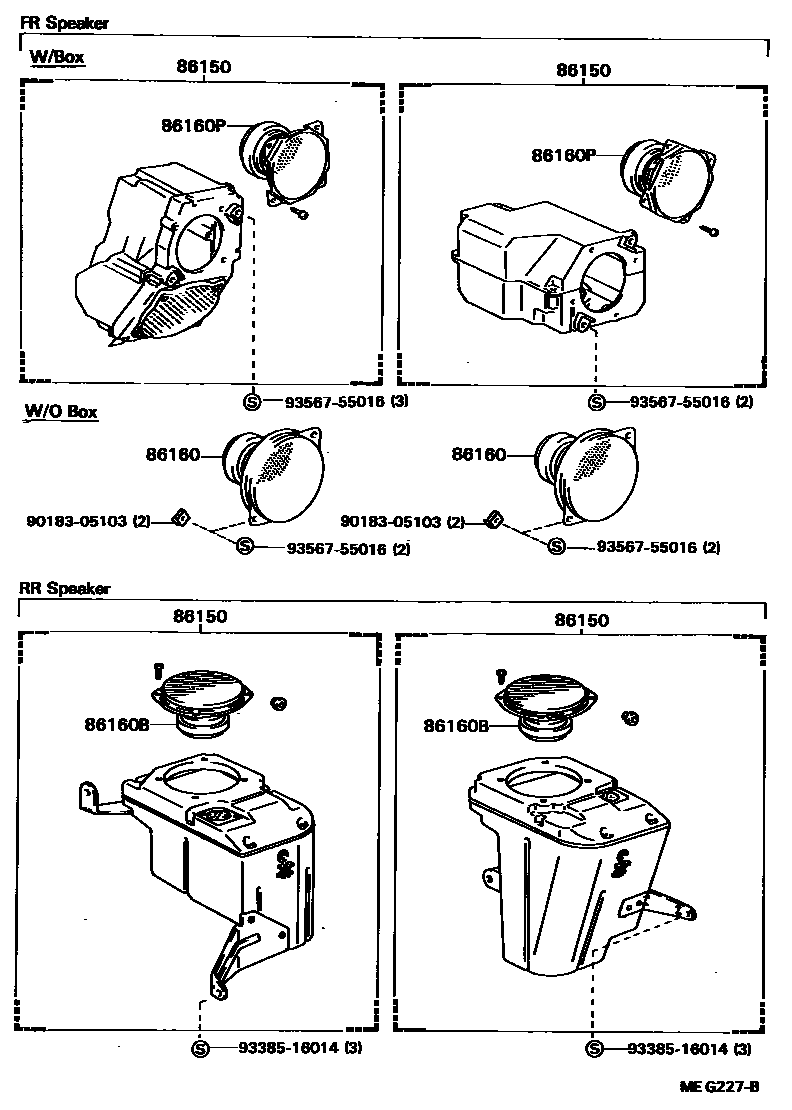

Toyota CELICA — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-20050iAT160,ST16#..GT,GT4,ST,SX198508-198708

FR,RH

main86150-20060iAT160,ST16#..GT,GT4,ST,SX198508-198708

FR,LH

main86150-20090iAT160,ST16#..GT,GT4,ST,SX198508-198708

RR,RH

sub86150-20091

main86150-20100iAT160,ST16#..GT,GT4,ST,SX198508-198708

RR,LH

sub86150-20101

86160SPEAKER ASSY, FRONT NO.1

main86160-20240×2iAT160,ST16#..GT,ST,SV198508-198601

86160BSPEAKER ASSY, REAR

main86160-20300×2iAT160,ST16#..GT,GT4,ST,SX198508-198708

86160PSPEAKER ASSY, FRONT NO.2

main86160-20280×2iAT160,ST16#..GT,GT4,ST,SX198508-198708

9018305103

main90183-05103

9338516014

main93385-16014

9356755016

main93567-55016

7 parts on this diagram · 1 diagram in section
