Toyota CELICA — SIDE MOULDING

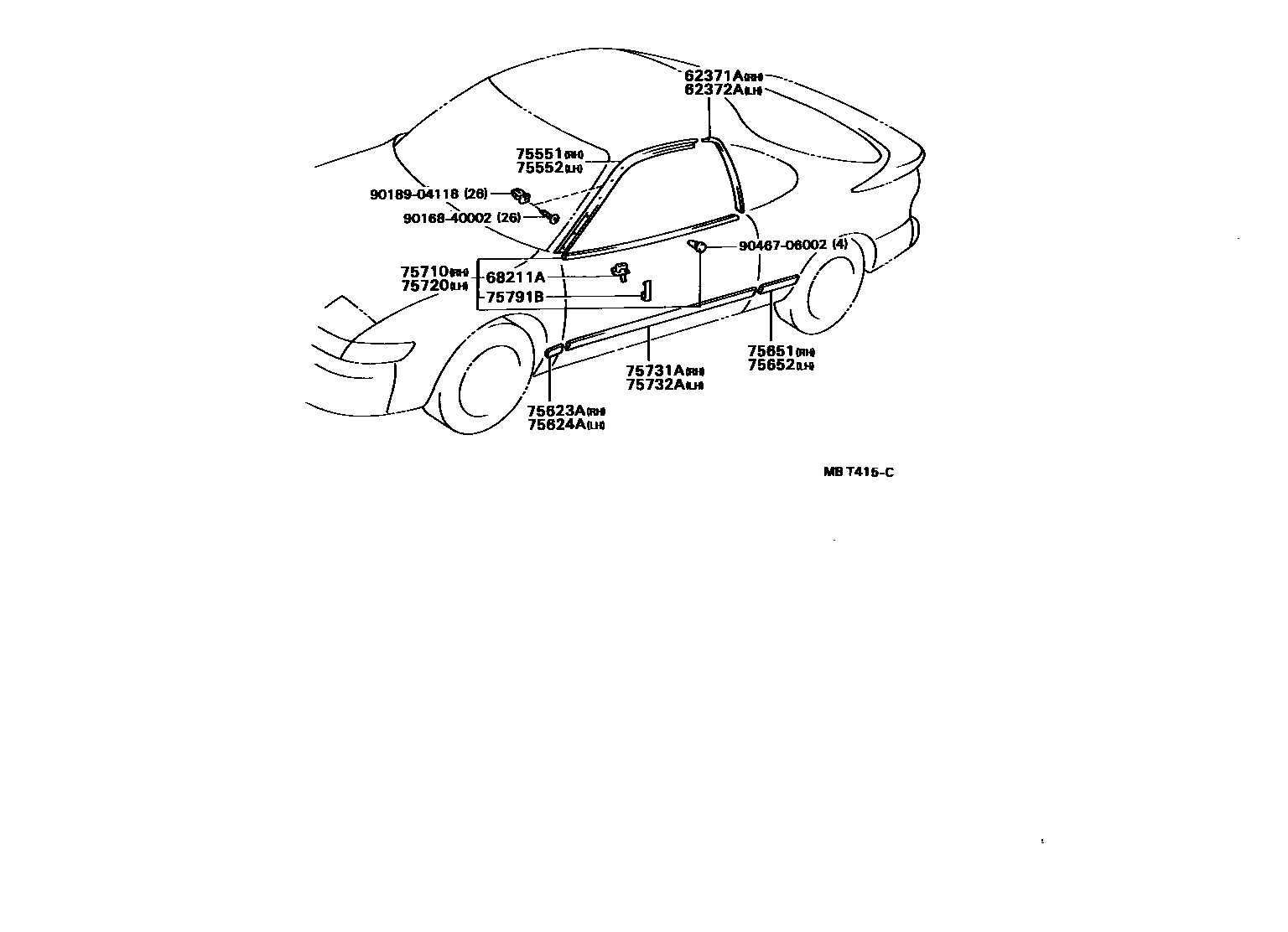

Parts diagram
62371ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH
main62371-20050i198909-199309
62372ARETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH
main62372-20050i198909-199309
68211ACLIP, DOOR BELT MOULDING
main68211-20080×12i198909-199309
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-20400i198909-199309
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-20400i198909-199309
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-20280i198909-199108
main75623-20321-01i199108-199309
BLACK,202
main75623-20321-08i199108-199309
SUPER WHITE 2,040
main75623-20321-11i199008-199108
BLACK,TRIM1#&040 ,182 ,3E5 ,3H4 ,6K8
main75623-20321-12i199108-199309
SUPER RED 2,3E5
main75623-20321-13i199108-199309
BLUEISH GRAY M,182
main75623-20321-F0i199108-199202
GREENISH YELLOW M.M,569
main75623-20321-H0i199108-199309
MEDIUM TURQUOISE M,749
main75623-20340-A0i199109-199309
SUPER WHITE 2,040
main75623-20340-B0i199108-199309
BLUISH GRAY M,182
main75623-20340-C0i199109-199309
BLACK,202
main75623-20340-D0i199109-199309
SUPPER RED 2,3E5
main75623-20340-F0i199108-199202
GREENISH YELLOW M.M,569
main75623-20340-H0i199108-199309
MEDIUM TURQUOISE M,749
main75623-20340-J0i199209-199309
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-20311-01i199108-199309
BLACK,202
main75624-20311-08i199108-199309
SUPER WHITE 2,040
main75624-20311-11i199008-199108
BLACK,TRIM1#&040 ,182 ,3E5 ,3H4 ,6K8
main75624-20311-12i199108-199309
SUPER RED 2,3E5
main75624-20311-13i199108-199309
BLUISH GRAY M,182
main75624-20311-F0i199108-199202
GREENISH YEROW M.M,569
main75624-20311-H0i199108-199309
MEDIUM TURQUOISE M,749
main75624-20320i198909-199108
main75624-20340-A0i199108-199109
SUPER WHITE 2,040
main75624-20340-B0i199108-199309
BLUISH GRAY M,182
main75624-20340-C0i199109-199309
BLACK,202
main75624-20340-D0i199108-199109
SUPER RED 2,3E5
main75624-20340-F0i199108-199202
GREENISH YELLOW M.M,569
main75624-20340-H0i199108-199309
MEDIUM TURQUOISE M,749
main75624-20340-J0i199209-199309
75651MOULDING, QUARTER, OUTSIDE RH
main75651-20390i198909-199108
main75651-20420-A0i199109-199309
SUPER WHITE 2,040
main75651-20420-B0i199108-199309
BLUISH GRAY M,182
main75651-20420-C0i199108-199109
BLACK,202
main75651-20420-D0i199108-199109
SUPER RED 2,3E5
main75651-20420-F0i199108-199202
GREENISH YELLOW M.M,569
main75651-20420-H0i199108-199309
MEDIUM TURQUOISE M,749
main75651-20420-J0i199209-199309
main75651-20430-01i199108-199309
BLACK,202
main75651-20430-08i199108-199309
SUPER WHITE 2,040
main75651-20430-11i199008-199108
BLACK,TRIM1#&040 ,182 ,3E5 ,3H4 ,6K8
main75651-20430-12i199108-199309
SUPER RED 2,3E5
main75651-20430-13i199108-199309
BLUISH GRAY M,182
main75651-20430-F0i199108-199202
GREENISH YEROW M.M,569
main75651-20430-H0i199108-199309
MEDIUM TURQUOISE M,749
75652MOULDING, QUARTER, OUTSIDE LH
main75652-20360i198909-199108
main75652-20390-A0i199109-199309
SUPER WHITE 2,040
main75652-20390-B0i199108-199309
BLUISH GRAY M,182
main75652-20390-C0i199108-199109
BLACK,202
main75652-20390-D0i199109-199309
SUPPER RED 2,3E5
main75652-20390-F0i199108-199202
GREENISH YELLOW M.M,569
main75652-20390-H0i199108-199309
MEDIUM TURQUOISE M,749
main75652-20390-J0i199209-199309
main75652-20400-01i199108-199309
BLACK,202
main75652-20400-08i199108-199309
SUPER WHITE 2,040
main75652-20400-11i199008-199108
BLACK,TRIM1#&040 ,182 ,3E5 ,3H4 ,6K8
main75652-20400-12i199108-199309
SUPER RED 2,3E5
main75652-20400-13i199108-199309
BLUISH GRAY M,182
main75652-20400-F0i199108-199202
GREENISH YEROW M.M,569
main75652-20400-H0i199108-199309
MEDIUM TURQUOISE M,749
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-20330i198909-199008
main75710-20331i199008-199309
main75710-20361i199009-199309
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-20330i198909-199008
main75720-20331i199008-199309
main75720-20361i199009-199309
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-20510i198909-199108
main75731-20540-A0i199109-199309
SUPER WHITE 2,040
main75731-20540-B0i199108-199309
BLUISH GRAY M,182
main75731-20540-C0i199108-199109
BLACK,202
main75731-20540-D0i199109-199309
SUPPER RED 2,3E5
main75731-20540-F0i199108-199202
GREENISH YELLOW M.M,569
main75731-20540-H0i199108-199309
MEDIUM TURQUOISE M,749
main75731-20540-J0i199209-199309
main75731-20551-01i199108-199309
BLACK,202
main75731-20551-08i199108-199309
SUPER WHITE 2,040
main75731-20551-11i199008-199108
BLACK,TRIM1#&040 ,182 ,3E5 ,3H4 ,6K8
main75731-20551-12i199108-199309
SUPER RED 2,3E5
main75731-20551-13i199108-199309
BLUISH GRAY M,182
main75731-20551-F0i199108-199202
GREENISH YELLOW M.M,569
main75731-20551-H0i199108-199309
MEDIUM TURQUOISE M,749
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-20510i198909-199108
main75732-20540-A0i199109-199309
SUPER WHITE 2,040
main75732-20540-B0i199108-199309
BLUISH GRAY M,182
main75732-20540-C0i199109-199309
BLACK,202
main75732-20540-D0i199109-199309
SUPER RED 2,3E5
main75732-20540-F0i199108-199202
GREENISH YELL0W M.M,569
main75732-20540-H0i199108-199309
MEDIUM TURQUOISE M,749
main75732-20540-J0i199209-199309
main75732-20551-01i199108-199309
BLACK,202
main75732-20551-08i199108-199309
SUPER WHITE 2,040
main75732-20551-11i199008-199108
BLACK,TRIM1#&040 ,182 ,3E5 ,3H4 ,6K8
main75732-20551-12i199108-199309
SUPER RED 2,3E5
main75732-20551-13i199108-199309
BLUISH GRAY M,182
main75732-20551-F0i199108-199202
GREENISH YELLOW M.M,569
main75732-20551-H0i199108-199309
MEDIUM TURQUOISE M,749
75791BCLIP, BELT MOULDING SIDE
main75791-20030×8i198909-199309
9016840002
main90168-40002
9018904118
main90189-04118
9046706002
main90467-06002

17 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota CELICA

This section contains 31 genuine Toyota parts for the SIDE MOULDING system of the Toyota CELICA. Key components include: RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR RH, RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH, INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, CLIP, DOOR BELT MOULDING, MOULDING, ROOF DRIP SIDE FINISH, RH.
