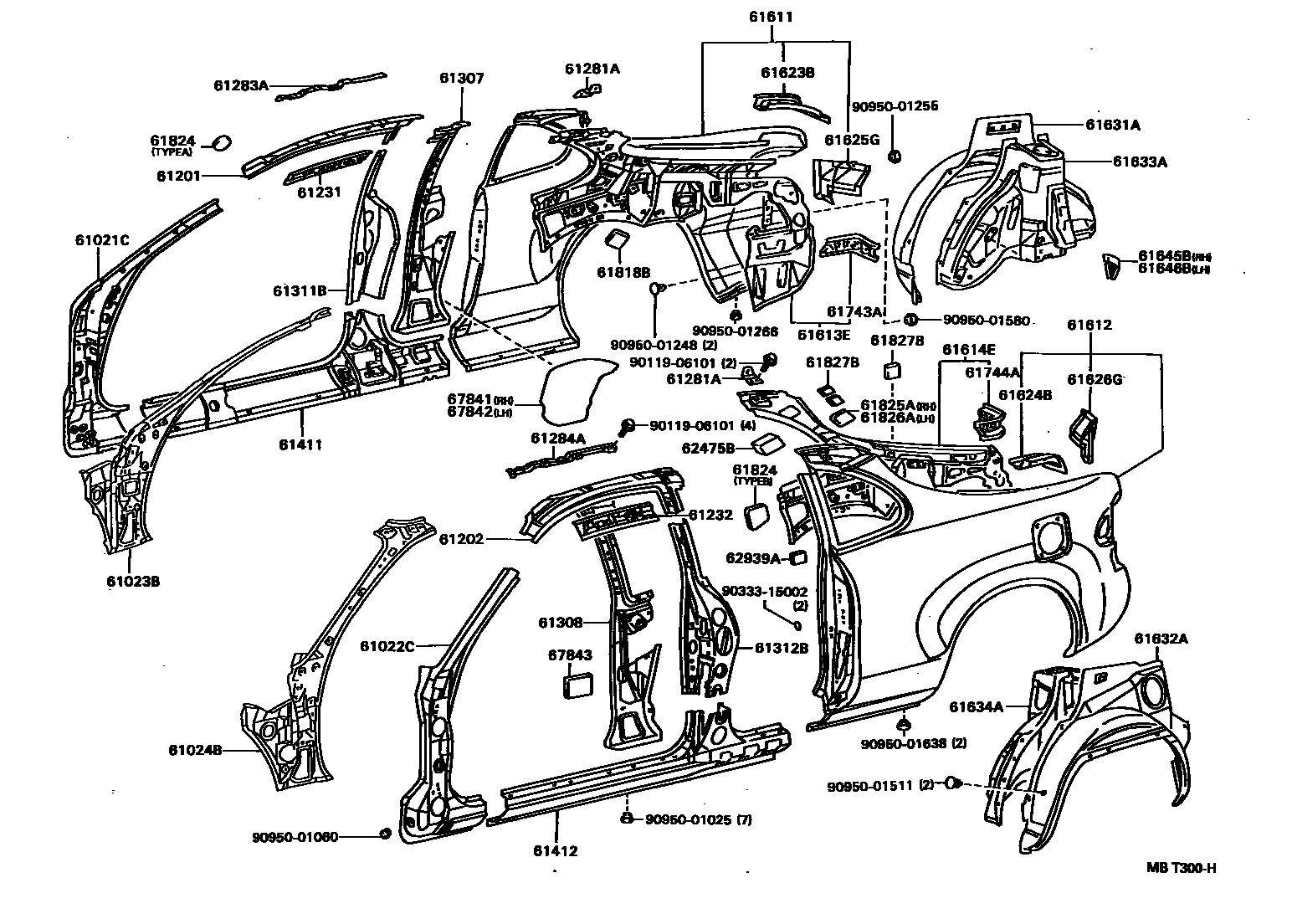

Toyota CELICA — SIDE MEMBER
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
GT-FOUR RALLY
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61623BTROUGH, BACK DOOR OPENING, REAR RH
61624BTROUGH, BACK DOOR OPENING, REAR LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61818BCOVER, ROOF SIDE, INNER LWR LH
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61827BPLATE, NOISE CONTROL, NO.4
62475BSEAL, ROOF SIDE, INNER
62939ASILENCER, QUARTER VENT
67841COVER, QUARTER SERVICE HOLE, NO.1 RH
67842COVER, QUARTER SERVICE HOLE, NO.1 LH
67843COVER, QUARTER SERVICE HOLE, NO.2
9011906101
main90119-06101
9033315002
main90333-15002
9095001025
main90950-01025
9095001060
main90950-01060
9095001248
main90950-01248
9095001255
main90950-01255
9095001266
main90950-01266
9095001511
main90950-01511
9095001580
main90950-01580
9095001638
main90950-01638
53 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota CELICA
This section contains 97 genuine Toyota parts for the SIDE MEMBER system of the Toyota CELICA. Key components include: PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, PANEL, COWL SIDE LOWER, RH.
