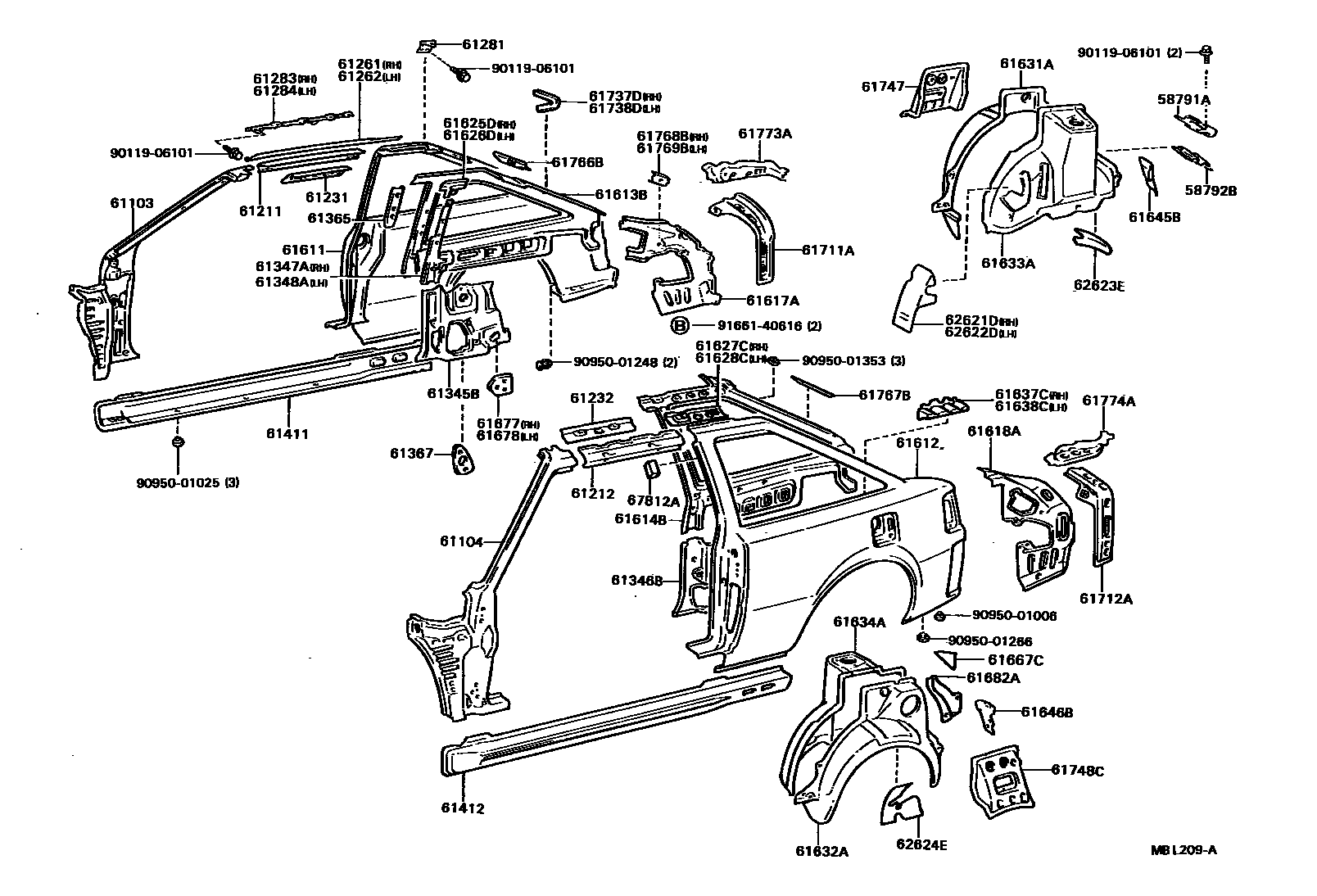

Toyota CELICA — SIDE MEMBER

58791ACARRIER, JACK

main58791-20030i198508-198708

main58791-20040i198610-198708

58792BSUPPORT, JACK CARRIER

main58792-20030i198508-198708

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-20400i198508-198708

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-20350i198508-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-20150i198508-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-20150i198508-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-20220i198508-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-20210i198508-198708

61261CHANNEL, ROOF DRIP, RH

main61261-20080i198508-198708

61262CHANNEL, ROOF DRIP, LH

main61262-20080i198508-198708

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-20030×2i198508-198708

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-20030i198508-198708

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-20030i198508-198708

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-20040i198508-198708

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-20040i198508-198708

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-20090i198508-198708

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-20090i198508-198708

61365REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR

main61365-20020×2i198508-198708

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-17010×2i198508-198708

61411PANEL, ROCKER, OUTER RH

main61401-20190i198508-198708

main61401-20200i198610-198708

61412PANEL, ROCKER, OUTER LH

main61402-20190i198508-198708

main61402-20200i198610-198708

61611PANEL, QUARTER, RH

main61601-2B190i198508-198603

W/O SPOILER

main61601-2B200i198603-198708

W/O SPOILER

main61601-2B220i198508-198603

W/SPOILER

main61601-2B230i198603-198708

W/SPOILER

main61601-2B330i198610-198708

61612PANEL, QUARTER, LH

main61602-20840i198508-198603

W/O SPOILER

main61602-2B210i198603-198708

W/O SPOILER

main61602-2B220i198508-198603

W/SPOILER

main61602-2B290i198603-198708

W/SPOILER

main61602-2B440i198610-198708

61613BPANEL, QUARTER, INNER FRONT RH

main61613-20080i198508-198708

61614BPANEL, QUARTER, INNER FRONT LH

main61614-20080i198508-198708

61617APANEL, QUARTER INNER, REAR RH

main61617-20070i198508-198708

main61617-20080i198610-198708

61618APANEL, QUARTER, INNER REAR LH

main61618-20060i198508-198708

main61618-20070i198610-198708

61625DEXTENSION, QUARTER PANEL, UPPER FRONT RH

main61625-20050i198508-198708

61626DEXTENSION, QUARTER PANEL, UPPER FRONT LH

main61626-20050i198508-198708

61627CREINFORCEMENT, QUARTER INNER PANEL, RH

main61627-20020i198610-198708

61628CREINFORCEMENT, QUARTER INNER PANEL, LH

main61628-20020i198610-198708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20180i198508-198708

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20150i198508-198708

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20090i198508-198509

main61607-20130i198508-198509

main61607-20150i198610-198708

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20110i198508-198509

main61608-20150i198508-198509

main61608-20170i198610-198708

61637CBRACE, QUARTER WHEEL HOUSE, NO.2 RH

main61637-20050i198610-198708

61638CBRACE, QUARTER WHEEL HOUSE, NO.2 LH

main61638-20040i198610-198708

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20060i198508-198708

main61645-20070i198610-198708

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20060i198508-198708

main61646-20070i198610-198708

61667CSEAL, QAURTER PANEL, NO.1

main61667-20010i198610-198708

61677REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH

main61677-20010i198508-198708

61678REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH

main61677-20010i198508-198708

61682AEXTENSION, REAR WHEEL OPENING, LH

main61682-20010i198610-198708

61711AREINFORCEMENT, ROOF SIDE, OUTER RH

main61713-20060i198508-198708

61712AREINFORCEMENT, ROOF SIDE, OUTER LH

main61714-20060i198508-198708

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-20070i198610-198708

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-20050i198610-198708

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-20070i198508-198708

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-20060i198508-198708

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-20070i198508-198708

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-20060i198508-198708

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-32010i198508-198708

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61768-32010i198508-198708

61773APATCH, BACK DOOR OPENING, LOWER RH

main61773-20020i198508-198708

61774APATCH, BACK DOOR OPENING, LOWER LH

main61774-20020i198508-198708

62621DPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main62621-20010i198610-198708

main62621-20040i198508-198708

62622DPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main62622-20010i198610-198708

main62622-20040i198508-198708

62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-20020i198610-198708

62624EPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62624-20030i198610-198708

67812APAD, QUARTER PANEL SILENCER

main67812-32010×2i198508-198708

9011906101

main90119-06101

9095001006

main90950-01006

9095001025

main90950-01025

9095001248

main90950-01248

9095001266

main90950-01266

9095001353

main90950-01353

9166140616

main91661-40616

67 parts on this diagram · 1 diagram in section

SIDE MEMBER for Toyota CELICA

This section contains 67 genuine Toyota parts for the SIDE MEMBER system of the Toyota CELICA. Key components include: CARRIER, JACK, SUPPORT, JACK CARRIER, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH, RAIL, ROOF SIDE, OUTER RH.
