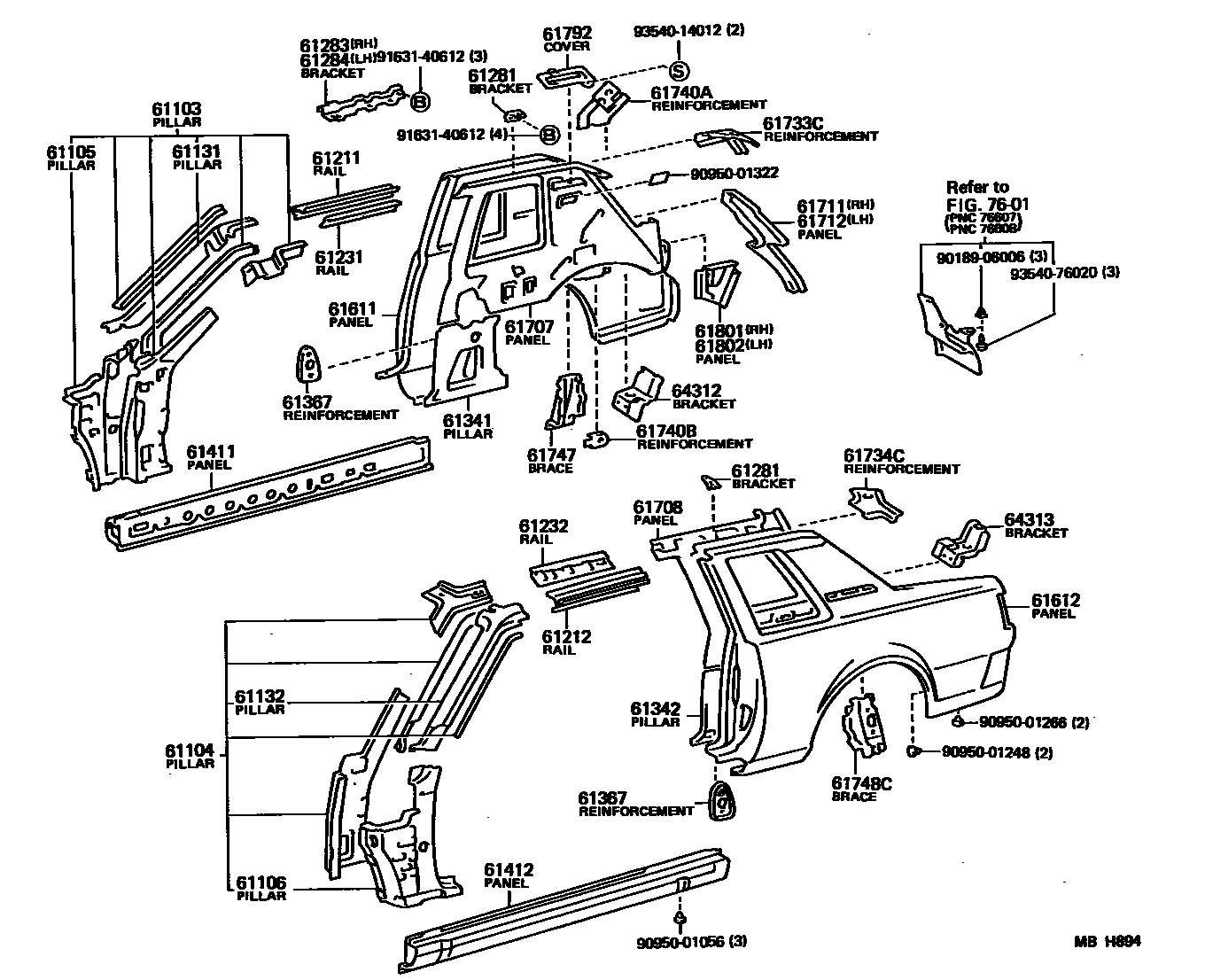

Toyota CELICA — SIDE MEMBER
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
W/SUN ROOF
61232RAIL, ROOF SIDE, INNER LH
W/SUN ROOF
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61341PILLAR, CENTER BODY, INNER LOWER RH
61342PILLAR, CENTER BODY, INNER LOWER LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
W/LID OPENER
W/LID OPENER
W/WHEEL MOULDING
W/WHEEL MOULDING
W/WHEEL MOULDING
61612PANEL, QUARTER, LH
W/WHEEL MOULDING
W/WHEEL MOULDING
W/WHEEL MOULDING
61707PANEL SUB-ASSY, QUARTER, INNER RH
61708PANEL SUB-ASSY, QUARTER, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61733CREINFORCEMENT, ROOF SIDE, INNER RH
61734CREINFORCEMENT, ROOF SIDE, INNER LH
61740AREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR
RH
LH
61740BREINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER
LWR,RH
LWR,LH
UPR
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61792COVER, ROOF SIDE INNER SERVICE HOLE
RH
LH
61801PANEL, QUARTER INSIDE, REAR RH
61802PANEL, QUARTER INSIDE, REAR LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
7601MUDGUARD & SPOILER
9018906006
main90189-06006
9095001056
main90950-01056
9095001248
main90950-01248
9095001266
main90950-01266
9095001322
main90950-01322
9163140612
main91631-40612
9354014012
main93540-14012
9354076020
main93540-76020
44 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota CELICA
This section contains 64 genuine Toyota parts for the SIDE MEMBER system of the Toyota CELICA. Key components include: BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH, BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH, PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH.
