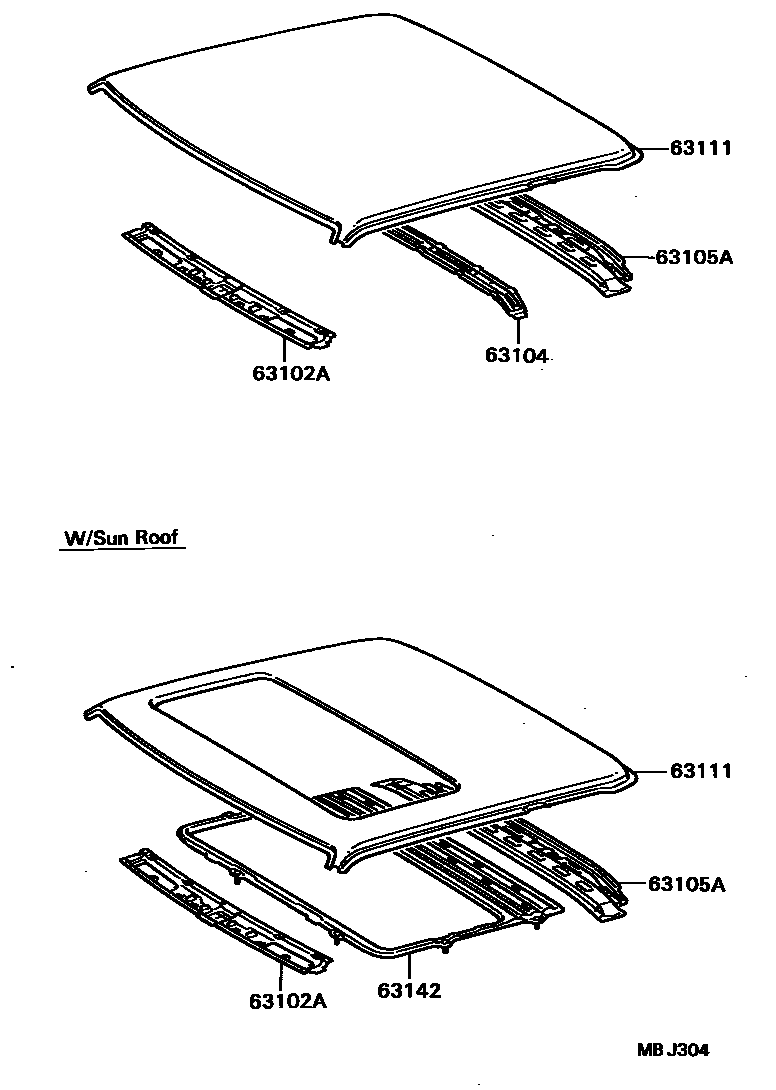

Toyota CELICA — ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20090i198508-198708

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-20060i198508-198708

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-20040i198508-198708

63111PANEL, ROOF

main63111-20240i198508-198708

W/O SUN ROOF

main63111-20250i198508-198708

W/SUN ROOF

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20040i198508-198708

5 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK WINDOW GLASS for Toyota CELICA

This section contains 37 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota CELICA. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, NO.2.
