Toyota CELICA — REAR WASHER

85345RNOZZLE, REAR WASHER

main85035-20160i198508-198708

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i198508-198708

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-20080i198508-198708

85355RVALVE, REAR WASHER HOSE

main85031-12250i198508-198708

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001i198508-198708

85372DGROMMET, REAR WASHER HOSE

main85372-14020i198508-198708

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299i198508-198510

main90099-33382i198508-198510

*H,L=1040

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080i198508-198708

8271114120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14120

8271116260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16260

8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20260

8271120660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20660

8271120690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20690

9098901093

main90989-01093

9356014010

main93560-14010

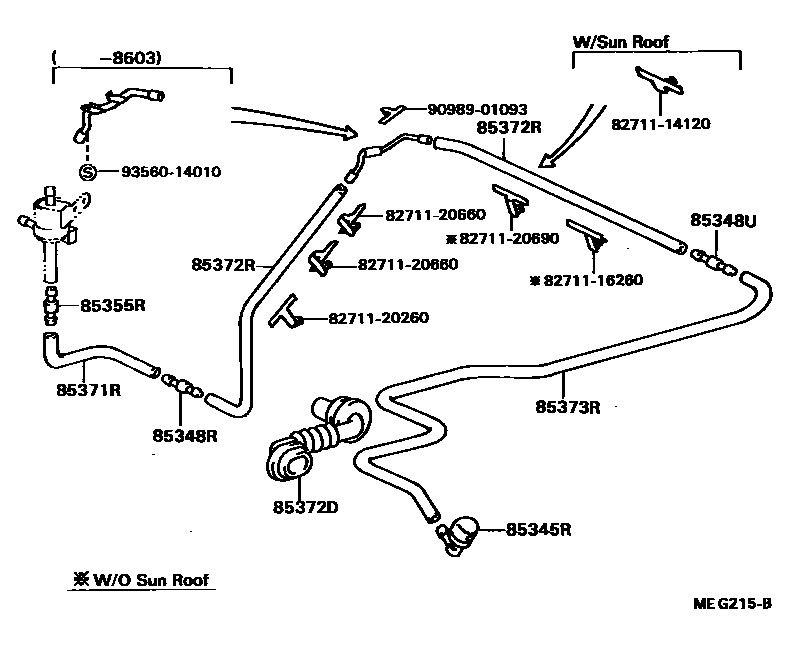

15 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota CELICA

This section contains 15 genuine Toyota parts for the REAR WASHER system of the Toyota CELICA. Key components include: NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER HOSE, NO.3, VALVE, REAR WASHER HOSE, HOSE, REAR WASHER (FROM MOTOR TO JOINT).
