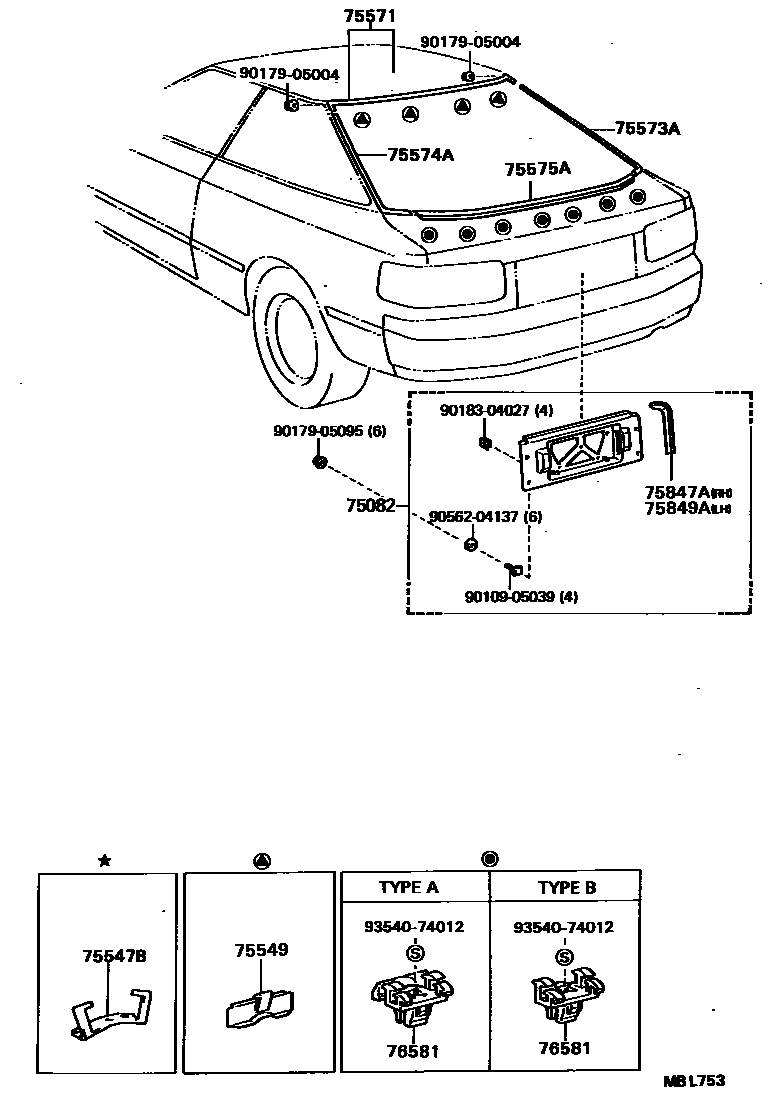

Toyota CELICA — REAR MOULDING
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
SUPER RED 2,3E5
SUPER WHITE 2,040
GRAY M,168
SILVER M,23E
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75549FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75573AMOULDING, BACK WINDOW, OUTSIDE RH
75574AMOULDING, BACK WINDOW, OUTSIDE LH
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
75847APAD, LOWER BACK PANEL MOULDING, RH
75849APAD, LOWER BACK PANEL MOULDING, LH
76581RETAINER, BACK WINDOW OUTSIDE MOULDING
9010905039
main90109-05039
9017905004
main90179-05004
9017905095
main90179-05095
9018304027
main90183-04027
9056204137
main90562-04137
9354074012
main93540-74012
16 parts on this diagram · 1 diagram in section
REAR MOULDING for Toyota CELICA
This section contains 16 genuine Toyota parts for the REAR MOULDING system of the Toyota CELICA. Key components include: PANEL SUB-ASSY, LOWER BACK FINISH, CENTER, CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3, FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2, MOULDING, BACK WINDOW, OUTSIDE UPPER, MOULDING, BACK WINDOW, OUTSIDE RH.
