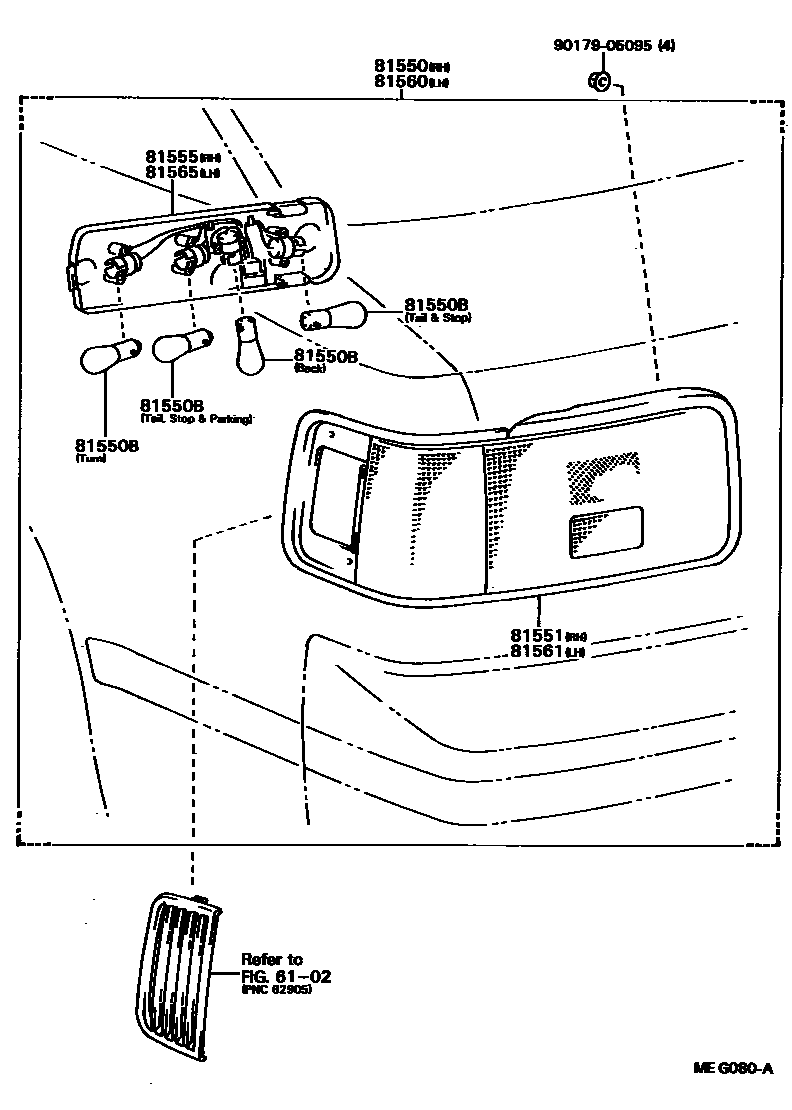

Toyota CELICA — REAR COMBINATION LAMP

6102ROOF SIDE VENTILATOR

→ Go to FIG 61-02

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20660i198508-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4i198508-198708

main99132-21210×4i198508-198708

81551LENS, REAR COMBINATION LAMP, RH

main81551-20660i198508-198708

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20660i198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20600i198508-198708

81561LENS, REAR COMBINATION LAMP, LH

main81561-20600i198508-198708

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-20600i198508-198708

9017905095

main90179-05095

9 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota CELICA

This section contains 9 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota CELICA. Key components include: ROOF SIDE VENTILATOR, LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH.
