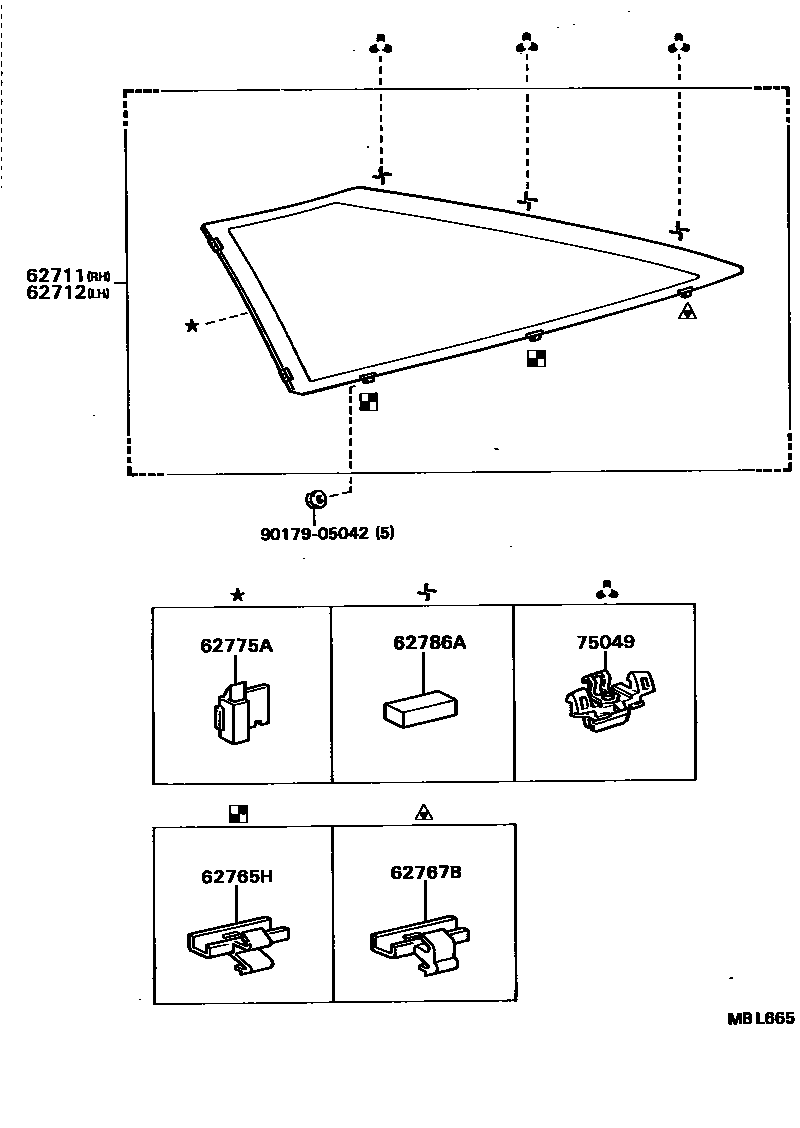

Toyota CELICA — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62710-20080i198708-198908

main62710-20100i198710-198908

main62710-20101i198908-198908

62712GLASS, QUARTER WINDOW, LH

main62720-20080i198708-198908

main62720-20100i198710-198908

main62720-20101i198908-198908

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-20040i198708-198908

62767BRETAINER, QUARTER WINDOW GLASS, REAR

main62767-20020i198708-198908

62775ACLIP, QUARTER WINDOW

main62775-20010×2i198708-198908

62786ASPACER, QUARTER WINDOW GLASS, NO.2

main62786-12010×2i198708-198908

75049CLIP SUB-ASSY, QUARTER WINDOW, NO.2

main75049-20050×6i198708-198908

9017905042

main90179-05042

8 parts on this diagram · 2 diagrams in section

QUARTER WINDOW for Toyota CELICA

This section contains 30 genuine Toyota parts for the QUARTER WINDOW system of the Toyota CELICA. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW GLASS, LOWER, RETAINER, QUARTER WINDOW GLASS, REAR, CLIP, QUARTER WINDOW.
