Toyota CELICA — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62710-20080i198508-198708

62712GLASS, QUARTER WINDOW, LH

main62720-20080i198508-198708

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-20040×4i198508-198708

62767BRETAINER, QUARTER WINDOW GLASS, REAR

main62767-20020×2i198508-198708

62775ACLIP, QUARTER WINDOW

main62775-20010×2i198508-198708

62785ASPACER, QUARTER WINDOW GLASS

main62786-12010×4i198508-198602

75049CLIP SUB-ASSY, QUARTER WINDOW, NO.2

main75049-20050×6i198508-198708

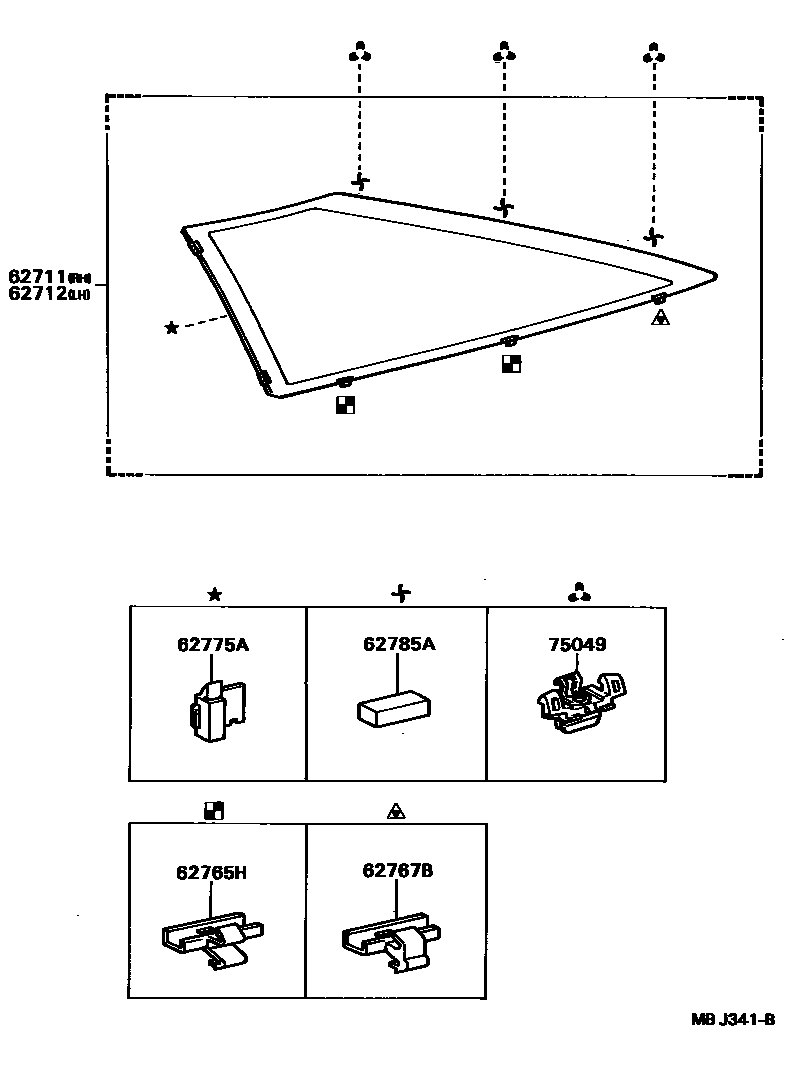

7 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota CELICA

This section contains 7 genuine Toyota parts for the QUARTER WINDOW system of the Toyota CELICA. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW GLASS, LOWER, RETAINER, QUARTER WINDOW GLASS, REAR, CLIP, QUARTER WINDOW.
