Toyota CELICA — PARTIAL ENGINE ASSEMBLY

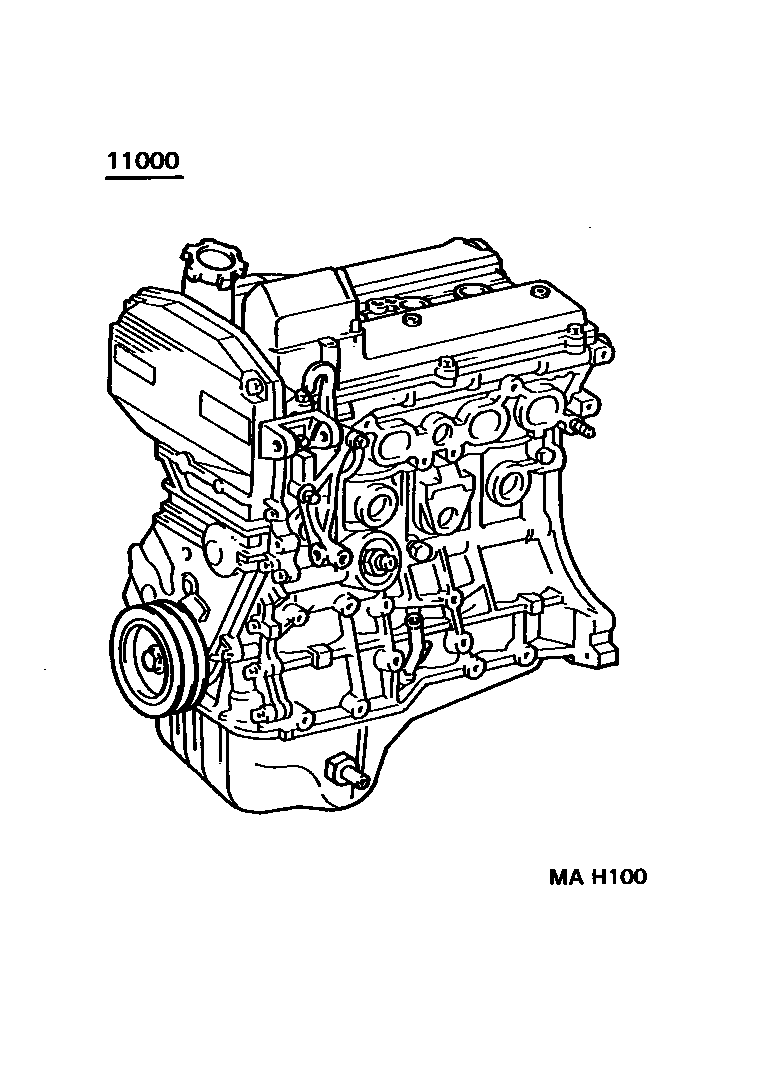

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-74680i199309-199508

main19000-74681i199508-199606

main19000-7A010i199606

main19000-88397i199309-199712

main19000-88398i199309-199712

main19000-88507i199402

main19000-88607i199712

1 parts on this diagram · 1 diagram in section
