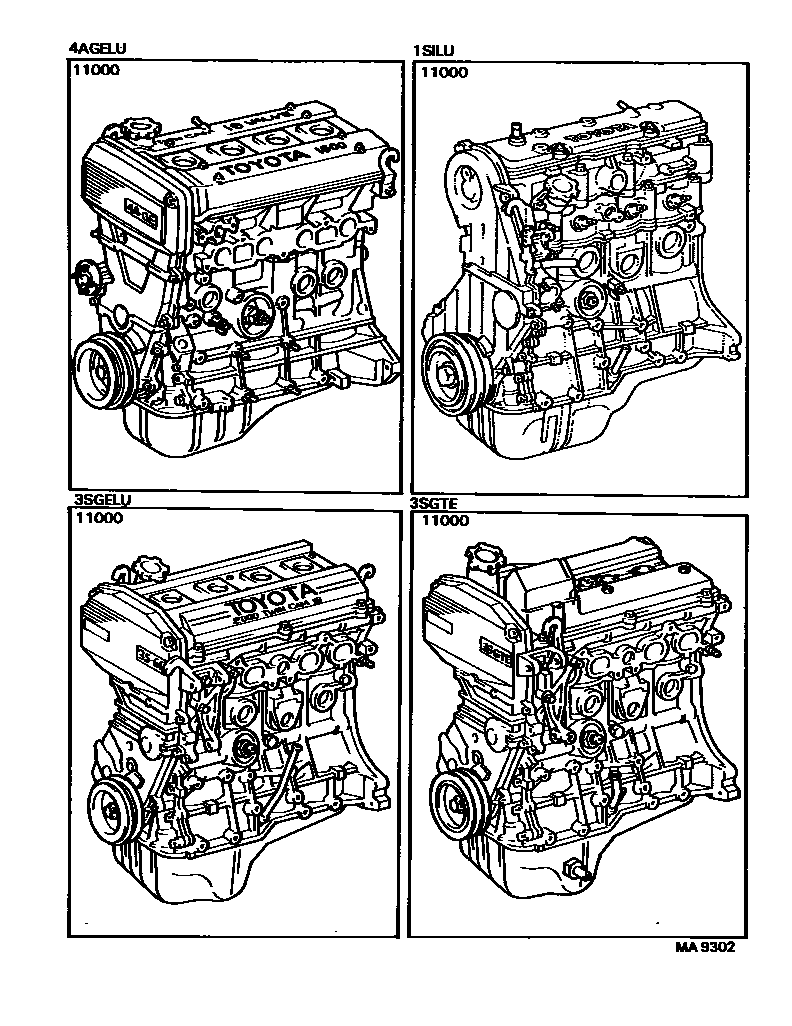

Toyota CELICA — PARTIAL ENGINE ASSEMBLY
11000
ENGINE ASSY, PARTIAL
main
19000-16220
i
4AGELU..AT160
198508-198708
sub
19000-16221
main
19000-63090
i
1SILU..ST160
198508-198607
main
19000-63091
i
1SILU..ST160
198607-198708
main
19000-88360
i
3SGELU..ST162
198508-198708
sub
19000-88364
sub
16268-74040
main
19000-88380
i
3SGTE..ST165
198610-198708
sub
19000-88387
1 parts on this diagram · 1 diagram in section
