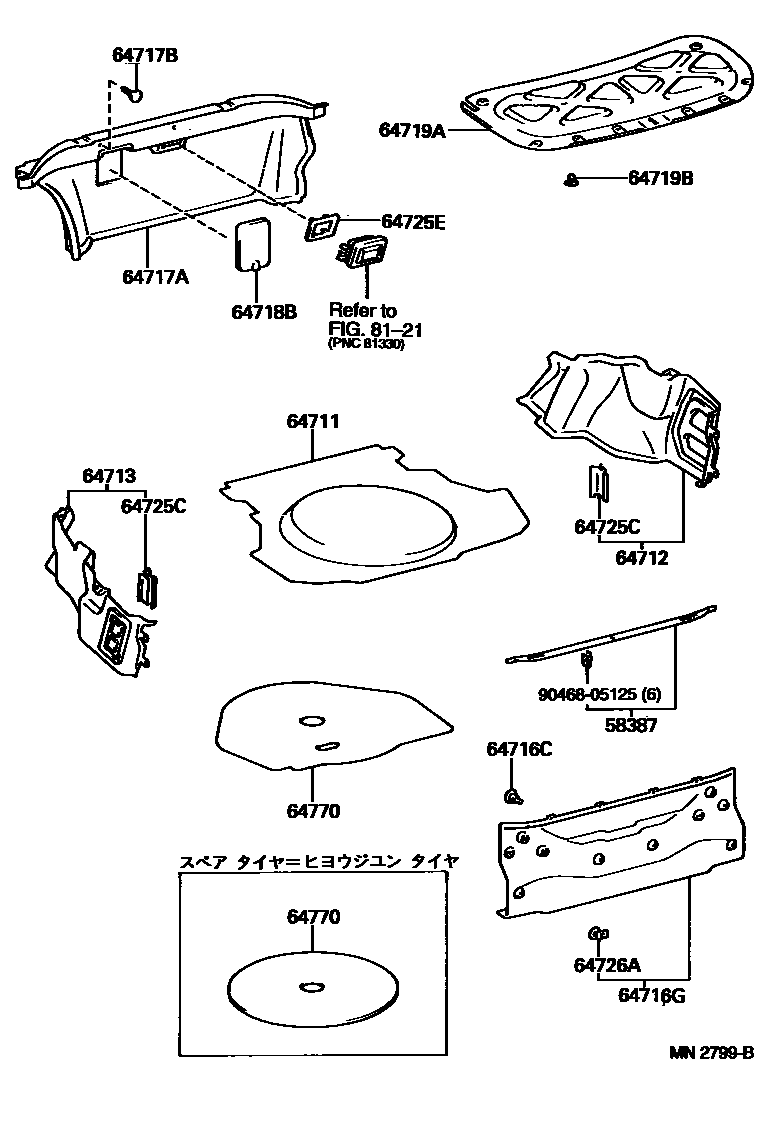

Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20050-C0i199408

BLACK,TRIM2#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-2B020-C0i199408

main64711-2B030-C0i199408-199512

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20210-C0i199408

BLACK,TRIM2#

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20210-C0i199408

BLACK,TRIM2#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07146×8i199408

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20510-C0i199408

BLACK,TRIM2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-0W010i199408

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main02860-86101×3i199408

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-0W010i199408

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20060-C0i199408

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07146×13i199408

64725CRETAINER, LUGGAGE COMPARTMENT COVER

main64725-20050-C1×2i199408

BLACK,TRIM2#

64725ERETAINER, LUGGAGE COMPARTMENT COVER

main64725-0W010i199408

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-C0×6i199408

BLACK,TRIM2#

64770COVER ASSY, SPARE WHEEL

main64770-20230i199408

main64770-20240i199408-199512

8121INTERIOR LAMP

→ Go to FIG 81-21

9046805125

main90468-05125

17 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA

This section contains 17 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: PLATE, REAR FLOOR FINISH, MAT, LUGGAGE COMPARTMENT FLOOR, COVER, LUGGAGE COMPARTMENT TRIM, RH, COVER, LUGGAGE COMPARTMENT TRIM, LH, CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER).
