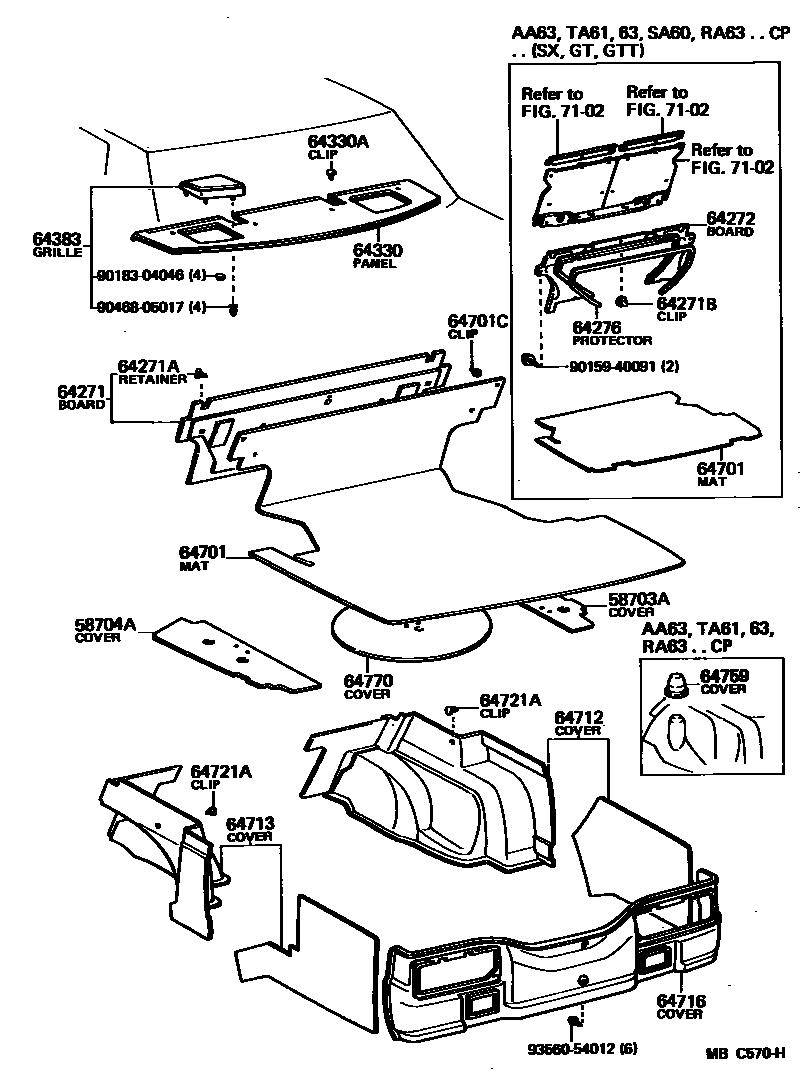

Toyota CELICA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64271BOARD, ROOM PARTITION, NO.1
64271ARETAINER, ROOM PARTITION BOARD
64271BCLIP(FOR ROOM PARTITION BOARD)
*SPS,BLACK,BLACK,TRIM2#; BLACK,BLACK,TRIM2#
*SPS,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
64272BOARD, ROOM PARTITION, NO.2
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
*SPS,BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
64276PROTECTOR, ROOM PARTITION DOOR OPENING
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
*SPS,BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
W/SPEAKER HOLE,BLACK,BLACK,TRIM2#
W/SPEAKER HOLE,DARK BROWN,BROWN,TRIM4#
W/SPEAKER HOLE,BLACK,BLACK,TRIM2#
W/SPEAKER HOLE,DARK BROWN,BROWN,TRIM4#
W/SPEAKER HOLE,*SPS,BLACK,BLACK,TRIM2#; W/SPEAKER HOLE,BLACK,BLACK,TRIM2#
W/SPEAKER HOLE,*SPS,BLUE,BLUE,TRIM8#; W/SPEAKER HOLE,BLUE,BLUE,TRIM8#
W/SPEAKER HOLE,*SPS,DARK BROWN,BROWN,TRIM4#; W/SPEAKER HOLE,DARK BROWN,BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK BROWN,BROWN,TRIM4#
64383GRILLE, SPEAKER, REAR
RH,*SPS,BLACK,BLACK,TRIM2#; RH,BLACK,BLACK,TRIM2#
RH,DARK BROWN,BROWN,TRIM4#
RH,*SPS,BLUE,BLUE,TRIM8#; RH,BLUE,BLUE,TRIM8#
RH,*SPS,DARK BROWN,BROWN,TRIM4#; RH,DARK BROWN,BROWN,TRIM4#
RH,DARK BROWN,BROWN,TRIM4#
LH,*SPS,BLACK,BLACK,TRIM2#; LH,BLACK,BLACK,TRIM2#
LH,DARK BROWN,BROWN,TRIM4#
LH,*SPS,BLUE,BLUE,TRIM8#; LH,BLUE,BLUE,TRIM8#
LH,*SPS,DARK BROWN,BROWN,TRIM4#; LH,DARK BROWN,BROWN,TRIM4#
LH,DARK BROWN,BROWN,TRIM4#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
GT-R,GT-TR PACKAGE
64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)
GRAY,GRAY
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
GT-R,GT-TR PACKAGE
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
GT-R,GT-TR PACKAGE
GRAY,GRAY; GT-R,GT-TR PACKAGE,GRAY,GRAY
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
GRAY,GRAY
64759COVER, SHOCK ABSORBER HEAD
64770COVER ASSY, SPARE WHEEL
7102REAR SEAT & SEAT TRACK
9015940091
main90159-40091
9018304046
main90183-04046
9046805017
main90468-05017
9356054012
main93560-54012
23 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CELICA
This section contains 23 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CELICA. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, BOARD, ROOM PARTITION, NO.1, RETAINER, ROOM PARTITION BOARD, CLIP(FOR ROOM PARTITION BOARD).
