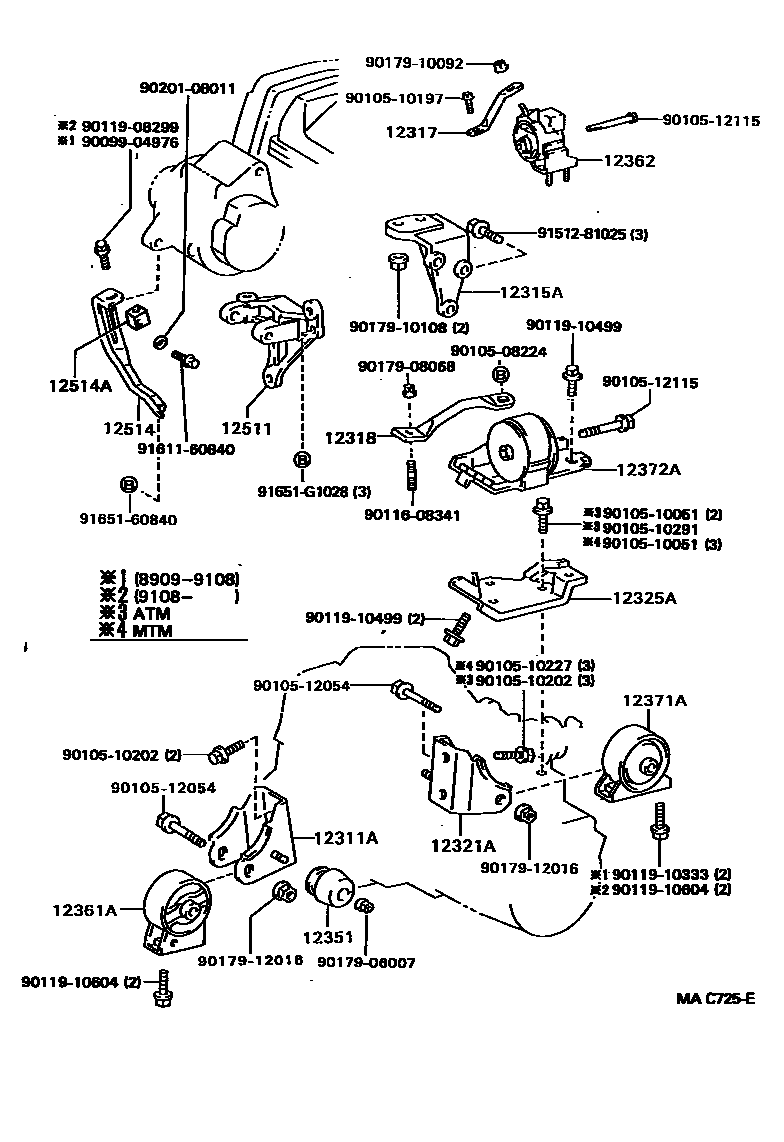

Toyota CELICA — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12317STAY, ENGINE MOUNTING, RH
12318STAY, ENGINE MOUNTING, LH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
12514BAR, ALTERNATOR BELT ADJUSTING
12514ASLIDER, FAN BELT ADJUSTING
9009904976
main90099-04976
9010508224
main90105-08224
9010510051
main90105-10051
9010510197
main90105-10197
9010510202
main90105-10202
9010510227
main90105-10227
9010510291
main90105-10291
9010512054
main90105-12054
9010512115
main90105-12115
9011608341
main90116-08341
9011908299
main90119-08299
9011910333
main90119-10333
9011910499
main90119-10499
9011910604
main90119-10604
9017906007
main90179-06007
9017908068
main90179-08068
9017910092
main90179-10092
9017910108
main90179-10108
9017912016
main90179-12016
9020108011
main90201-08011
9151281025
main91512-81025
9161160840
main91611-60840
9165160840
main91651-60840
91651G1028
main91651-G1028
38 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota CELICA
This section contains 58 genuine Toyota parts for the MOUNTING system of the Toyota CELICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, RH, STAY, ENGINE MOUNTING, LH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
