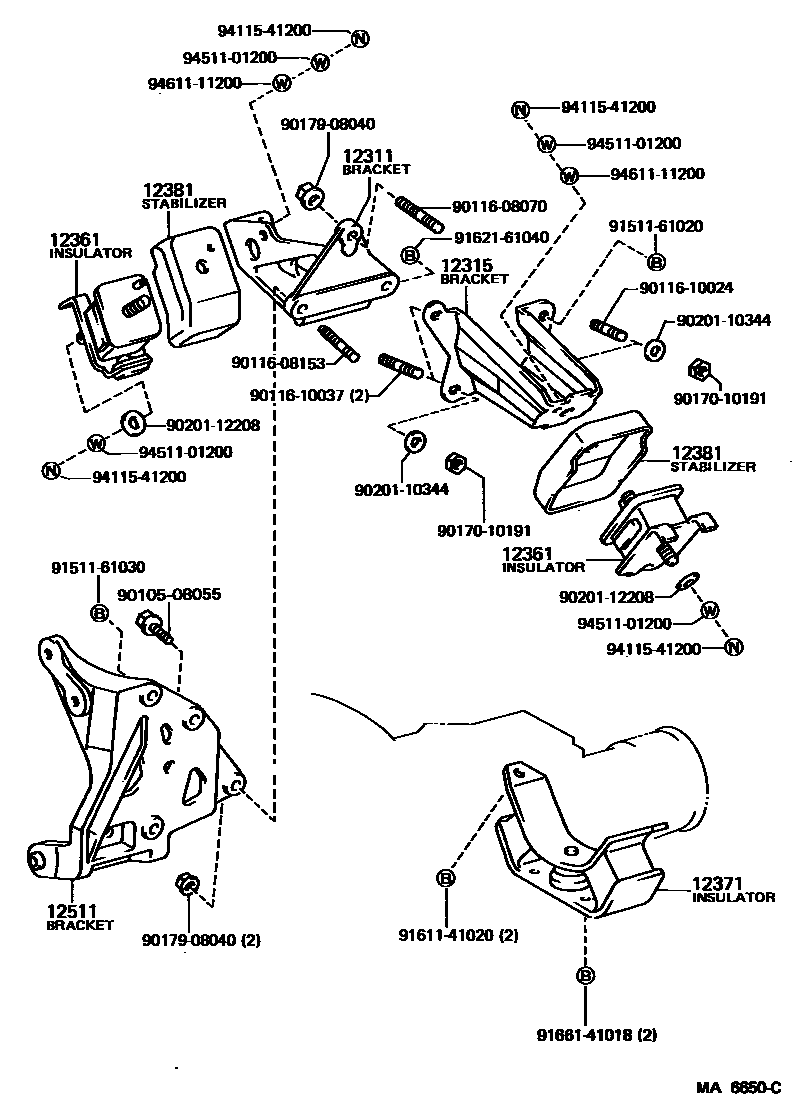

Toyota CELICA — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
MARUYASU,TOKAIGOMU
TOYOGOMU
TOYOTA GOSEI
RH
TOYO
MARUYASU
LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
MARUYASU,TOKAIGOMU
TOYOGOMU
TOYOTA GOSEI
TOYO
MARUYASU
12511BRACKET, ALTERNATOR, NO.1
9010508055
main90105-08055
9011608070
main90116-08070
9011608153
main90116-08153
9011610024
main90116-10024
9011610037
main90116-10037
9017010191
main90170-10191
9017908040
main90179-08040
9020110344
main90201-10344
9020112208
main90201-12208
9151161020
main91511-61020
9151161030
main91511-61030
9161141020
main91611-41020
9162161040
main91621-61040
9166141018
main91661-41018
9411541200
main94115-41200
9451101200
main94511-01200
9461111200
main94611-11200
23 parts on this diagram · 10 diagrams in section
MOUNTING for Toyota CELICA
This section contains 59 genuine Toyota parts for the MOUNTING system of the Toyota CELICA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
