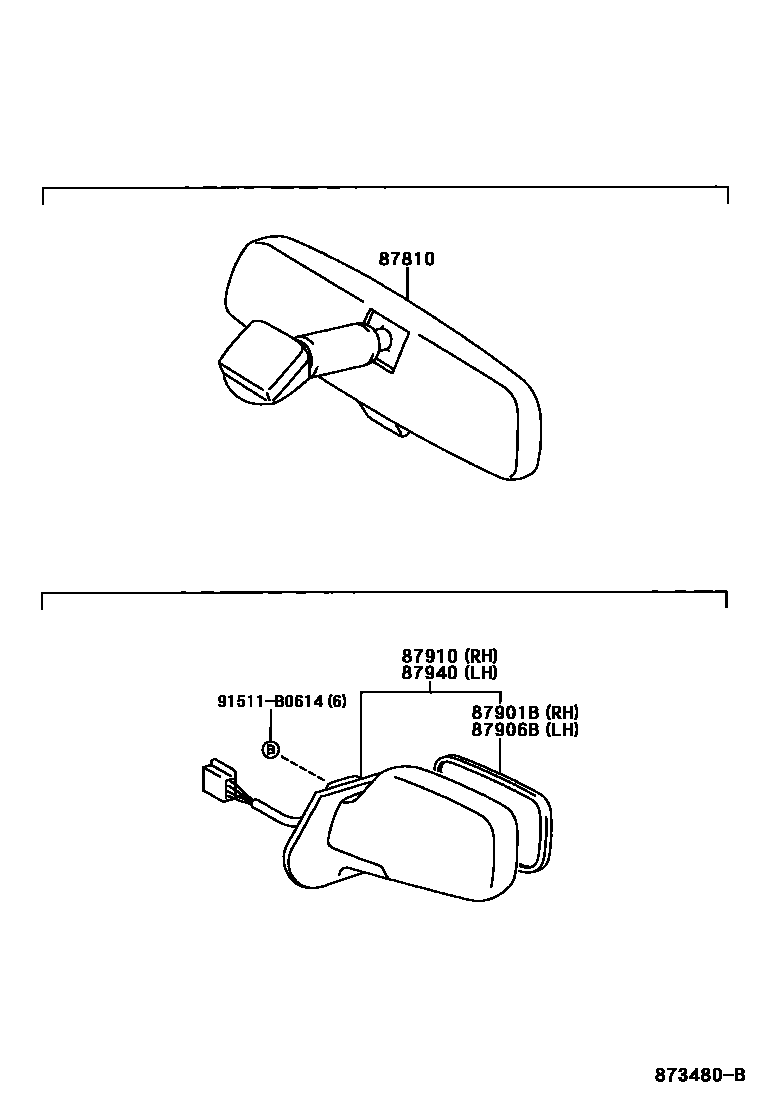

Toyota CELICA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i199908-200208

main87810-52040i200208-200604

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2B470i200208

main87931-2D100i200208

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2D210i200208

main87961-2D220i200208

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B470-A0i200208

SUPER WHITE 2,040

main87910-2B470-B0i199908-200208

SILVER ME.,1D0

main87910-2B470-B1i200208

GRAY ME.,1D2

main87910-2B470-B2i200208

SILVER M.M.,1E7

main87910-2B470-C0i200208

BLACK,202

main87910-2B470-C1i199908-200208

BLACK MC.CC.,210

main87910-2B470-D0i200208

SUPER RED 5,3P0

main87910-2B470-F0i199908-200208

SUPER BRIGHT YELLOW,576

main87910-2B470-J0i200208

BLUE MC.,8M6

main87910-2D100-A0i199908-200208

SUPER WHITE 2,040

main87910-2D100-B0i199908-200208

SILVER ME.,1D0

main87910-2D100-B2i200208

GRAY ME.,1D2

main87910-2D100-B3i200208

SILVER M.M.,1E7

main87910-2D100-C0i200208

BLACK,202

main87910-2D100-C1i200208

BLACK MC.CC.,210

main87910-2D100-D0i199908-200208

SUPER RED 5,3P0

main87910-2D100-F0i199908-200208

SUPER BRIGHT YELLOW,576

main87910-2D100-J0i200208

BLUE MC.,8M6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2D210-A0i199908-200208

SUPER WHITE 2,040

main87940-2D210-B0i199908-200208

SILVER ME.,1D0

main87940-2D210-B1i200208

GRAY ME.,1D2

main87940-2D210-B2i200208

SILVER M.M.,1E7

main87940-2D210-C0i199908-200208

BLACK,202

main87940-2D210-C1i200208

BLACK MC.CC.,210

main87940-2D210-D0i200208

SUPER RED 5,3P0

main87940-2D210-F0i200208

SUPER BRIGHT YELLOW,576

main87940-2D210-J0i200208

BLUE MC.,8M6

main87940-2D220-A0i199908-200208

SUPER WHITE 2,040

main87940-2D220-B0i199908-200208

SILVER ME.,1D0

main87940-2D220-B2i200208

GRAY ME.,1D2

main87940-2D220-B3i200208

SILVER M.M.,1E7

main87940-2D220-C0i199908-200208

BLACK,202

main87940-2D220-C1i199908-200208

BLACK MC.CC.,210

main87940-2D220-D0i199908-200208

SUPER RED 5,3P0

main87940-2D220-F0i200208

SUPER BRIGHT YELLOW,576

main87940-2D220-J0i200002-200207

91511B0614

main91511-B0614

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota CELICA

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
