Toyota CELICA — MIRROR
7910CONVERTIBLE PARTS
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LT.GRAY,TRIM2#
GRAY,TRIM2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DK GREEN MICA,6M1
LT.GREEN ME.,6R0
BLUE M.M.,8L5
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
SUPER BRIGHT YELLOW,576
DEEP TEAL ME,752
GRAISH TURQUOISE M.M,753
87910FMIRROR ASSY, FENDER, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
DK GREEN MICA,6M1
LT.GREEN ME.,6R0
BLUE M.M.,8L5
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 4,3L2
SUPER BRIGHT YELLOW,576
DEEP TEAL ME,752
GRAISH TURQUOISE M.M,753
87940FMIRROR ASSY, FENDER, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9010506216
main90105-06216
9014950059
main90149-50059
9015960493
main90159-60493
9017906097
main90179-06097

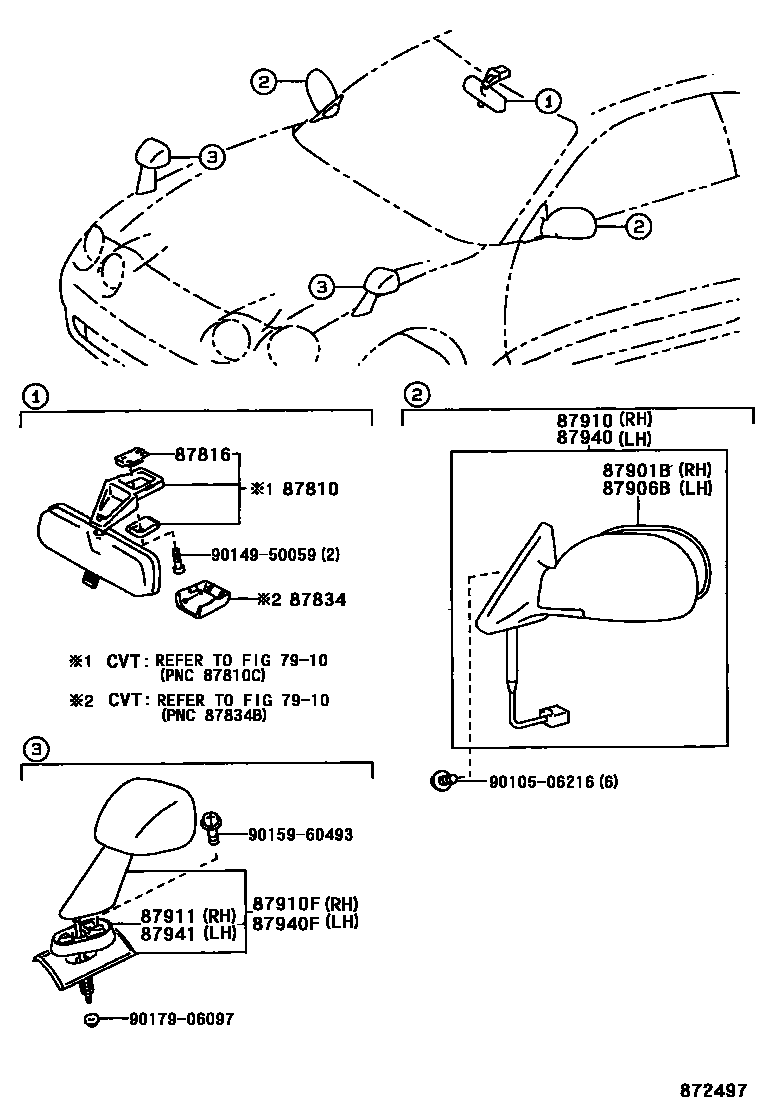

16 parts on this diagram · 1 diagram in section
MIRROR for Toyota CELICA
This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: CONVERTIBLE PARTS, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
