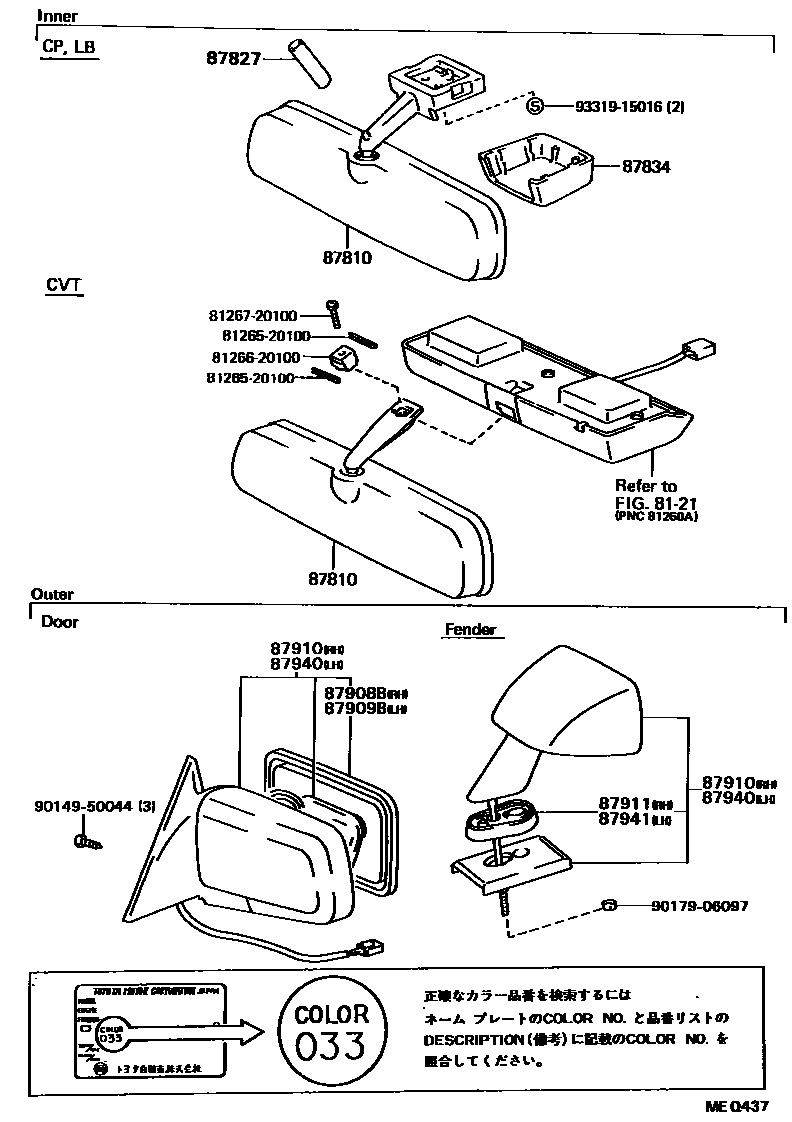

Toyota CELICA — MIRROR
8121INTERIOR LAMP
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM2#
BLUE,TRIM8#
BLACK,TRIM2#
87827ABSORBER, INNER REAR VIEW MIRROR
L=32
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
DEEP BLUE,TRIM8#
SHADOW GRAY,TRIM2#
87908BMIRROR SUB-ASSY, RH
87909BMIRROR SUB-ASSY, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER RED,3E5,COLORED
SUPER WHITE,040,COLORED
RED MAICA,3H4,COLORED
GRAY M,168 ,23E,COLORED
BLACK,202,COLORED
SUPER RED,3E5,COLORED
GRAY METALLIC,168 ,23E,COLORED
SUPER WHITE,040,COLORED
RED MICA,3H4,COLORED
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER RED,3E5,COLORED
SUPER WHITE,040,COLORED
RED MAICA,3H4,COLORED
GRAY M,168 ,23E,COLORED
BLACK,202,COLORED
SUPER RED,3E5,COLORED
GRAY,METALLIC,168 ,23E,COLORED
SUPER WHITE,040,COLORED
RED MICA,3H4,COLORED
87941GASKET, OUTER REAR VIEW MIRROR, LH
8126520100SOCKET & WIRE, MAP LAMP
main81265-20100
8126620100
main81266-20100
8126720100
main81267-20100
9014950044
main90149-50044
9017906097
main90179-06097
9331915016
main93319-15016
16 parts on this diagram · 1 diagram in section
MIRROR for Toyota CELICA
This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: INTERIOR LAMP, MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH.
