Toyota CELICA — MIRROR

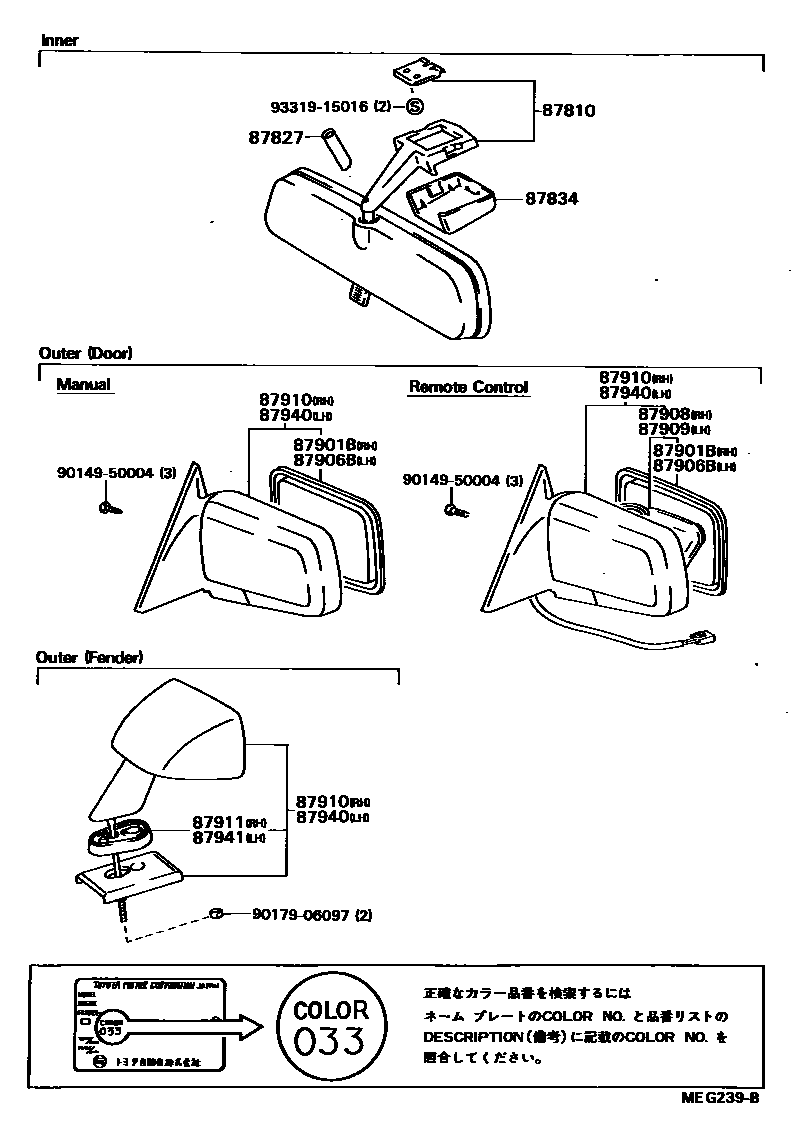

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-20200-03i198508-198708
GRAY,GRAY,TRIM1#
main87810-20200-04i198508-198708
BLUE,BLUE,TRIM8#
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-22020i198508-198708
L=34.5
main87828-87002i198704-198708
L=32
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-34i198508-198708
BLUE,DEEP BLUE,TRIM8#
main87834-20080-53i198508-198708
GRAY,SHADOW GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87908-20040i198508-198708
main87931-20400i198508-198708
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87909-20040i198508-198708
main87961-20420i198511-198708
main87961-20580i198508-198511
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-20400i198508-198708
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-20420i198508-198708
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-20390i198508-198606
DOOR
main87910-20391i198606-198708
main87910-20400i198605-198606
DOOR,BLACK(162,3E3,8D7)
main87910-20400i198508-198605
DOOR
main87910-20401i198606-198708
DOOR,BLACK(162,3E3,8D7)
main87910-20710i198508-198708
FENDER
main87910-20790-02i198605-198708
DOOR,SUPER RED,SUPER RED,3E5
main87910-20790-08i198605-198708
DOOR,SUPER WHITE,SUPER WHITE,040
main87910-20790-13i198610-198708
DOOR,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,159
main87910-20790-33i198605-198708
DOOR,BLUISH GRAY-M,BLUISH GRAY METALLIC,2Z3
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-20140i198508-198708
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-20410i198508-198606
DOOR
main87940-20420i198508-198605
DOOR
main87940-20420i198605-198708
DOOR,BLACK(162,3E3,8D7)
main87940-20770i198508-198708
FENDER
main87940-20850-02i198605-198708
DOOR,SUPER RED,SUPER RED,3E5
main87940-20850-08i198605-198708
DOOR,SUPER WHITE,SUPER WHITE,040
main87940-20850-13i198610-198708
DOOR,MEDIUM GRAY-M,MEDIUM GRAY METALLIC
main87940-20850-33i198605-198708
DOOR,BLUISH GRAY-M,BLUISH GRAY METALLIC,2Z3
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-20160i198508-198708
9014950004
main90149-50004
9017906097
main90179-06097
9331915016
main93319-15016

14 parts on this diagram · 1 diagram in section

MIRROR for Toyota CELICA

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota CELICA. Key components include: MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
